Migrating Kubernetes volumes to Longhorn

Migrating NFS volumes to the NFS CSI driver was an easy step forward preparing the single-node Kubernetes cluster to be upgraded to an Active-Active High Availability cluster. The next step in that direction is to migrate volumes currently implemented (the lazy way) with hostPath pointed to local NVMe SSD storage to a distributed file system, while still leveraging the SSDs speed as high-availability distributed volumes replicated across every node's local NVMe SSDs.

Motivation

While NFS volumes are the best choice for bulk data (media, backups, etc.) these are too slow for mission-critical configuration files and databases. Longhorn is better for these because it can mirror data across all nodes, if one fails the pod instantly restarts on another node with its data intact, and whenever adding a new node Longhorn automatically rebalances replicas to utilize the new storage. Moving forward, Longhorn can also use the Synology NAS as a "Backup Target" to make additional backups.

Prepare Host OS

Run these commands on all current and future nodes to install Longhorn’s required dependencies

# apt install -y open-iscsi util-linux dmsetup

# modprobe iscsi_tcp
# modprobe dm_crypt
# echo "iscsi_tcp" | tee -a /etc/modules-load.d/longhorn.conf
iscsi_tcp
# echo "dm_crypt" | tee -a /etc/modules-load.d/longhorn.conf
dm_crypt

# systemctl enable --now iscsid
Synchronizing state of iscsid.service with SysV service script with /usr/lib/systemd/systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable iscsid
Created symlink /etc/systemd/system/sysinit.target.wants/iscsid.service → /usr/lib/systemd/system/iscsid.service.

# systemctl status iscsid
● iscsid.service - iSCSI initiator daemon (iscsid)
     Loaded: loaded (/usr/lib/systemd/system/iscsid.service; enabled; preset: enabled)
     Active: active (running) since Sat 2026-01-24 15:34:28 CET; 19s ago
TriggeredBy: ● iscsid.socket
       Docs: man:iscsid(8)
    Process: 1256258 ExecStartPre=/usr/lib/open-iscsi/startup-checks.sh (code=exited, status=0/SUCCESS)
    Process: 1256279 ExecStart=/usr/sbin/iscsid (code=exited, status=0/SUCCESS)
   Main PID: 1256334 (iscsid)
      Tasks: 2 (limit: 37734)
     Memory: 3.6M (peak: 3.9M)
        CPU: 27ms
     CGroup: /system.slice/iscsid.service
             ├─1256333 /usr/sbin/iscsid
             └─1256334 /usr/sbin/iscsid

Jan 24 15:34:28 octavo systemd[1]: Starting iscsid.service - iSCSI initiator daemon (iscsid)...
Jan 24 15:34:28 octavo iscsid[1256279]: iSCSI logger with pid=1256333 started!
Jan 24 15:34:28 octavo systemd[1]: Started iscsid.service - iSCSI initiator daemon (iscsid).
Jan 24 15:34:29 octavo iscsid[1256333]: iSCSI daemon with pid=1256334 started!

Additional dependencies for optional features.

cryptsetup and dm_crypt would be required to enable Volume Encryption. cryptsetup uses the dm_crypt kernel module to manage LUKS2-formatted encrypted volumes (alss used previously to encrypt external SSD), ensuring that data is secured at rest before being written to the physical SSDs
jq is not used by the Longhorn storage engine itself during runtime, but it is useful to parse JSON output and would be needed for running Longhorn Environment Check scripts to verify nodes before installation.
nfs-common will be needed to make backups to NFS volumes; already installed for Migrating NFS volumes to the NFS CSI driver

Migration from Btrfs to XFS

Longhorn Installation Requirements includes a host filesystem that supports the file extents feature to store the data, ext4 and XFS being the only ones supported; this presents a challenge because both local disks in octavo are formatted as Btrfs and all workloads depend on at least one of them.

While there are adjustments that can be made to Btrfs volumes to minimize issues with Longhorn, ultimately Btrfs being unsupported means a kernel update or a specific IO pattern could still lead to volumes becoming stuck in Read-Only mode. Alternatives to Longhorn such as Ceph (via Rook Operator), GlusterFS (via various CSI drivers) or OpenEBS LocalPV also have enough incompatibilities with Btrfs volumes that would not serve the purpose.

Remove use of the SATA SSD

Warning

Stop all crontab jobs and other scripts that may be syncing files to or from any file sytem in the NVMe or SATA SSDS. Make sure that scripts running periodically (e.g. those listed by crontab -l) will not run or write data under /home/ssd since that would write data to the NVMe SSD and may accidentally fill it up.

The only use of the SATA SSD is for media files that are replicated from the NAs, so there is nothing in the SATA SSD that needs to be copied outside of it. It is enough to migrate the one volume using the SATA SSD to a NFS CSI mount and the disk is ready to format.

Create a new XFS file system on the SATA SSD and mount it in a temporary directory:

# umount /home/ssd
# mkfs.xfs -f /dev/sda
meta-data=/dev/sda               isize=512    agcount=4, agsize=244188662 blks
         =                       sectsz=4096  attr=2, projid32bit=1
         =                       crc=1        finobt=1, sparse=1, rmapbt=1
         =                       reflink=1    bigtime=1 inobtcount=1 nrext64=0
data     =                       bsize=4096   blocks=976754646, imaxpct=5
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0, ftype=1
log      =internal log           bsize=4096   blocks=476930, version=2
         =                       sectsz=4096  sunit=1 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
Discarding blocks...Done.

# blkid /dev/sda
/dev/sda: UUID="76347c52-c635-49b3-baa3-4ea98e41b4a4" BLOCK_SIZE="4096" TYPE="xfs"

# mkdir -p /mnt/sata_temp
# mount /dev/sda /mnt/sata_temp

Warning

Remove the line in /etc/fstab to mount the old file system on /home/ssd or else the system will no longer boot.

Copy NVMe to SATA SSD

Since the /home partitiion is critical for all workloads, the migration must be performed with the cluster services stopped to ensure data consistency. To minimize down-time for the affected services, at least the largest part of the data can be copied while workloads are running because it is mostly read-only:

# time rsync --bwlimit=500000 -aHAXv /home/depot /mnt/sata_temp/

sent 921,117,494,040 bytes  received 741,595 bytes  364,438,471.07 bytes/sec
total size is 920,889,625,124  speedup is 1.00

real    42m7.041s
user    7m56.286s
sys     22m42.006s

Warning

Writting to the problematic Crucial MX500 SSD requires hard-limiting the bandwidth to 500 MB/s with --bwlimit=500000

This takes 42 minutes to copy over 858 GB of Podcasts; that's 42 minutes less of down-time with all workloads down for the complete migration. Additional time can be saved if other directories are found to be unnecessary to move; as it happens 240 GB were found left back under /home/k8s/photos with no workload using them and additional 40 GB were found under /home/k8s/minecraft-server-backups that were also out of use.

Once most of the data has been transfered, all Kubernetes workloads and services must be stopped to finalize the transfer. It is actually necessary to first drain the node, to make sure all pods are stopped, otherwise pods will continue running and potentially writting to the files in the current /home partition.

# kubectl drain --ignore-daemonsets --delete-emptydir-data --force octavo
# systemctl stop kubelet
# systemctl stop containerd

Once all the processes are stopped, lsof should report that not a single process is using files under /home even though it may not yet be possible to unmount it.

# time lsof +D /home

real    0m8.257s
user    0m1.813s
sys     0m7.057s

# umount /home
umount: /home: target is busy.

/home cannot be unmounted yet because the NFS volume from the Synology NAS is still mounted as /home/nas and before that one can be unmounted it is necessary to stop the Continuous Monitoring service:

# systemctl stop conmon
# umount /home/nas
# umount /home

Note

Add -x to the rsync command flags to avoid copying files from other file systems.

# mount /home
# time rsync -aHAXvx /home/ /mnt/sata_temp/

real    5m29.869s
user    0m15.302s
sys     0m59.440s

At this point the /home partition should never be used again.

To make sure no files are written to it; unmount it, disable its entry in /etc/fstab and reboot.

Do not try to reformat the NVMe partition without rebooting. It won't work.

Copy SATA to NVMe SSD

After rebooting without mounting the (old) /home partition, create a new XFS file system in the NVME partition and take note of its new block ID:

# time mkfs.xfs -f /dev/nvme0n1p5
meta-data=/dev/nvme0n1p5         isize=512    agcount=4, agsize=232323200 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=1, sparse=1, rmapbt=1
         =                       reflink=1    bigtime=1 inobtcount=1 nrext64=0
data     =                       bsize=4096   blocks=929292800, imaxpct=5
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0, ftype=1
log      =internal log           bsize=4096   blocks=453756, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
Discarding blocks...Done.

real    0m21.188s
user    0m0.010s
sys     0m0.103s

# blkid /dev/nvme0n1p5
/dev/nvme0n1p5: UUID="1a2f94cc-315f-4bf1-8b59-0575b49fe098" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="df113399-0802-42bf-b170-1a9e62b79220"

# blkid /dev/sda
/dev/sda: UUID="76347c52-c635-49b3-baa3-4ea98e41b4a4" BLOCK_SIZE="4096" TYPE="xfs"

Update the /etc/fstab entries for /home and /home/ssd with their new Block ID (and xfs instead of btrfs), then mount only /home using its /etc/fstab entry, mount the SATA SSD in the temporary directory (so it's not under /home) and copy all its data back:

# mount /home
# mount /dev/sda /mnt/sata_temp
# time rsync -aHAXvx /mnt/sata_temp/ /home/

sent 1,033,492,365,270 bytes  received 24,759,287 bytes  361,306,458.51 bytes/sec
total size is 1,041,827,909,959  speedup is 1.01

real    47m39.689s
user    12m36.162s
sys     29m17.498s

#  df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/nvme0n1p2   60G   14G   46G  23% /
/dev/nvme0n1p4   60G   36G   25G  59% /var/lib
/dev/nvme0n1p1  1.1G  6.2M  1.1G   1% /boot/efi
/dev/nvme0n1p5  3.5T  1.1T  2.5T  30% /home
/dev/sda        3.7T  1.1T  2.7T  28% /mnt/sata_temp

Once all data has been copied back to the NVMe, now on a new XFS file system, and all entries /etc/fstab have been updated with the new file systems' UUIDs, mount the SATA SSD and the NAS back on their original mount points:

# umount /mnt/sata_temp
# mount /home/ssd
# mount /home/nas
# df -h
Filesystem                  Size  Used Avail Use% Mounted on
/dev/nvme0n1p2               60G   14G   46G  23% /
/dev/nvme0n1p4               60G   36G   25G  59% /var/lib
/dev/nvme0n1p1              1.1G  6.2M  1.1G   1% /boot/efi
/dev/nvme0n1p5              3.5T  1.1T  2.5T  30% /home
luggage:/volume1/NetBackup   21T   15T  6.0T  72% /home/nas
/dev/sda                    3.7T  1.1T  2.7T  28% /home/ssd

Finally the cluster workloads can be restored by uncordoning the node:

# kubectl uncordon octavo
node/octavo uncordoned

Install Longhorn

To keep track of deployment values, create longhorn-values.yaml with the following values:

longhorn-values.yaml

defaultSettings:
  allowVolumeCreationWithDegradedAvailability: "true"
  createDefaultDiskLabeledNodes: "true"
  defaultDataPath: /home/longhorn
  deletingConfirmationFlag: "true"
metrics:
  serviceMonitor:
    enabled: "true"

Before installing the Helm chart, create a longhorn directory under each partition with fast local (SSD) storage:

# mkdir /home/longhorn /home/ssd/longhorn

# ls -lad /home/longhorn/ /home/ssd/longhorn/
drwxr-xr-x 2 root root 6 Jan 25 13:54 /home/longhorn/
drwxr-xr-x 2 root root 6 Jan 25 16:00 /home/ssd/longhorn/

Install with Helm using the latest of Chart versions available in artifacthub.io/longhorn:

$ helm repo add longhorn https://charts.longhorn.io
"longhorn" has been added to your repositories

$ helm repo update
from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
Update Complete. ⎈Happy Helming!⎈

$ helm upgrade --install longhorn longhorn/longhorn \
  --values longhorn-values.yaml \
  --namespace longhorn-system \
  --create-namespace \
  --version 1.10.1
Release "longhorn" does not exist. Installing it now.
I0125 14:20:26.605248  523341 warnings.go:107] "Warning: unrecognized format \"int64\""
I0125 14:20:26.606712  523341 warnings.go:107] "Warning: unrecognized format \"int64\""
I0125 14:20:26.610027  523341 warnings.go:107] "Warning: unrecognized format \"int64\""
I0125 14:20:26.610080  523341 warnings.go:107] "Warning: unrecognized format \"int64\""
NAME: longhorn
LAST DEPLOYED: Sun Jan 25 14:20:26 2026
NAMESPACE: longhorn-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Longhorn is now installed on the cluster!

Please wait a few minutes for other Longhorn components such as CSI deployments, Engine Images, and Instance Managers to be initialized.

Visit our documentation at https://longhorn.io/docs/

After a few minutes all the pods and services are up and running:

kubectl get all -n longhorn-system

$ kubectl get all -n longhorn-system
NAME                                                    READY   STATUS    RESTARTS   AGE
pod/csi-attacher-5857549d6f-57tz9                       1/1     Running   0          4m4s
pod/csi-attacher-5857549d6f-cd5l8                       1/1     Running   0          4m4s
pod/csi-attacher-5857549d6f-nh7dn                       1/1     Running   0          4m4s
pod/csi-provisioner-57f9d44448-6g5kf                    1/1     Running   0          4m3s
pod/csi-provisioner-57f9d44448-b2p59                    1/1     Running   0          4m4s
pod/csi-provisioner-57f9d44448-zp4wd                    1/1     Running   0          4m3s
pod/csi-resizer-547f8b9dc8-2nw8d                        1/1     Running   0          4m3s
pod/csi-resizer-547f8b9dc8-sq7kx                        1/1     Running   0          4m4s
pod/csi-resizer-547f8b9dc8-t9mff                        1/1     Running   0          4m4s
pod/csi-snapshotter-8558df8679-2s7vw                    1/1     Running   0          4m3s
pod/csi-snapshotter-8558df8679-7cfmt                    1/1     Running   0          4m3s
pod/csi-snapshotter-8558df8679-9st8q                    1/1     Running   0          4m3s
pod/engine-image-ei-3154f3aa-4p885                      1/1     Running   0          4m9s
pod/instance-manager-106c7c23639743eccb1b438e18f1bc72   1/1     Running   0          4m9s
pod/longhorn-csi-plugin-js5zc                           3/3     Running   0          4m3s
pod/longhorn-driver-deployer-676f7f6c5c-v4kvh           1/1     Running   0          4m17s
pod/longhorn-manager-7446v                              2/2     Running   0          4m17s
pod/longhorn-ui-7c54575f4d-8ccrr                        1/1     Running   0          4m17s
pod/longhorn-ui-7c54575f4d-pfghw                        1/1     Running   0          4m18s

NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/longhorn-admission-webhook   ClusterIP   10.104.236.167   <none>        9502/TCP   4m19s
service/longhorn-backend             ClusterIP   10.97.214.18     <none>        9500/TCP   4m19s
service/longhorn-frontend            ClusterIP   10.108.65.154    <none>        80/TCP     4m19s
service/longhorn-recovery-backend    ClusterIP   10.101.82.196    <none>        9503/TCP   4m19s

NAME                                      DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/engine-image-ei-3154f3aa   1         1         1       1            1           <none>          4m9s
daemonset.apps/longhorn-csi-plugin        1         1         1       1            1           <none>          4m4s
daemonset.apps/longhorn-manager           1         1         1       1            1           <none>          4m19s

NAME                                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/csi-attacher               3/3     3            3           4m4s
deployment.apps/csi-provisioner            3/3     3            3           4m4s
deployment.apps/csi-resizer                3/3     3            3           4m4s
deployment.apps/csi-snapshotter            3/3     3            3           4m4s
deployment.apps/longhorn-driver-deployer   1/1     1            1           4m19s
deployment.apps/longhorn-ui                2/2     2            2           4m19s

NAME                                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/csi-attacher-5857549d6f               3         3         3       4m4s
replicaset.apps/csi-provisioner-57f9d44448            3         3         3       4m4s
replicaset.apps/csi-resizer-547f8b9dc8                3         3         3       4m4s
replicaset.apps/csi-snapshotter-8558df8679            3         3         3       4m4s
replicaset.apps/longhorn-driver-deployer-676f7f6c5c   1         1         1       4m19s
replicaset.apps/longhorn-ui-7c54575f4d                2         2         2       4m19s

Longhorn UI Ingress

To make the Longhorn UI, create an Ingress to access it over HTTPS:

pomerium/pomerium-ingress/longhorn.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: longhorn-pomerium-ingress
  namespace: longhorn-system
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/preserve_host_header: true
spec:
  ingressClassName: pomerium
  rules:
    - host: longhorn.very-very-dark-gray.top
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: longhorn-frontend
              port:
                name: "http"
  tls:
    - hosts:
        - longhorn.very-very-dark-gray.top
      secretName: tls-secret

$ kubectl apply -k pomerium/pomerium-ingress/
ingress.networking.k8s.io/audiobookshelf-pomerium-ingress unchanged
ingress.networking.k8s.io/code-server-pomerium-ingress unchanged
ingress.networking.k8s.io/firefly-iii-pomerium-ingress unchanged
ingress.networking.k8s.io/home-assistant-pomerium-ingress unchanged
ingress.networking.k8s.io/homepage-pomerium-ingress unchanged
ingress.networking.k8s.io/komga-pomerium-ingress unchanged
ingress.networking.k8s.io/dashboard-pomerium-ingress unchanged
ingress.networking.k8s.io/longhorn-pomerium-ingress created
ingress.networking.k8s.io/jellyfin-pomerium-ingress unchanged
ingress.networking.k8s.io/grafana-pomerium-ingress unchanged
ingress.networking.k8s.io/influxdb-pomerium-ingress unchanged
ingress.networking.k8s.io/prometheus-pomerium-ingress unchanged
ingress.networking.k8s.io/navidrome-pomerium-ingress unchanged
ingress.networking.k8s.io/ryot-pomerium-ingress unchanged
ingress.networking.k8s.io/steam-headless-pomerium-ingress unchanged
ingress.networking.k8s.io/unifi-network-app-pomerium-ingress unchanged
ingress.networking.k8s.io/ddns-updater-pomerium-ingress unchanged

After a little over a minute the DNS challenge is completed and the Longhorn UI is live at longhorn.very-very-dark-gray.top

$ kubectl get challenge -n longhorn-system --watch
NAME                                STATE     DOMAIN                             AGE
tls-secret-1-2700837206-765358469   pending   longhorn.very-very-dark-gray.top   7s
tls-secret-1-2700837206-765358469   valid     longhorn.very-very-dark-gray.top   79s

$ kubectl get certificate -n longhorn-system
NAME         READY   SECRET       AGE
tls-secret   True    tls-secret   89s

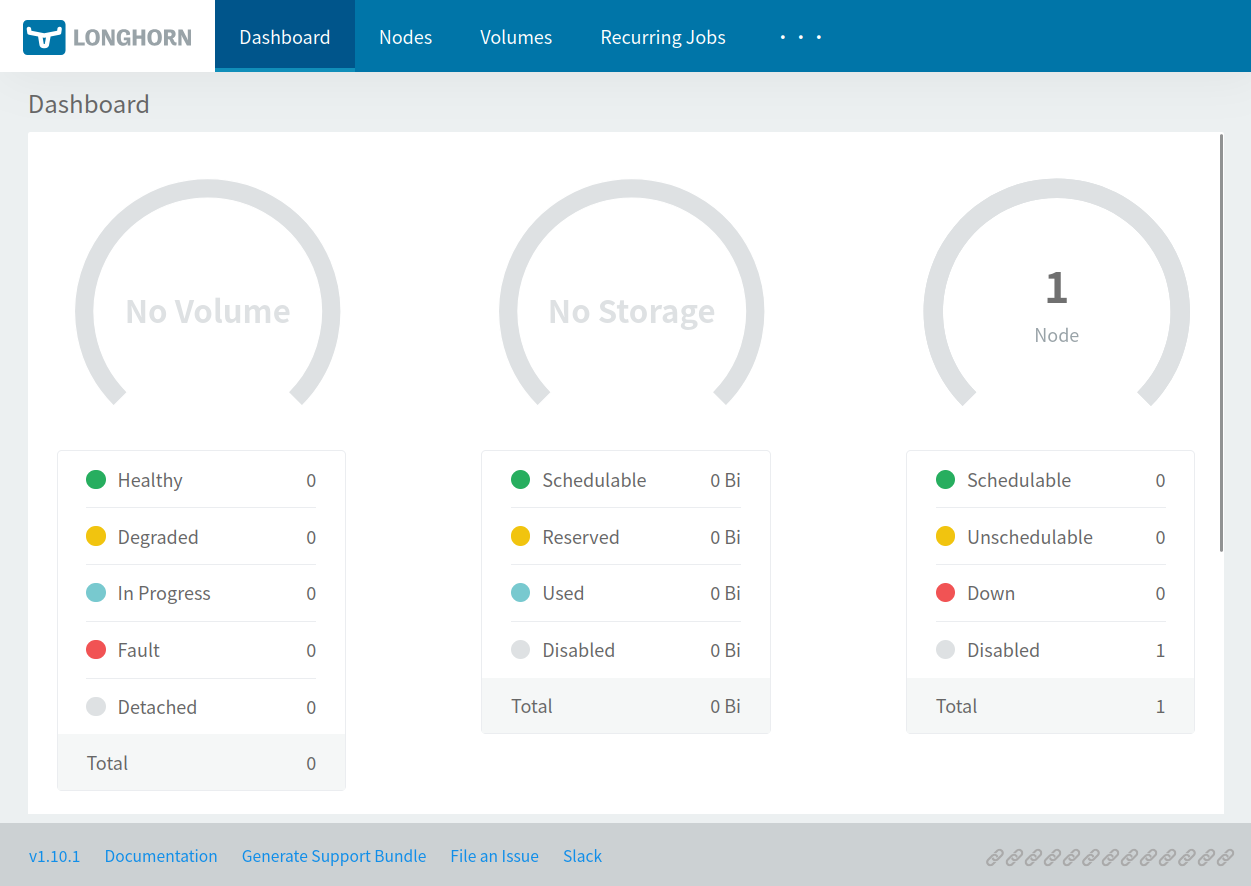

At first the UI will only show that is 1 Node and it is Disabled:

To make the node available, add to it the create-default-disk label:

$ kubectl label node octavo node.longhorn.io/create-default-disk=true
node/octavo labeled

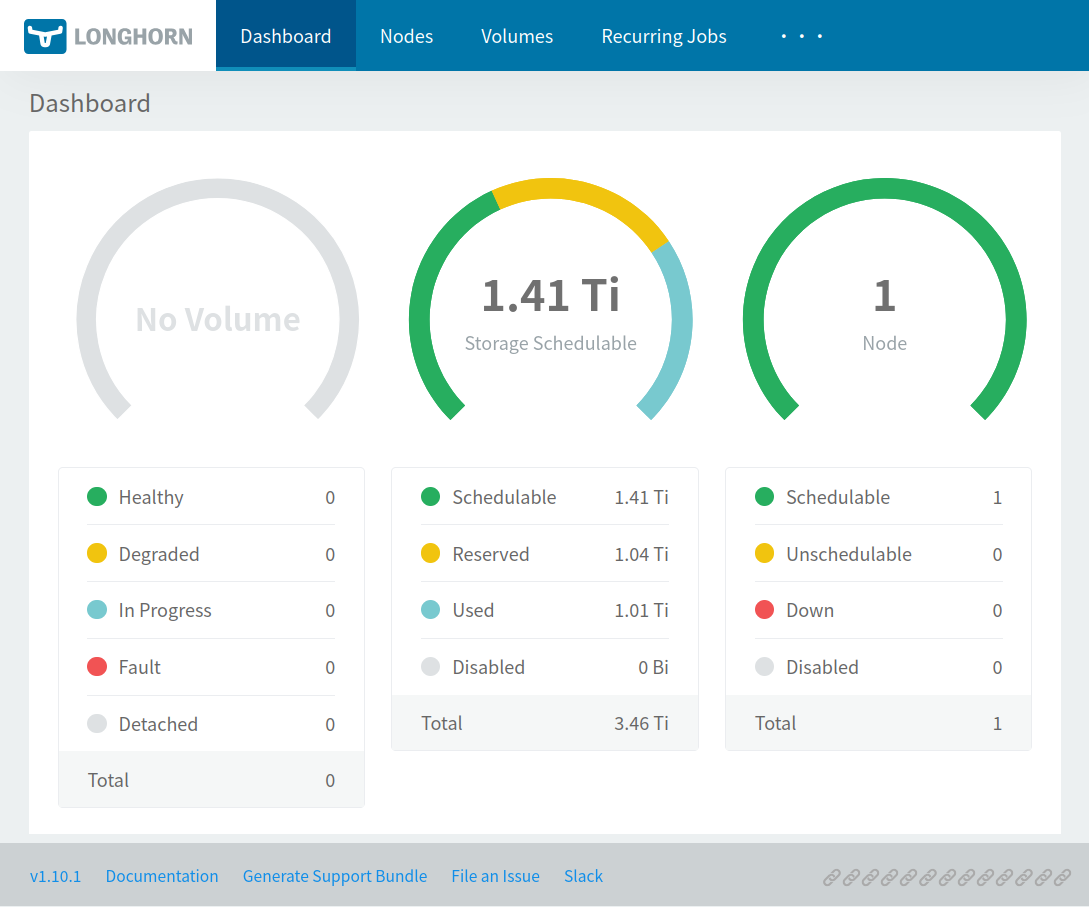

Once the node is labeled it becomes Schedulable and the next steps can be taken.

Configure disks

One the node is Schedulable go to the Nodes tab and use the drop-down menu on the right end of the node's entry to Edit node and disks. Add the SATA SSD, add a +New Disk Tag to each disk to reflect their hardware interface (and bandwidth) and set their Storage Reserved to the recommended 50 Gi.

Storage metrics represent aggregate values across all disks configured on all nodes:

Reserved storage is the space Longhorn will not use for volume replicas. It is set aside for the Host OS, other applications, and to prevent the disk from reaching 100% capacity.
Used storage is the actual physical space currently occupied by Longhorn data and other system files.
Schedulable storage is the amount of new volume capacity Longhorn can allocate to pods.

Targeted `StorageClass`es

To enable the automatic creation of volumes in each disk, create a StorageClass for each type of disk (NVMe, SATA) with this manifest:

longhorn-storage.yaml

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: longhorn-nvme
provisioner: driver.longhorn.io
allowVolumeExpansion: true
parameters:
  numberOfReplicas: "1" # Increase to 2 after adding a second node
  diskSelector: "nvme"
  dataLocality: "best-effort"
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: longhorn-sata
provisioner: driver.longhorn.io
allowVolumeExpansion: true
parameters:
  numberOfReplicas: "1"
  diskSelector: "sata"
  dataLocality: "best-effort"

Longhorn supports supports online volume expansion, allowing the volume to grow without downtime, only if the StorageClass has allowVolumeExpansion: true which cannot be added later without deleting and recreating the StorageClass (existing volumes are not deleted).

$ kubectl apply -f longhorn-storage.yaml
storageclass.storage.k8s.io/longhorn-nvme created
storageclass.storage.k8s.io/longhorn-sata created

Replication Vs. Bandwidth

When creating new PVC using the longhorn-nvme class to use the fastest SSD, accessModes should almost always be set to ReadWriteOnce.

RWO volumes (ReadWriteOnce) are mounted directly as block devices via iSCSI. This provides the highest performance for database-like workloads (e.g., Postgres, Redis, or application caches) because there is no network filesystem overhead. Most Kubernetes deployments (even those with multiple replicas) do not require multiple pods to write to the same volume simultaneously. Instead, each pod typically manages its own data. In a multi-node cluster, if one node fails, Kubernetes will move the pod to the other node. Longhorn will then detach the RWO volume from the old node and attach it to the new one.

RWX volumes (ReadWriteMany) should only be used when an application specifically requires multiple pods (possibly on multiple nodes) to read and write to the exact same files at the same time. Longhorn implements RWX by spinning up a "Share Manager" pod that acts as an NFS server for that specific volume (this requires the nfs-common).

When scaling a single-node cluster to two nodes and setting numberOfReplicas: 2, an RWO volume will still be fully distributed and synced across both nodes' NVMe SSDs. The "Once" in ReadWriteOnce refers only to how many nodes can mount the volume at one time, not how many nodes store the data. Even with RWO, data is redundant and safe on both nodes.

However, in a two-node Longhorn cluster with two replicas, each pod will not use exclusively local PCIe NVMe bandwidth for its storage operations. While each pod can be guaranteed to have a local copy of its data, the synchronous replication requirement of a distributed system introduces network latency.

By default, Longhorn may schedule a pod on a node that does not contain a local replica of its volume. To force each pod to prioritize its local disk, enable Data Locality in the StorageClass or volume settings:

strict-local: Enforces that a healthy replica must exist on the same node as the pod. This provides the lowest possible latency for reads but prevents the pod from starting if the local disk is unavailable.
best-effort: Longhorn attempts to keep one replica on the same node as the pod. If it can't, the pod will still run but will access its data over the network from the other node. This is very nearly always as fast as strict-local but with the advantage that pods can move across nodes more easily and quickly, which maximizes uptime without compromising performance.

Even if a pod is reading directly from its local NVMe SSD, write operations are synchronous. When a pod writes data, the Longhorn Engine (running on the same node as the pod) must successfully write that data to both the local replica and the remote replica on the second node before the write is considered "complete".

This means the write bandwidth and latency are capped by the network speed and the overhead of the iSCSI/Longhorn protocol, rather than the raw PCIe NVMe bandwidth. While the pod will benefit from NVMe speeds for local reads, the overall performance is lower than a raw local NVMe SSD: reads will have near-local speeds but writes is limited by network latency.

Ultimately, if an application requires raw PCIe NVMe bandwidth and doesn't need Longhorn’s high availability features, then a hostPath or Local Path Provisioner class may be best for that specific workload. However, for most general-purpose applications, the performance trade-off of Longhorn is acceptable for the benefit of having a fully synced, distributed cluster.

Active-Active Vs. Active-Passive

For a single-pod deployment like code-server, when scaling up to 2 replicas on 2 nodes, with Longhorn replicating its RWO volume with data locality set to best-effort to keep both volumes in sync, the result is an active-passive cluster, with one pod being active while the other stays in stand-by to take over only when the first one goes down.

This setup will not work for an active-active setup because of two reasons:

A ReadWriteOnce (RWO) volume is physically locked to a single node at a time. If Pod-A is running one node and has the volume mounted, Pod-B on the other node will be unable to start. It will stay in a ContainerCreating or MatchNodeSelector state because Longhorn cannot attach an RWO volume to two nodes simultaneously. While Longhorn replicates the data to both nodes' NVMe SSDs in the background, only one engine can be the Primary (the writer) at any given moment.

With dataLocality: best-effort and numberOfReplicas: 2 every byte Pod-A writes to the one NVMe is synchronously sent over the network to the other NVMe, so that both disks are always bit-for-bit identical. If one node crashes, Kubernetes detects the node failure. It then schedules a new Pod on the other node. Longhorn "promotes" the second replica to be the new Primary, and the Pod starts. This is an Active-Passive High Availability setup, with redundancy, but not both pods responding to requests at the same time.
Even when using RWX (which allows both pods to run), applications like code-server are not stateless; code-server (and its underlying VS Code engine) uses SQLite databases for extensions and settings. SQLite does not support multiple processes writing to the same file over a network (NFS/RWX). Attempting to run multiple instances on a single such database would lead to database corruption or immediate "Locked" errors. Moreover, if Pomerium proxy sends a request for "Save File" to Pod-B, but the "Open Editor" session was handled by Pod-A, the session state would be inconsistent.

RWO volumes (best compromise for speed and replication) support Disaster Recovery (Active-Passive) setups, ensuring data is never lost a node dies. However, it cannot be Active-Active; for that, an application must be specifically designed to store its state in an external database (like Postgres) rather than a local RWO/RWX volume.

Most of the currently running applications are designed as monolithic services that rely on a single local database (SQLite) or a local file system (e.g. Home Assistant), making them Active-Passive by nature. However, several can be adapted for Active-Active High Availability with specific configurations: Pomerium and Homepage are stateless, Grafana can have its SQLite database replaced by Postgres or MySQL, but ony InfluxDB 3.0 supports clustering.

From `hostPath` to Longhorn

At this point data can be migrated from the old hostPath volume to the new Longhorn volumes in three steps for each application (Deployment):

Create a new PersistentVolumeClaim using storageClassName: longhorn-nvme.
Scale the deployment down.
Copy data using a simple pod to run the cp command e.g. using busybox.
Update the Deployment to mount the new PersistentVolumeClaim.
Scale the deployment back up.

To copy the data the same simple pod can be run by adjusting just the highlighted values:

longhorn-migrator.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: hostpath-to-longhorn-migrator
  namespace: code-server  # Set to each application's namespace
spec:
  template:
    spec:
      restartPolicy: OnFailure  # Restart only upon failure.
      containers:
      - name: worker
        image: ubuntu:22.04
        command: ["/bin/sh", "-c"]
        args:
          - |
            apt-get update && apt-get install -y rsync
            rsync -uva /old/ /new/
        volumeMounts:
        - name: old-data
          mountPath: /old  # Point to existing hostPath subdirectory
          readOnly: true
        - name: new-data
          mountPath: /new  # Point to new Longhorn PVC
      volumes:
      - name: old-data
        hostPath:
          path: /home/k8s/code-server
      - name: new-data
        persistentVolumeClaim:
          claimName: code-server-pvc-lh  # The new PVC created for each application.

Example migration

To illustrate the migration process with a simple case, start by migrating VS Code Server.

Update the code-server.yaml manifest to add a new PersistentVolumeClaim using storageClassName: longhorn-nvme and apply the mani fest to create the PVC:

code-server.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: code-server-pvc-lh
  namespace: code-server
spec:
  storageClassName: longhorn-nvme
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi

Warning

The accessModes value cannot be easly done later, e.g. when adding a node; see Replication Vs. Bandwidth.

Confirm the PVC is created after applying the code-server.yaml manifest:

$ kubectl apply -f code-server.yaml
namespace/code-server unchanged
service/code-server unchanged
persistentvolume/code-server-pv unchanged
persistentvolumeclaim/code-server-pv-claim unchanged
persistentvolumeclaim/code-server-pvc-lh created
deployment.apps/code-server unchanged

$ kubectl -n code-server get pvc
NAME                   STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
code-server-pv-claim   Bound    code-server-pv                             10Gi       RWO            manual          <unset>                 269d
code-server-pvc-lh     Bound    pvc-f549ff26-5424-4b30-b0a3-245a845888f7   5Gi        RWO            longhorn-nvme   <unset>                 68s

Scale the deployment down.

$ kubectl -n code-server scale deployment code-server --replicas=0
deployment.apps/code-server scaled

Copy data using a simple pod to run the cp command, e.g. using busybox.

longhorn-migrator.yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: hostpath-to-longhorn-migrator
  namespace: code-server  # Set to each application's namespace
spec:
  template:
    spec:
      restartPolicy: OnFailure  # Restart only upon failure.
      containers:
      - name: worker
        image: ubuntu:22.04
        command: ["/bin/sh", "-c"]
        args:
          - |
            apt-get update && apt-get install -y rsync
            rsync -uva /old/ /new/
        volumeMounts:
        - name: old-data
          mountPath: /old  # Point to existing hostPath subdirectory
          readOnly: true
        - name: new-data
          mountPath: /new  # Point to new Longhorn PVC
      volumes:
      - name: old-data
        hostPath:
          path: /home/k8s/code-server
      - name: new-data
        persistentVolumeClaim:
          claimName: code-server-pvc-lh  # The new PVC created for each application.

$ kubectl apply -f longhorn-migrator.yaml
job.batch/hostpath-to-longhorn-migrator created

$ kubectl -n code-server get jobs --watch
NAME                            STATUS    COMPLETIONS   DURATION   AGE
hostpath-to-longhorn-migrator   Running   0/1           12s        12s
hostpath-to-longhorn-migrator   Running   0/1           18s        18s
hostpath-to-longhorn-migrator   SuccessCriteriaMet   0/1           19s        19s
hostpath-to-longhorn-migrator   Complete             1/1           19s        19s

$ kubectl -n code-server delete job hostpath-to-longhorn-migrator
job.batch "hostpath-to-longhorn-migrator" deleted from code-server namespace

Update the Deployment to mount the new PersistentVolumeClaim.

code-server.yaml

volumes:
  - name: code-server-storage
    persistentVolumeClaim:
      claimName: code-server-pvc-lh

At this point the old PersistentVolumeClaim and PersistentVolume using hostPath can be removed. Apply the code-server.yaml manifest again:

$ kubectl apply -f code-server.yaml
namespace/code-server unchanged
service/code-server unchanged
persistentvolumeclaim/code-server-pvc-lh unchanged
deployment.apps/code-server configured

Scale the deployment back up.

$ kubectl -n code-server scale deployment code-server --replicas=1
deployment.apps/code-server scaled

$ kubectl -n code-server get pods --watch
NAME                           READY   STATUS              RESTARTS   AGE
code-server-67c85cf5d7-gwpnk   0/1     ContainerCreating   0          1s
code-server-67c85cf5d7-gwpnk   1/1     Running             0          12s

Clean-up the old PersistentVolumeClaim and PersistentVolume based on hostPath:

$ kubectl -n code-server delete pvc code-server-pv-claim
persistentvolumeclaim "code-server-pv-claim" deleted from code-server namespace

$ kubectl delete pv code-server-pv
persistentvolume "code-server-pv" deleted

NAS-to-Longhorn sync

Some applications work better when files are in a "local" file system, e.g. Audiobookshelf detects new books when added to a local (hostPath) volume, but when added to a NFS volume the library must be manually re-scanned; while this is not too bad for audiobooks when added at a rate of a few per month , it becomes a problem with podcasts since the aggregate release rate of episodes soon amounts to a few every day.

To keep such apps running off of "local" Longhorn volumes while using the NAS NFS volume as the canonical repository, run a sidecar pod that continuously syncs content from the NAS to the Longhorn volume. To avoid constantly scanning the content of files in the NAS, the pod should scan the NFS volume for metadata updates. Here is the sidecar pod added to Komga:

Kubernetes deployment: komga.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: komga
  name: komga
  namespace: komga
spec:
  replicas: 1
  revisionHistoryLimit: 0
  selector:
    matchLabels:
      app: komga
  strategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: komga
    spec:
      containers:
        - image: alpine:latest
          imagePullPolicy: Always
          name: sync-nvme-from-nas
          command: ["/bin/sh"]
          args:
            - "-c"
            - |
              apk add --no-cache rsync
              SOURCE="/nas-source"
              TARGET="/data-target"
              LAST_FINGERPRINT=""
              echo "Starting Smart-Sync Poller..."
              while true; do
                CURRENT_FINGERPRINT=$(ls -Rl --full-time $SOURCE | md5sum)
                if [ "$CURRENT_FINGERPRINT" != "$LAST_FINGERPRINT" ]; then
                  echo "Change detected on Synology NAS. Synchronizing to NVMe..."
                  rsync -au --delete --inplace "$SOURCE/" "$TARGET/"
                  LAST_FINGERPRINT=$CURRENT_FINGERPRINT
                  echo "Sync complete. Waiting for next change..."
                fi
                sleep 60
              done
          volumeMounts:
          - name: komga-ebooks-nfs
            mountPath: /nas-source
            readOnly: true
          - name: komga-books
            mountPath: /data-target
          securityContext:
            allowPrivilegeEscalation: false
            runAsUser: 118
            runAsGroup: 118
        - image: gotson/komga
          imagePullPolicy: Always
          name: komga

After applying this change to the Komga deployment, the pod is now running two containers: the application komga and the sidecar sync-nvme-from-nas. Dropping new files in the ebooks directory in the NAS, or deleting them, is detected and synced to the Longhorn volume:

$ kubectl logs -n komga -f deployment/komga -c sync-nvme-from-nas -f
(1/6) Installing acl-libs (2.3.2-r1)
(2/6) Installing lz4-libs (1.10.0-r0)
(3/6) Installing popt (1.19-r4)
(4/6) Installing libxxhash (0.8.3-r0)
(5/6) Installing zstd-libs (1.5.7-r2)
(6/6) Installing rsync (3.4.1-r1)
Executing busybox-1.37.0-r30.trigger
OK: 9602 KiB in 22 packages
Starting Smart-Sync Poller...
Change detected on Synology NAS. Synchronizing to NVMe...
sending incremental file list
./

sent 573,984 bytes  received 1,172 bytes  383,437.33 bytes/sec
total size is 13,228,874,013  speedup is 23,000.50
Sync complete. Waiting for next change...

Change detected on Synology NAS. Synchronizing to NVMe...
sending incremental file list
Manuals/books/
Manuals/books/FUJIFILM X-T5 Owner's Manual.pdf

sent 8,633,357 bytes  received 1,165 bytes  5,756,348.00 bytes/sec
total size is 13,228,874,013  speedup is 1,532.09
Sync complete. Waiting for next change...

Longhorn Backups

Once pods are migrated to Longhorn volumes, setting up backups to the Synology NAS is easy.

First, create the necessary directories in the NAS:

# mkdir /home/nas/backups/longhorn

Then, Edit the default target under Backup and Restore > Backup Targets and set the URL to nfs://192.168.0.4:/volume1/NetBackup/backups/longhorn after having creating the directories in the NAS.

Recurrent jobs

To set up a global backup system that covers volumes across all namespaces, leverage Longhorn’s Recurring Job Groups. These allow defining the schedule once and then applying it to any PVC simply by adding a label.

Create the Global Recurring Jobs with the following longhorn-backups.yaml manifest to create the jobs in the longhorn-system namespace. By adding them to the default group, they become available to any volume in the cluster.

longhorn-backups.yaml

apiVersion: longhorn.io/v1beta2
kind: RecurringJob
metadata:
  name: global-daily-backup
  namespace: longhorn-system
spec:
  cron: "0 2 * * *"        # 2:00 AM daily
  task: "backup"
  groups:
  - default                # Group name used for assignment
  retain: 7                # Keeps 1 week of dailies
  concurrency: 2           # Allows 2 volumes to backup simultaneously
---
apiVersion: longhorn.io/v1beta2
kind: RecurringJob
metadata:
  name: global-weekly-backup
  namespace: longhorn-system
spec:
  cron: "0 3 * * 0"        # 3:00 AM every Sunday
  task: "backup"
  groups:
  - default
  retain: 4                # Keeps 1 month of weeklies
  concurrency: 1

$ kubectl apply -f longhorn-backups.yaml
recurringjob.longhorn.io/global-daily-backup created
recurringjob.longhorn.io/global-weekly-backup created

In Longhorn, jobs do not target specific namespaces; instead, Volumes (the underlying objects of PVCs) "subscribe" to Groups. When a volume has a label matching a group name defined in a RecurringJob, Longhorn automatically includes that volume in the schedule. Because Longhorn volumes are cluster-scoped, this works regardless of which namespace the PVC resides in.

Add the following label to the manifest of each PVC to be backed up. Longhorn will automatically propagate this label to the underlying volume.

code-server.yaml

metadata:
  name: code-server-pvc-lh
  namespace: code-server
  labels:
    # This enables all jobs in the 'default' group for this volume
    recurring-job-group.longhorn.io/default: "enabled"

Backups will be found under Backup and Restore > Backups after the first 2:00 AM run, identified by their source Volume Name and Timestamp, regardless of their original Kubernetes namespace.

Adding future nodes

To add nodes in the future (TBC):

Create an XFS (or ext4) file system and mount it on /home.
Create the /home/longhorn directory.
Join the node to the cluster.
Label the node with node.longhorn.io/create-default-disk=true.
- Longhorn will automatically detect /home/longhorn on the new node.
Update the longhorn-nvme StorageClass. or individual volumes in the relevant deployments, to numberOfReplicas: 2 so that Longhorn syncs data across nodes.

Migrating Kubernetes volumes to Longhorn

Motivation

Prepare Host OS

Migration from Btrfs to XFS

Remove use of the SATA SSD

Copy NVMe to SATA SSD

Copy SATA to NVMe SSD

Install Longhorn

Longhorn UI Ingress

Configure disks

Targeted StorageClasses

Replication Vs. Bandwidth

Active-Active Vs. Active-Passive

From hostPath to Longhorn

Example migration

NAS-to-Longhorn sync

Longhorn Backups

Recurrent jobs

Adding future nodes

Targeted `StorageClass`es

From `hostPath` to Longhorn
