Raspberry Pi 5 setup for a buddying coder

As a certain season approaches, I embarked in a little side quest: to setup a Raspberry Pi 5 for a good bro who is learning to code and wants to learn more about Linux as well. Since his goal is learning to code rather than (I hope) getting lost down the infinite rabbit holes of tinkering with the OS and tools, I set this up so he doesn't have to, but otherwise left it basic and uncomplicated.

Hardware

As this setup has been working quite well for Alfred, the hardware chosen is a the same except for the case, due to short-term availability:

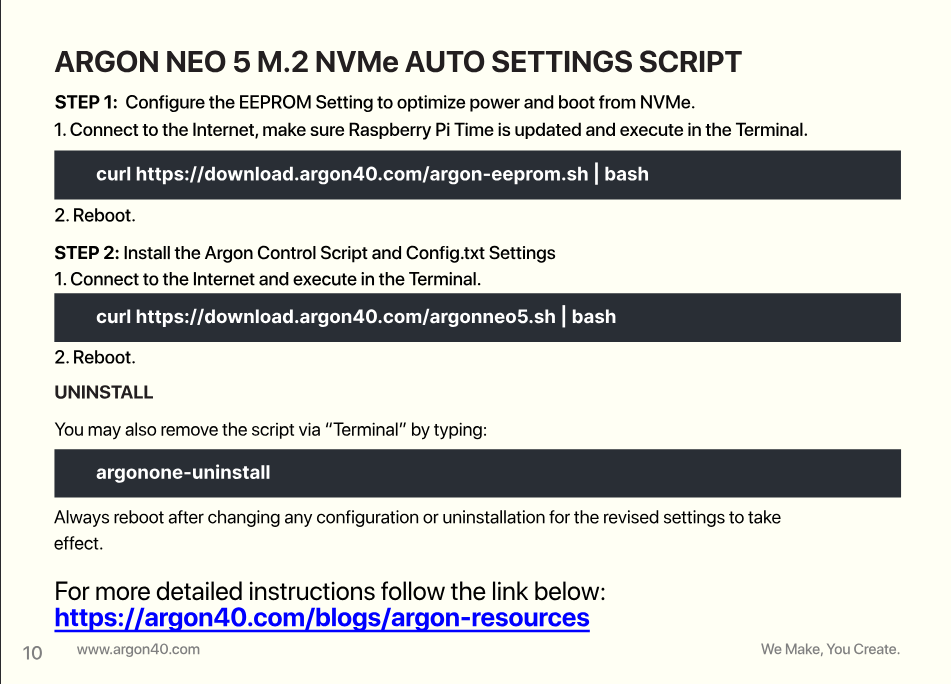

Argon cases with NVMe extensions are tricky to assemble, one has to follow instructions carefully and make sure the PCIe cable is connected the right way and fully connected. This case actually came with two PCIe cables and a couple of spare screws, which is nice.

See also this In-Depth Review Raspberry Pi 5 Argon NEO 5 Case.

Install to NVMe SSD

To install Raspberry Pi Os directly on the NVMe drive, it goes first into an ICY BOX IB-1817M-C31 USB 3.1 NVMe enclosure, so the installation can be done on the SSD directl instead of using an Micro SD card.

Only the best for my bro, so I installed Raspberry Pi OS Full which is a port of Debian Trixie with desktop environment and recommended applications and came out only last month (Release date: 1 Oct 2025).

Tip

Always download Raspberry Pi OS images from the official Raspberry Pi OS downloads and check its SHA256 against the profided integrity hash.

Using rpi-imager there is no need to even download images manually, the tool does it automatically once the Raspberry Pi model (device) and OS version is chosen. The tool also allows setting a few basic parameter such as the password, WiFi network, etc.

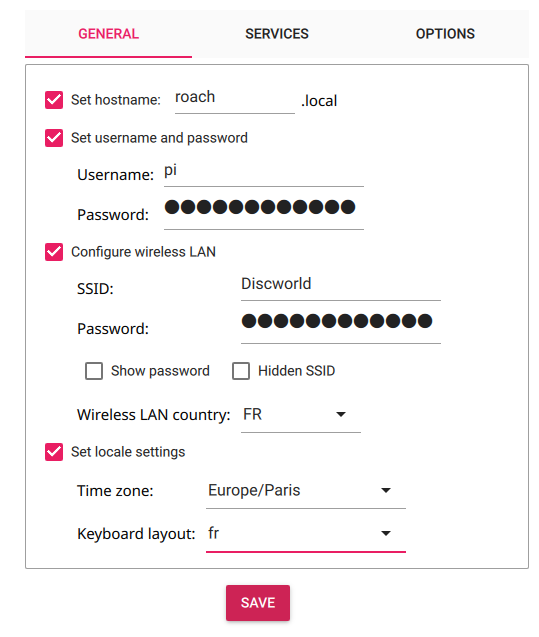

Setting parameters in rpi-imager

Once the installation is done, the original partitions are replaced with just two (bootfs, rootfs):

[104897.486810]  sdf: sdf1 sdf2
GPT would be necessary only if the disk is larger than 2TB.

Booting Pi from NVME greater than 2TB (GPT as opposed to MBR) includes manual instructions to install Raspberry Pi OS on a 4TB NVME using a GPT table. If you image a disk which is larger than 2TB with the Raspberry Pi tools or images, your disk will be limited to 2TB because they use MBR (Master Boot Record) instead of GPT (GUID partition table).

Custom partitions

It always felt odd, if not wrong, to run a Raspberry Pi with a large SSD disk without having most of the space allocated to a separate partition (e.g. /home), so I took the liberty of resizing the rootfs partition to mount most of the 2TB disk as /home.

Note

This may not be entirely useful when it comes to reinstalling the OS, since tools like rpi-imager will anyway wipe the entire device regardless of partitions, and in all honesty I am yet to reinstall the OS in any of my devices.

This involved deleting the root partitiona and then recreating it with a different size, to then create a new primary partition taking the rest of the disk.

For reference, see also:

Since the disk has old-fashined MBR partitions, fdisk can be used. Note that this is done while the SSD is not yet installed in the Raspberry Pi, but on the USB adapter.

The starting point is that rpi-imager has created only a 512MB boot partition and a 8.5GB root partition:

# fdisk /dev/sdf

Welcome to fdisk (util-linux 2.39.3).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): p
Disk /dev/sdf: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: SSD 990 EVO
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: dos
Disk identifier: 0x796ebf23

Device     Boot   Start      End  Sectors  Size Id Type
/dev/sdf1         16384  1064959  1048576  512M  c W95 FAT32 (LBA)
/dev/sdf2       1064960 18792447 17727488  8.5G 83 Linux

Command (m for help): q

There is a small empty space before the first partition, which requires a bit of maneuviring around. Attempting to create new partitions with default values will first create a tiny 7MB partition at the start of the disk:

Command (m for help): n
Partition type
   p   primary (2 primary, 0 extended, 2 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (3,4, default 3):
First sector (2048-3907029167, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-16383, default 16383):

Created a new partition 3 of type 'Linux' and of size 7 MiB.

Command (m for help): n
Partition type
   p   primary (3 primary, 0 extended, 1 free)
   e   extended (container for logical partitions)
Select (default e): p

Selected partition 4
First sector (18792448-3907029167, default 18792448):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (18792448-3907029167, default 3907029167):

Created a new partition 4 of type 'Linux' and of size 1.8 TiB.

Command (m for help): p
Disk /dev/sdf: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: SSD 990 EVO
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: dos
Disk identifier: 0x796ebf23

Device     Boot    Start        End    Sectors  Size Id Type
/dev/sdf1          16384    1064959    1048576  512M  c W95 FAT32 (LBA)
/dev/sdf2        1064960   18792447   17727488  8.5G 83 Linux
/dev/sdf3           2048      16383      14336    7M 83 Linux
/dev/sdf4       18792448 3907029167 3888236720  1.8T 83 Linux

Partition table entries are not in disk order.

Command (m for help): q

To make things more interesting, consider that a root partition of 8.5 GB may not be enough. Despite having all user data in another patition, there are scenarios where a lot more than 10 GB of space is needed for system files, e.g. the Kubernetes cluster in octavo has 45GB under /var/lib/containerd. In case this Raspberry Pi may developt such needs, the root partition is resized to a generous 200MB; this involves the nerve-racking operation of deleting that partition, to the re-created starting on the same sector:

  1. Start from the original 2 partitions; delete partitons 3 and 4 is previously created.
  2. Create partitioan 3 (7MB) to fill the odd gap at the stat of the disk.
  3. Delete partition 2 (root).
  4. Create new partition 2 starting on the same sector (1064960, which should be the default, thanks to partition 3 filling the gap) with the desired size (e.g. +200G). Do not delete the ext4 signature.
  5. Create new partition 4 taking the rest of the space (default start and end).
  6. Delete partition 3; probably not necessary, just to reduce visual clutter.
  7. Write changes to the partition table, once
# fdisk /dev/sdf

Welcome to fdisk (util-linux 2.39.3).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): p
Disk /dev/sdf: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: SSD 990 EVO
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: dos
Disk identifier: 0x796ebf23

Device     Boot   Start      End  Sectors  Size Id Type
/dev/sdf1         16384  1064959  1048576  512M  c W95 FAT32 (LBA)
/dev/sdf2       1064960 18792447 17727488  8.5G 83 Linux


Command (m for help): n
Partition type
   p   primary (2 primary, 0 extended, 2 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (3,4, default 3):
First sector (2048-3907029167, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-16383, default 16383):

Created a new partition 3 of type 'Linux' and of size 7 MiB.


Command (m for help): d
Partition number (1-3, default 3): 2

Partition 2 has been deleted.


Command (m for help): n
Partition type
   p   primary (2 primary, 0 extended, 2 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (2,4, default 2):
First sector (1064960-3907029167, default 1064960):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (1064960-3907029167, default 3907029167): +200G

Created a new partition 2 of type 'Linux' and of size 200 GiB.
Partition #2 contains a ext4 signature.

Do you want to remove the signature? [Y]es/[N]o: n


Command (m for help): n
Partition type
   p   primary (3 primary, 0 extended, 1 free)
   e   extended (container for logical partitions)
Select (default e): p

Selected partition 4
First sector (420495360-3907029167, default 420495360):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (420495360-3907029167, default 3907029167):

Created a new partition 4 of type 'Linux' and of size 1.6 TiB.


Command (m for help): p
Disk /dev/sdf: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: SSD 990 EVO
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: dos
Disk identifier: 0x796ebf23

Device     Boot     Start        End    Sectors  Size Id Type
/dev/sdf1           16384    1064959    1048576  512M  c W95 FAT32 (LBA)
/dev/sdf2         1064960  420495359  419430400  200G 83 Linux
/dev/sdf3            2048      16383      14336    7M 83 Linux
/dev/sdf4       420495360 3907029167 3486533808  1.6T 83 Linux

Partition table entries are not in disk order.


Command (m for help): d
Partition number (1-4, default 4): 3

Partition 3 has been deleted.


Command (m for help): p
Disk /dev/sdf: 1.82 TiB, 2000398934016 bytes, 3907029168 sectors
Disk model: SSD 990 EVO
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: dos
Disk identifier: 0x796ebf23

Device     Boot     Start        End    Sectors  Size Id Type
/dev/sdf1           16384    1064959    1048576  512M  c W95 FAT32 (LBA)
/dev/sdf2         1064960  420495359  419430400  200G 83 Linux
/dev/sdf4       420495360 3907029167 3486533808  1.6T 83 Linux


Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

One the root partition has the desired size, it is possible to resize the Ext4 file system in it; but first one has to run a file system check:

# resize2fs /dev/sdf2 200G
resize2fs 1.47.0 (5-Feb-2023)
Please run 'e2fsck -f /dev/sdf2' first.

# e2fsck -f /dev/sdf2
e2fsck 1.47.0 (5-Feb-2023)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
rootfs: 183284/554880 files (0.1% non-contiguous), 1954143/2215936 blocks

# resize2fs /dev/sdf2 200G
resize2fs 1.47.0 (5-Feb-2023)
Resizing the filesystem on /dev/sdf2 to 52428800 (4k) blocks.
The filesystem on /dev/sdf2 is now 52428800 (4k) blocks long.

# e2fsck /dev/sdf2
e2fsck 1.47.0 (5-Feb-2023)
rootfs: clean, 183284/13056000 files, 2741779/52428800 blocks
# mkfs.ex /dev/sdf4
mkfs.exfat  mkfs.ext2   mkfs.ext3   mkfs.ext4
# mkfs.ext4 /dev/sdf4
mke2fs 1.47.0 (5-Feb-2023)
Creating filesystem with 435816726 4k blocks and 108961792 inodes
Filesystem UUID: 95b56139-4931-4dac-ab92-859e0d576453
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
        4096000, 7962624, 11239424, 20480000, 23887872, 71663616, 78675968,
        102400000, 214990848

Allocating group tables: done
Writing inode tables: done
Creating journal (262144 blocks): done
Writing superblocks and filesystem accounting information: done

At this point the resized file system can be mounted, which will come in handy later.

# mount /dev/sdf2 /mnt
# ls /mnt/
bin  boot  dev  etc  home  lib  lost+found  media  mnt  opt  proc  root  run  sbin  srv  sys  tmp  usr  var
# ls /mnt/home/
pi  rpi-first-boot-wizard

Pre-boot tweaks

The following adjustments can be make by editing files in the boot partition (sdf1) before booting the Raspberry Pi OS for the first time; mount it under /mnt/boot once the root file system is mounted on /mnt.

# mount /dev/sdf1 /mnt/boot

Note

This partition will be mounted as /boot/firmware after booting the Raspberry Pi OS for the first time.

PCIe Gen 3

NVMe SSD boot with the Raspberry Pi 5, at least with this Argon ONE case, turned out to be easy. When using a HAT+-compliant NVMe adapter, there is no need to enable the external PCIe port, it will be enabled automatically, but it is useful to force PCIe Gen 3 speeds using these options in /mnt/boot/config.txt

[all]
dtparam=pciex1
dtparam=pciex1_gen=3

Enable CGroups

Troubleshooting Bootstrap for Kubernetes on the previous Raspberry Pi OS revealed that the required CGroups are not enabled by default. Since these may be needed by popular development tools, e.g. to run in Docker, enable these in /mnt/boot/cmdline.txt

cgroup_enable=cpuset cgroup_memory=1 cgroup_enable=memory console=serial0,115200 console=tty1 root=PARTUUID=796ebf23-02 rootfstype=ext4 fsck.repair=yes rootwait resize quiet splash plymouth.ignore-serial-consoles cfg80211.ieee80211_regdom=CH systemd.run=/boot/firstrun.sh systemd.run_success_action=reboot systemd.unit=kernel-command-line.target

System Configuration

WiFi (re)configuration

Just as it happened with Alfred, the WiFi connection was not established even though the system booted just fine the first time. Instead of going through the menus with raspi-config, access via SSH was gained by connecting the device to the LAN, which naturally worked like a charm:

pi@roach:~ $ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 88:a2:9e:10:1b:5d brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.70/24 brd 192.168.0.255 scope global dynamic noprefixroute eth0
       valid_lft 86268sec preferred_lft 86268sec
    inet6 fe80::6e5d:6e2d:f3cf:d040/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: wlan0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc fq_codel state DOWN group default qlen 1000
    link/ether 88:a2:9e:10:1b:5e brd ff:ff:ff:ff:ff:ff

Additional WiFi networks

How to add a second WiFi network to your Raspberry Pi (updated for OS Bookworm) explains how the wpa_supplicant.conf file is no longer used to configure Wi-Fi connections and, instead, the current Raspberry Pi OS (based on Bookworm) uses NetworkManager to manage network connections, including Wi-Fi.

There is a separate configuration file for each WiFi connection under /etc/NetworkManager/system-connections, all it takes to configure additional WiFi connections is to

  1. Copy a working file with a new name (e.g. the SSID name).
  2. Replace the SSID and password.
  3. Replace the id with a new unique value of choice.
  4. Replace the uuid with a new unique value from running uuid.
  5. Set the permissions to 600

This can be done in advance of replacing WiFi access points, etc.

WiFi connections are not effective immediately after rebooting, but after a couple of minutes there is a new IP address assigned to the wireless device (wlan0):

pi@roach:~ $ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 88:a2:9e:10:1b:5d brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.70/24 brd 192.168.0.255 scope global dynamic noprefixroute eth0
       valid_lft 79805sec preferred_lft 79805sec
    inet6 fe80::6e5d:6e2d:f3cf:d040/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 88:a2:9e:10:1b:5e brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.71/24 brd 192.168.0.255 scope global dynamic noprefixroute wlan0
       valid_lft 84609sec preferred_lft 84609sec
    inet6 fe80::8194:2d69:f7fb:c23e/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

At this point the wired connecion to the LAN network can be removed.

Disable power save for WiFi

Raspberry Pi enables power save on WiFi by default:

[    5.598286] brcmfmac: F1 signature read @0x18000000=0x15264345
[    5.600446] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[    5.600754] usbcore: registered new interface driver brcmfmac
[    5.790052] brcmfmac: brcmf_c_process_txcap_blob: no txcap_blob available (err=-2)
[    5.790325] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/6 wl0: Aug 29 2023 01:47:08 version 7.45.265 (28bca26 CY) FWID 01-b677b91b
[    6.423812] brcmfmac: brcmf_cfg80211_set_power_mgmt: power save enabled

This can lead to losing connectivity in certain conditions, so disable power save of WiFi to avoid having to deal with such problems like Reconnect on WiFi drop.

$ sudo /sbin/iw dev wlan0 set power_save off

[ 1767.061929] brcmfmac: brcmf_cfg80211_set_power_mgmt: power save disabled

Fix locales

The above looks like rpi-imager took my PC’s locale settings:

-bash: warning: setlocale: LC_ALL: cannot change locale (en_US.UTF-8)

The solution is to generate en_US.UTF-8 and set it as the system default. To do this, run raspi-config and go into 5. Localisation Options then L1 Locale, enable en_US.UTF-8 and set it as the Default locale for the system environment.

$ sudo raspi-config
...
Generating locales (this might take a while)...
  en_GB.UTF-8... done
  en_US.UTF-8... done
Generation complete.

To Swap Or Not To Swap

With 8 GB of RAM there should be no reason to need disk swap, never mind that it would be rather fast in this system. Besides, Kubernetes doesn't like swap and similar issues may be encountered by other tools. On the other hand, running a desktop environment and compilers could lead to actually neededing swap.

Therefore, instead of directly disabling swap entirely, lets leave its default setup.

Debian 13 (Trixie), on which Raspberry Pi OS is based, introduced a different mechanism for enabling and disabling the swap file. View which swap units are running:

pi@roach:~ $ systemctl list-units --quiet --type=swap
  dev-zram0.swap loaded active active rpi-swap managed swap device (zram+file)

The default configuration is to automatically create swap when needed. To entirely disable it, create /etc/rpi/swap.conf.d/99-disable-swap.conf with the contents:

[Main]
Mechanism=none

Then stop the running swap unit:

pi@roach:~ $ sudo systemctl daemon-reload
pi@roach:~ $ systemctl list-units --quiet --type=swap
  dev-zram0.swap loaded active active Compressed Swap on /dev/zram0
pi@roach:~ $ sudo systemctl stop dev-zram0.swap
pi@roach:~ $ systemctl list-units --quiet --type=swap

But for now, let leave it at its default configuration.

Install latest updates

Before moving forward, make sure the system is up-to-date:

pi@roach:~ $ sudo apt update
Hit:1 http://deb.debian.org/debian trixie InRelease
Hit:2 http://deb.debian.org/debian trixie-updates InRelease
Hit:3 http://archive.raspberrypi.com/debian trixie InRelease
Hit:4 http://deb.debian.org/debian-security trixie-security InRelease
129 packages can be upgraded. Run 'apt list --upgradable' to see them.

$ sudo apt full-upgrade -y
Upgrading:
  agnostics         libssl3t64               raspi-utils          rpicam-apps-opencv-postprocess
  bluez-firmware    libswresample5           raspi-utils-core     rpicam-apps-preview
  chromium          libswscale8              raspi-utils-dt       rpinters
  chromium-common   libtiff6                 raspi-utils-eeprom   userconf-pi
  chromium-l10n     libvlc-bin               raspi-utils-otp      vlc
  chromium-sandbox  libvlc5                  raspinfo             vlc-bin
  ffmpeg            libvlccore9              rasputin             vlc-data
  firefox           lpplug-bluetooth         rc-gui               vlc-l10n
  ghostscript       lpplug-clock             rp-bookshelf         vlc-plugin-access-extra
  gui-pkinst        lpplug-ejecter           rp-prefapps          vlc-plugin-base
  gui-updater       lpplug-menu              rpcc                 vlc-plugin-notify
  libavcodec61      lpplug-netman            rpd-applications     vlc-plugin-qt
  libavdevice61     lpplug-power             rpd-common           vlc-plugin-samba
  libavfilter10     lpplug-updater           rpd-developer        vlc-plugin-skins2
  libavformat61     lpplug-volumepulse       rpd-graphics         vlc-plugin-video-output
  libavutil59       lxpanel-pi               rpd-preferences      vlc-plugin-video-splitter
  libcamera-ipa     mesa-libgallium          rpd-theme            vlc-plugin-visualization
  libcamera-tools   mesa-vulkan-drivers      rpd-utilities        wayvnc
  libcamera-v4l2    openjdk-21-jre           rpd-wayland-core     wf-panel-pi
  libcamera0.5      openjdk-21-jre-headless  rpd-wayland-extras   wfplug-bluetooth
  libdtovl0         openssl                  rpd-x-core           wfplug-clock
  libegl-mesa0      openssl-provider-legacy  rpd-x-extras         wfplug-connect
  libgbm1           pipanel                  rpi-chromium-mods    wfplug-ejecter
  libgl1-mesa-dri   piwiz                    rpi-connect          wfplug-menu
  libglx-mesa0      pplug-ejecter-data       rpi-eeprom           wfplug-netman
  libgpiolib0       pplug-netman-schema      rpi-firefox-mods     wfplug-power
  libgs-common      pplug-power-data         rpi-loop-utils       wfplug-updater
  libgs10           pplug-updater-data       rpi-swap             wfplug-volumepulse
  libgs10-common    pprompt                  rpi-userguide        xserver-common
  libpisp-common    python3-libcamera        rpicam-apps          xserver-xorg-core
  libpisp1          raindrop                 rpicam-apps-core
  libpostproc58     raspberrypi-sys-mods     rpicam-apps-encoder
  librpicam-app1    raspi-config             rpicam-apps-lite

Installing dependencies:
  alacarte  gir1.2-gmenu-3.0  gnome-menus  libgnome-menu-3-0  qt6ct

Summary:
  Upgrading: 129, Installing: 5, Removing: 0, Not Upgrading: 0
  Download size: 463 MB
  Space needed: 27.6 MB / 191 GB available

Update EEPROM

Then again, before moving forward, and especially because it was necessary to fix a Failed Argon installation on Alfred, use raspi-config to update the bootloader and set it to Latest (without resetting config). This updated the EEPROM from a May release to a November release, less than a week old:

pi@roach:~ $ sudo rpi-eeprom-update -l
/usr/lib/firmware/raspberrypi/bootloader-2712/default/pieeprom-2025-05-08.bin
pi@roach:~ $ ls -l /usr/lib/firmware/raspberrypi/bootloader-2712/default/
total 2152
-rw-r--r-- 1 root root 2097152 Nov  6 13:30 pieeprom-2025-05-08.bin
-rw-r--r-- 1 root root  102992 Nov  6 13:30 recovery.bin
pi@roach:~ $ sudo raspi-config
pi@roach:~ $ sudo rpi-eeprom-update -l
/usr/lib/firmware/raspberrypi/bootloader-2712/latest/pieeprom-2025-11-05.bin

Reboot after updating the EEPROM; and definitely before moving forward.

Argon case scripts

The instructions in page 10 of the Argon NEO 5 M.2 NVME PCIE case manual to install the scripts for FAN control seem simple enough:

Page 10 of Argon NEO 5 M.2 NVME PCIE case manual

curl https://download.argon40.com/argon-eeprom.sh | bash
pi@roach:~ $ curl https://download.argon40.com/argon-eeprom.sh | bash
% Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                Dload  Upload   Total   Spent    Left  Speed
100  1059  100  1059    0     0  16607      0 --:--:-- --:--:-- --:--:-- 16809
*************
Argon Setup
*************
Hit:1 http://deb.debian.org/debian trixie InRelease
Get:2 http://deb.debian.org/debian trixie-updates InRelease [47.3 kB]
Hit:3 http://archive.raspberrypi.com/debian trixie InRelease
Hit:4 http://deb.debian.org/debian-security trixie-security InRelease
Fetched 47.3 kB in 0s (485 kB/s)
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Calculating upgrade... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
BOOTLOADER: up to date
  CURRENT: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
  LATEST: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
  RELEASE: latest (/usr/lib/firmware/raspberrypi/bootloader-2712/latest)
            Use raspi-config to change the release.
Updating bootloader EEPROM
image: /usr/lib/firmware/raspberrypi/bootloader-2712/latest/pieeprom-2025-11-05.bin
config_src: blconfig device
config: /tmp/tmp43cskz0p/boot.conf
################################################################################
[all]
WAKE_ON_GPIO=0
POWER_OFF_ON_HALT=1
PCIE_PROBE=1
BOOT_UART=1
BOOT_ORDER=0xf416
NET_INSTALL_AT_POWER_ON=1

################################################################################

*** To cancel this update run 'sudo rpi-eeprom-update -r' ***

*** CREATED UPDATE /tmp/tmp43cskz0p/pieeprom.upd  ***

  CURRENT: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
  UPDATE: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
  BOOTFS: /boot/firmware
'/tmp/tmp.rxzVUvjeh8' -> '/boot/firmware/pieeprom.upd'

UPDATING bootloader. This could take up to a minute. Please wait

*** Do not disconnect the power until the update is complete ***

If a problem occurs then the Raspberry Pi Imager may be used to create
a bootloader rescue SD card image which restores the default bootloader image.

flashrom -p linux_spi:dev=/dev/spidev10.0,spispeed=16000 -w /boot/firmware/pieeprom.upd
Verifying update
VERIFY: SUCCESS
UPDATE SUCCESSFUL

After a required reboot, run the argonneo5.sh script too:

curl https://download.argon40.com/argonneo5.sh | bash
pi@roach:~ $ curl https://download.argon40.com/argonneo5.sh | bash
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                Dload  Upload   Total   Spent    Left  Speed
100  2171  100  2171    0     0  46338      0 --:--:-- --:--:-- --:--:-- 47195
*************
Argon Setup
*************
Hit:1 http://deb.debian.org/debian trixie InRelease
Hit:2 http://archive.raspberrypi.com/debian trixie InRelease
Hit:3 http://deb.debian.org/debian trixie-updates InRelease
Hit:4 http://deb.debian.org/debian-security trixie-security InRelease
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Calculating upgrade... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
BOOTLOADER: up to date
  CURRENT: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
    LATEST: Wed Nov  5 05:37:18 PM UTC 2025 (1762364238)
  RELEASE: latest (/usr/lib/firmware/raspberrypi/bootloader-2712/latest)
            Use raspi-config to change the release.
EEPROM settings up to date
*********************
  Setup Completed
*********************

Please reboot for changes to take effect

After another required reboot, the firware is ready and there is nothing to do.

Essential Software

Basic packages

Before moving forward, I like to install a few basics that make work easier, or on which subsequent packages depend:

$ sudo apt install -y bc git iotop-c netcat-openbsd rename speedtest-cli sysstat \
  vim python3-pip python3-influxdb python3-numpy python3-absl python3-unidecode

Fail2Ban

Just in case this system ever gets its port 22 exposed to the Internet, Fail2Ban scans log files and bans IP addresses conducting too many failed login attempts. It is a rather basic protection mechanism, and this system is not intended to have its SSH port open to the Internet, but it is so easy to install and enable that there is no excuse not to.

$ sudo apt-get install iptables fail2ban -y
$ sudo systemctl enable --now fail2ban

The configuration in /etc/fail2ban/jail.conf can be spiced up to make a little more trigger-happy:

# "bantime" is the number of seconds that a host is banned.
bantime  = 12h
# A host is banned if it has generated "maxretry" during the last "findtime"
# seconds.
findtime  = 90m
# "maxretry" is the number of failures before a host get banned.
maxretry = 3
# "bantime.increment" allows to use database for searching of previously banned ip's to increase a
# default ban time using special formula, default it is banTime * 1, 2, 4, 8, 16, 32...
bantime.increment = true

Then restart the service to pick the changes up:

$ sudo systemctl restart fail2ban

SSH Server

As a general good practice, even if this system won't have its SSH port open to the Internet, and on top of having Fail2ban enabled, SSH authetication should be allowed only with What is SSH Public Key Authentication?. Once the system arrives as it final destination, its final owner should add their own public keys are added to /home/pi/.ssh/authorized_keys and disable password authentication by setting PasswordAuthentication no in /etc/ssh/sshd_config.

This tutorial explains several concrete methods to the this on different platforms: Set up SSH public key authentication to connect to a remote system.

Additional Software

Additional Debian packages

The following packages are installed based on experience setting up desktop environments in other PCs, most recently Ubuntu Studio 24.04 for myself and a young artist.

$ sudo apt install -y gkrellm gkrellm-cpufreq geeqie id3v2 btop sox exiv2 rename \
  scrot python3-pip python3-selenium tor unrar ttf-mscorefonts-installer ffmpeg \
  iotop-c xdotool redshift-gtk inxi screen code

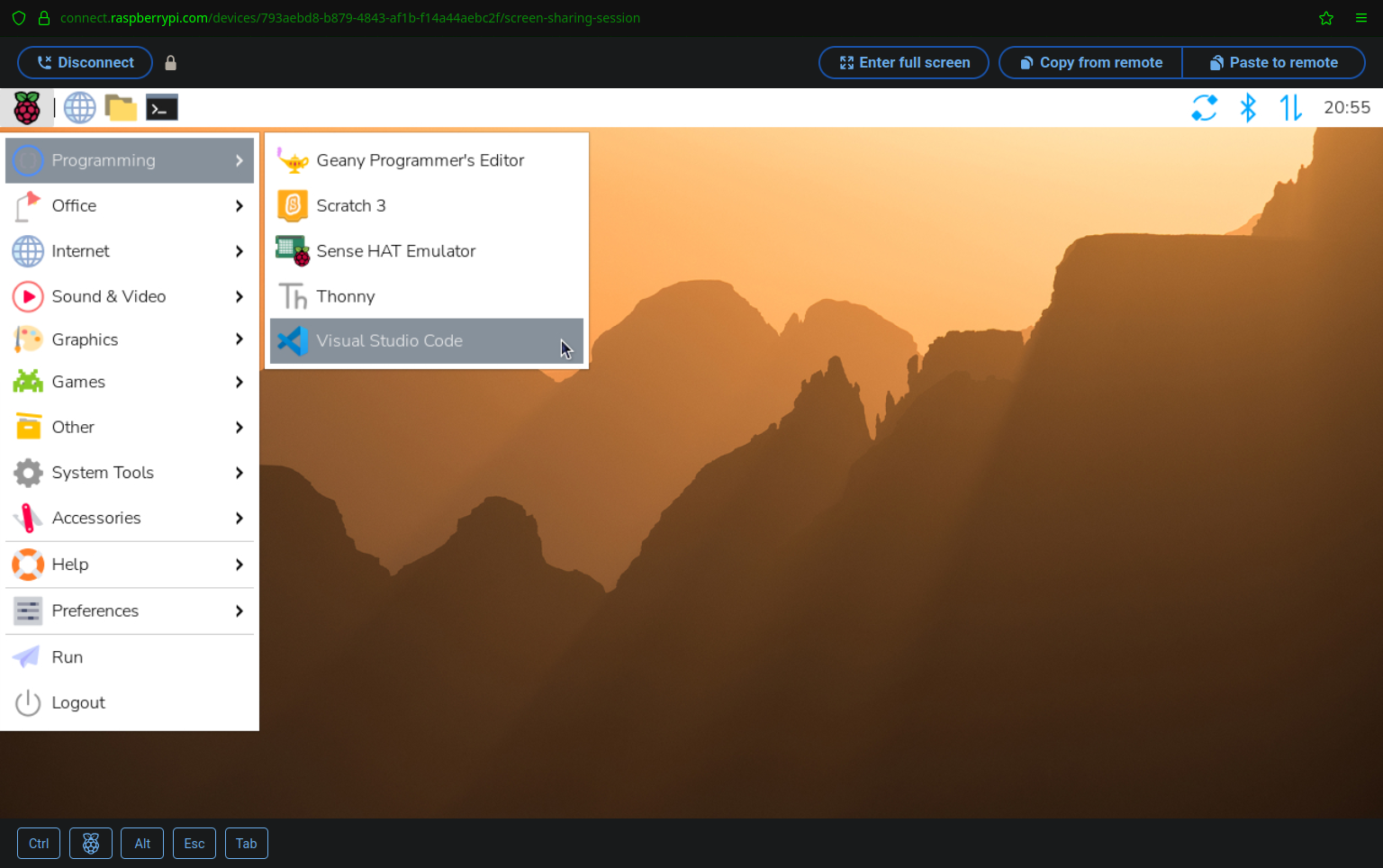

Visual Studio Code

Installing the code package is the canonical method to install VS Code on Raspberry Pi.

VS Code is not officially supported on Raspberry Pi, so it pays to keep an eye on their community discussions for update and known issues and workarounds. One notorious known issue has been freezes on Raspberry Pi 4, for which the workaround is to disable use of the GPU by adding this flag in /home/pi/.vscode/argv.json

{
  "disable-hardware-acceleration": true
}

This workaround may not be necessay for the more recent versions of VS Code, and the version installed at the time of writting is 1.105.1.

Raspberry Pi Connect

Raspberry Pi Connect provides secure access to your Raspberry Pi from anywhere in the world. While it is unsurprisingly a little laggy, it works well enough to use the desktop environment from any web browser anywhere without a complicated setup.

Following the instructions is simple and quick enough to access the desktop environment within a couple of minutes, it can be enabled and disabled any time through SSH and it can also be added to (and remove from) a Raspberry Pi Connect account very easily.

To connect, start the rpi-connect service and create a URL to sing in, then visit that URL with the browser with an active session on https://connect.raspberrypi.com/

pi@roach:~ $ rpi-connect on
✓ Raspberry Pi Connect started
pi@roach:~ $ rpi-connect signin
Complete sign in by visiting https://connect.raspberrypi.com/verify/XEKA-TPFN

✓ Signed in

Once the device is signed in, it shows up at https://connect.raspberrypi.com/devices and it's just two clicks to open the desktop environment in a new browser window:

Raspberry Pi Connect - VS Code in the menu

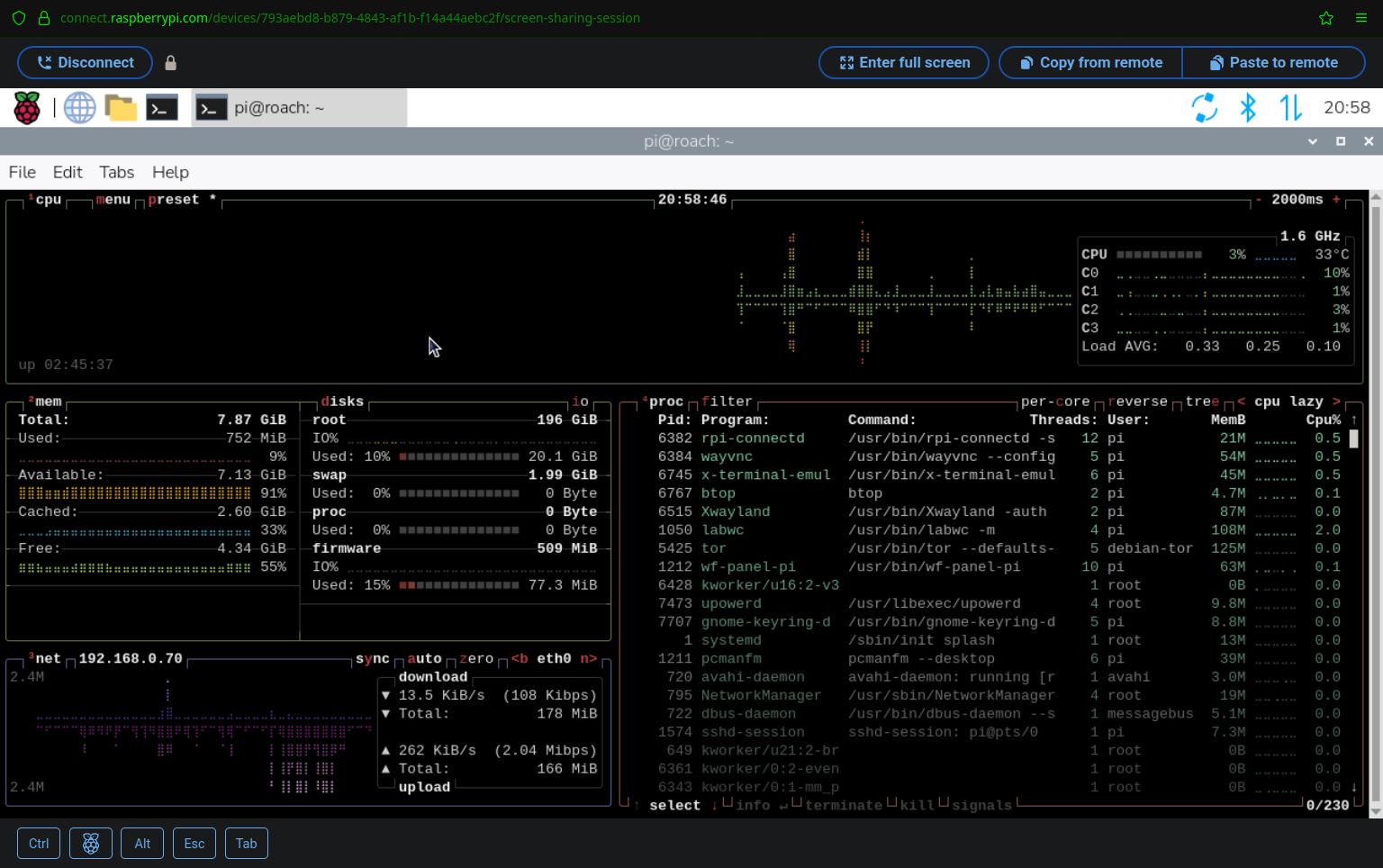

Raspberry Pi Connect - Terminal running btop

Once this access is no longer necessary, the service can be disabled on the Raspberry Pi by simply running rpi-connect off and running rpi-connect signout before will deassociated from the previously used Raspberry Pi Connect account.

pi@roach:~ $ rpi-connect signout
✓ Signed out
pi@roach:~ $ rpi-connect off
✓ Raspberry Pi Connect stopped
