Remote access options for self-hosted services
Running self-hosted services behind a router that allows port forwarding is mostly as simple as forwarding a few ports, mainly 443 for everything over HTTPS and port 80 for automatically renewing Let's Encrypt certificates.
Otherwise, being behind a router that either doens't allow port forwarding, or just doesn't work well, or being behind CGNAT, may require the use of some sort of tunnels to route inbound traffic using outbound connections. This can also be useful even in the above case, when multiple systems need to be reachable on port 80.
Cloudflare tunnels do not enable access on port 80.
Cloudflare redirects port 80 to 443, to upgrade HTTP connections to HTTPS. That means ACME HTTP-01 challenges to renew Let's Encrypt certificates need to be routed to the relevant port (80 or 32080) based on the request path; see Let's Encrypt via tunnel.
Options considered
Making applications (ports) reachable from outside will require a different approach and implementation depending on the type of traffic served by the application behind each port:
-
HTML non-sensitive content can easibly be made available through a Cloudflare Tunnel. These are free to use and easy to setup, with the caveats that
- Traffic must be decrypted by Cloudflare, to apply certain traffic filters, even if everything is then (re-)encrypted between Cloudflare and each service.
- Traffic must be either HTML content or low-bandwidth non-HTML content. Cloudflare does not allow, at least when using their tunnels for free, to stream high-bandwidth multi-media content: audio, video, photos, videogame client-to-server communication, etc.
-
HTML sensitive content may also be made available through a Cloudflare Tunnel; Zero Trust Access can be used to limit access to each application (port) based on a number of rules, including user's identity as verified by 3P SSO providers (e.g. Google account).
-
Non-HTML sensitive content may also be made available through a Cloudflare Tunnel; Non-HTTP applications require connecting your private network to Cloudflare which, again, means that Cloudflare is decrypting traffic (to inspected it and apply filters) to then re-encrypt it again. Then again, this may only be used for low-bandwidth non-HTML content, e.g. SSH sessions. Ideally with password authentication disabled!
-
Non-HTML sensitive
or high-bandwidthcontent can also be made reachable externally, through the use of Tailscale Funnel (or similar) to establish fully-encrypted (TLS passthrough) tunnels between sites (LANs) and a few trusted clients. However, this is only suitable for low-bandwidth applications, and there is no way of knowing how tightly bandwidth is restricted. -
Non-HTML high-bandwidth content (sensitive or not) seems to be only practical to expose by opening and forwarding ports; as much as this seems to be the method most people recommend against. This is also the method that just won't work when working with a defective or restriced router, or behind CGNAT.
Options chosen
With the above considerations, each of those options would seem to best match the relevant self-hosted services as follows:
-
Cloudflare Tunnel can be used for non-sensitive, or at least not-too-sensitive, HTML content:
- automatically renewing Let's Encrypt certificates over plain HTTP on port 80.
- InfluxDB already serving over HTTPS and not-too-sensitive; basic PC monitoring.
-
Cloudflare Tunnel can also be used for sensitive HTML content, when combined with Zero Trust Access to restrict access to each service:
-
Tailscale Funnel must be used for those applications that transfer mostly non-HTML content:
-
Port forwarding may still be needed for non-HTTP services that are meant to be accessible by technically not trusted clients, i.e. without Tailscale. This would be mostl video game servers, of which there is so far only
DNS records are setup to point the various <service>.<node>.uu.am to the external IP
address of the router, with port 80 redirected to one node's port 32080, so that
HTTPS certificates can be renewed automatically, and port 443 pointing to Nginx on one
node. While it is possible to access Nginx on additional nodes by forwarding a different
port, the automated renewals of HTTPS certificates is only possible over port 80.
This limitation may mean the node that is rechable through the external port 80 is the only one that can serve high-bandwidth content directly via port forwarding. All other nodes will need to use Cloudflare tunnels, and thus be restricted to HTML-only or low-bandwidth traffic, or use Tailscale Funnel to serve high-bandwidth traffic, and thus be restricted to specific clients.
Cloudflare
To get started with Cloudflare, create account and a team (e.g. high-energy-building),
select the Free plan, enter billing details and checkout. Make sure to enable 2FA
authentiction and take a look around for other settings to personalize.
Add the first site
Adding a site
is required before creating a tunnel. This can be an external domain, although it requires
replacing that domain's DNS with the one from Cloudflare. It seems most convenient to have
a dedicated domain for self-hosted applications, to be used mostly, if not exclusively,
through Cloudflare tunnels. For this purpose, I've registered very-very-dark-gray.top
with Porkbun and cleared the default DNS records, which removed their
parking domain.
Start at the Account Home in dash.cloudflare.com, enter the new domain and select the option to Manually enter DNS records since there is none anyway. Scroll down to select the Free plan and continue to start adding DNS records.
Having no DNS records yet, 3 warnings are shown about missing an MX record to for
emails to @very-very-dark-gray.top addresses and missing A/AAAA/CNAME records
for the root domain and www. All that is fine, there is no need for those.
As a quick test, add a subdomain for alfred pointing to the router's external
IPv4 address and let it be proxied by Cloudflare to see how that goes. Then
replace the DNS for this domain with the ones from Cloudflare's, and wait.
Once the change is live, go under DNS > Settings in Cloudflare and Enable DNSSEC.
Cloudflare Tunnels
Tunnels are very easy to setup; accessing applications behind them not necessarily so much. Cloudflare Tunnels in Alfred involved an unfair amount of troubleshooting to get the Kubernetes dashboard to work at https://kubernetes-alfred.very-very-dark-gray.top/, eventually using it's own Let's Encrypt certificates.
Cloudflare Access
Zero Trust Web Access builds on top of the previous setup; once an applications is made available through a tunnel, restricting access to a fixed set of users (e.g. Google accounts) requires only a few more steps:
-
Set up Google as an identity provider, which requires creating an OAuth Client ID in the Google Cloud Console.
The OAuth client will be limited to a list of (max 100) test users, which is more than enough but those users have to be manually added in the Google Cloud Console, under /auth/audience?project=very-very-dark-gray.
-
Create a Policy (e.g Google Account) to Allow only a few users, with only one Include rule to match those users' email addresses.
-
- Choose self-hosted application and name it after the public
host it will expose (e.g.
kubernetes-alfred). - Add a Public hostname (https://kubernetes-alfred.very-very-dark-gray.top/)
- Add only the Google Account policy, so that only users that match that policy are allowed.
- To authenicate those users, enable only the Google authentication in Login methods.
- Finally, enable Instant Auth.
- Then accept the defaults in the next two pages and Save.
- Choose self-hosted application and name it after the public
host it will expose (e.g.
-
If this application will need to renew its own Let's Encrypt certificates, create another Policy called to Bypass all authentication mechanisms, and set the selector to Everyone as in the examples for the action Bypass.
-
Then create another Access application as the previou one, with these changes:
- Set the same as
kubernetes-alfred-well-known. - Add the same Public hostname with Path set to
.well-known. - Add only the Bypass policy.
- Then accept the defaults in the next two pages and Save.
- Set the same as
So long as only one policy is added to the applications and that policy has only one Include rule, only those users added to that Include rule are allowed in.
Additional sources of inspiration (not reference):
Tailscale
Tailscale quickstart explains the basics and how to get started as a personal user.
Create a tailnet
Create a tailnet
by singing up with your choice of identity provider; e.g. signging up with a @gmail.com
account automatically set the tailnet up so that other @gmail.com users can be invited
to form part of the "team". Choosing the Personal Plan keeps the service free of charge,
there is not even a requirement to setup a valid billing method (e.g. credit card).
The quickstart wizard will wait until Tailscale is installed on 2 systems, e.g. a
server and a PC. The installation process is as simple as running their install.sh script:
Installation of Tailscale on alfred
pi@alfred:~ $ curl -fsSL https://tailscale.com/install.sh | sh
Installing Tailscale for debian bookworm, using method apt
+ sudo mkdir -p --mode=0755 /usr/share/keyrings
+ curl -fsSL https://pkgs.tailscale.com/stable/debian/bookworm.noarmor.gpg
+ sudo tee /usr/share/keyrings/tailscale-archive-keyring.gpg
+ sudo chmod 0644 /usr/share/keyrings/tailscale-archive-keyring.gpg
+ curl -fsSL https://pkgs.tailscale.com/stable/debian/bookworm.tailscale-keyring.list
+ sudo tee /etc/apt/sources.list.d/tailscale.list
# Tailscale packages for debian bookworm
deb [signed-by=/usr/share/keyrings/tailscale-archive-keyring.gpg] https://pkgs.tailscale.com/stable/debian bookworm main
+ sudo chmod 0644 /etc/apt/sources.list.d/tailscale.list
+ sudo apt-get update
Hit:1 http://deb.debian.org/debian bookworm InRelease
Hit:2 http://archive.raspberrypi.com/debian bookworm InRelease
Hit:3 https://download.docker.com/linux/debian bookworm InRelease
Hit:4 http://deb.debian.org/debian-security bookworm-security InRelease
Hit:5 http://deb.debian.org/debian bookworm-updates InRelease
Hit:6 https://baltocdn.com/helm/stable/debian all InRelease
Hit:7 https://prod-cdn.packages.k8s.io/repositories/isv:/kubernetes:/core:/stable:/v1.32/deb InRelease
Get:8 https://pkgs.tailscale.com/stable/debian bookworm InRelease
Get:9 https://pkgs.tailscale.com/stable/debian bookworm/main armhf Packages [12.2 kB]
Get:10 https://pkgs.tailscale.com/stable/debian bookworm/main arm64 Packages [12.3 kB]
Get:11 https://pkgs.tailscale.com/stable/debian bookworm/main all Packages [354 B]
Fetched 31.4 kB in 1s (29.4 kB/s)
Reading package lists... Done
+ sudo apt-get install -y tailscale tailscale-archive-keyring
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following packages were automatically installed and are no longer required:
linux-headers-6.6.51+rpt-common-rpi linux-kbuild-6.6.51+rpt
Use 'sudo apt autoremove' to remove them.
The following NEW packages will be installed:
tailscale tailscale-archive-keyring
0 upgraded, 2 newly installed, 0 to remove and 0 not upgraded.
Need to get 29.6 MB of archives.
After this operation, 56.1 MB of additional disk space will be used.
Get:2 https://pkgs.tailscale.com/stable/debian bookworm/main all tailscale-archive-keyring all 1.35.181 [3,082 B]
Get:1 https://pkgs.tailscale.com/stable/debian bookworm/main arm64 tailscale arm64 1.82.0 [29.6 MB]
Fetched 29.6 MB in 15s (2,040 kB/s)
Selecting previously unselected package tailscale.
(Reading database ... 91338 files and directories currently installed.)
Preparing to unpack .../tailscale_1.82.0_arm64.deb ...
Unpacking tailscale (1.82.0) ...
Selecting previously unselected package tailscale-archive-keyring.
Preparing to unpack .../tailscale-archive-keyring_1.35.181_all.deb ...
Unpacking tailscale-archive-keyring (1.35.181) ...
Setting up tailscale-archive-keyring (1.35.181) ...
Setting up tailscale (1.82.0) ...
Created symlink /etc/systemd/system/multi-user.target.wants/tailscaled.service → /lib/systemd/system/tailscaled.service.
+ [ false = true ]
+ set +x
Installation complete! Log in to start using Tailscale by running:
sudo tailscale up
Installation of Tailscale on rapture
$ curl -fsSL https://tailscale.com/install.sh | sh
Installing Tailscale for ubuntu noble, using method apt
+ sudo mkdir -p --mode=0755 /usr/share/keyrings
+ curl -fsSL https://pkgs.tailscale.com/stable/ubuntu/noble.noarmor.gpg
+ sudo tee /usr/share/keyrings/tailscale-archive-keyring.gpg
+ sudo chmod 0644 /usr/share/keyrings/tailscale-archive-keyring.gpg
+ curl -fsSL https://pkgs.tailscale.com/stable/ubuntu/noble.tailscale-keyring.list
+ sudo tee /etc/apt/sources.list.d/tailscale.list
# Tailscale packages for ubuntu noble
deb [signed-by=/usr/share/keyrings/tailscale-archive-keyring.gpg] https://pkgs.tailscale.com/stable/ubuntu noble main
+ sudo chmod 0644 /etc/apt/sources.list.d/tailscale.list
+ sudo apt-get update
Hit:1 http://ch.archive.ubuntu.com/ubuntu noble InRelease
Hit:2 https://brave-browser-apt-release.s3.brave.com stable InRelease
Hit:3 https://repo.steampowered.com/steam stable InRelease
Hit:4 http://ch.archive.ubuntu.com/ubuntu noble-updates InRelease
Hit:5 http://archive.ubuntu.com/ubuntu noble InRelease
Hit:6 http://ch.archive.ubuntu.com/ubuntu noble-backports InRelease
Hit:7 https://packages.microsoft.com/repos/code stable InRelease
Hit:8 https://dl.google.com/linux/chrome/deb stable InRelease
Hit:9 http://archive.ubuntu.com/ubuntu noble-updates InRelease
Hit:10 https://esm.ubuntu.com/apps/ubuntu noble-apps-security InRelease
Hit:11 https://esm.ubuntu.com/apps/ubuntu noble-apps-updates InRelease
Hit:12 https://esm.ubuntu.com/infra/ubuntu noble-infra-security InRelease
Hit:13 https://esm.ubuntu.com/infra/ubuntu noble-infra-updates InRelease
Hit:14 http://security.ubuntu.com/ubuntu noble-security InRelease
Get:15 https://pkgs.tailscale.com/stable/ubuntu noble InRelease
Get:16 https://pkgs.tailscale.com/stable/ubuntu noble/main all Packages [354 B]
Get:17 https://pkgs.tailscale.com/stable/ubuntu noble/main i386 Packages [12.2 kB]
Get:18 https://pkgs.tailscale.com/stable/ubuntu noble/main amd64 Packages [12.7 kB]
Fetched 31.8 kB in 1s (23.3 kB/s)
Reading package lists... Done
N: Skipping acquire of configured file 'main/binary-i386/Packages' as repository 'https://brave-browser-apt-release.s3.brave.com stable InRelease' doesn't support architecture 'i386'
+ sudo apt-get install -y tailscale tailscale-archive-keyring
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following NEW packages will be installed:
tailscale tailscale-archive-keyring
0 upgraded, 2 newly installed, 0 to remove and 0 not upgraded.
Need to get 31.5 MB of archives.
After this operation, 59.1 MB of additional disk space will be used.
Get:2 https://pkgs.tailscale.com/stable/ubuntu noble/main all tailscale-archive-keyring all 1.35.181 [3,082 B]
Get:1 https://pkgs.tailscale.com/stable/ubuntu noble/main amd64 tailscale amd64 1.82.0 [31.5 MB]
Fetched 31.5 MB in 14s (2,258 kB/s)
Selecting previously unselected package tailscale.
(Reading database ... 491341 files and directories currently installed.)
Preparing to unpack .../tailscale_1.82.0_amd64.deb ...
Unpacking tailscale (1.82.0) ...
Selecting previously unselected package tailscale-archive-keyring.
Preparing to unpack .../tailscale-archive-keyring_1.35.181_all.deb ...
Unpacking tailscale-archive-keyring (1.35.181) ...
Setting up tailscale-archive-keyring (1.35.181) ...
Setting up tailscale (1.82.0) ...
Created symlink /etc/systemd/system/multi-user.target.wants/tailscaled.service → /usr/lib/systemd/system/tailscaled.service.
+ [ false = true ]
+ set +x
Installation complete! Log in to start using Tailscale by running:
sudo tailscale up

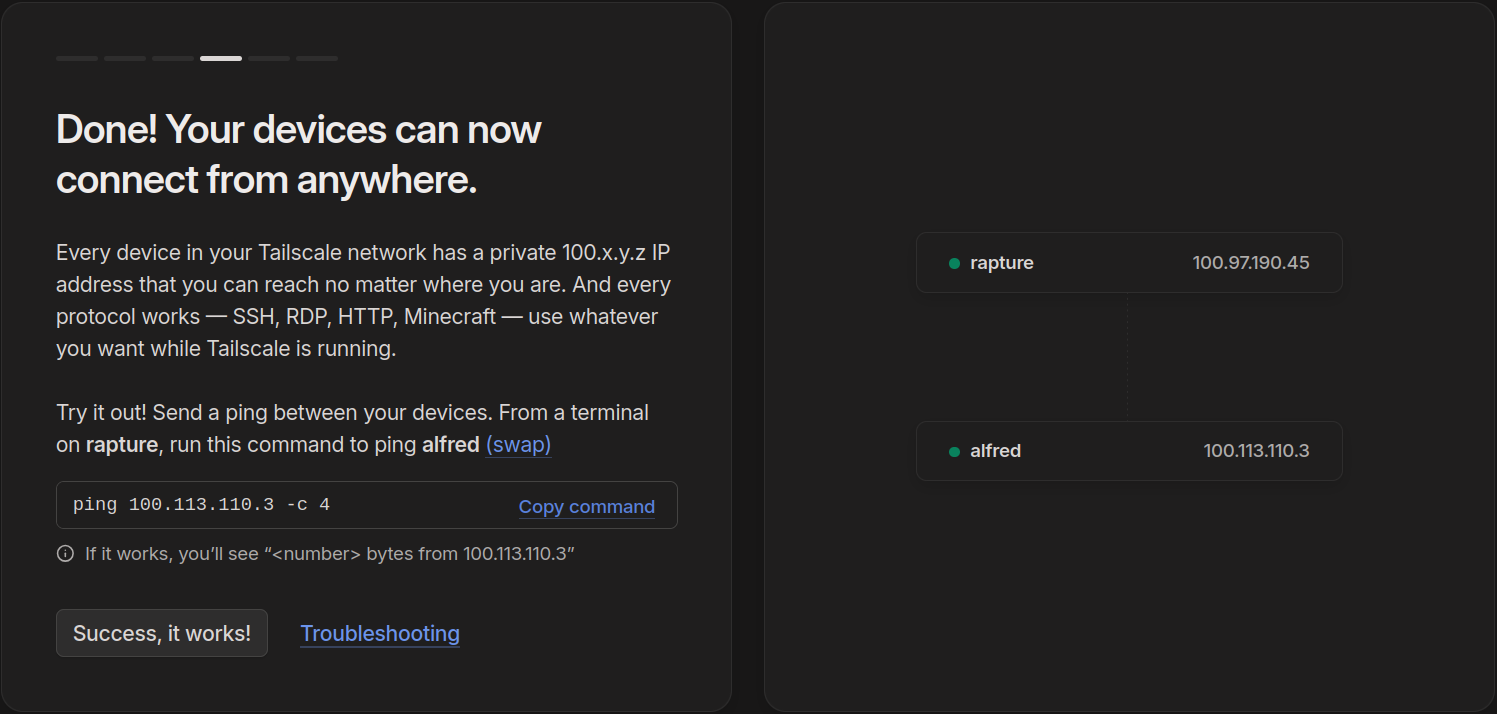

After installing the software, running sudo tailscale up will provide a URL to
authenticate and the system will show up as ready in the wizard:
Repeat the process with the second system and the wizzard will show both as active; along with a useful test to check that all is working well:
Every device in your Tailscale network has a private 100.x.y.z IP address that you can reach no matter where you are. And every protocol works — SSH, RDP, HTTP, Minecraft — use whatever you want while Tailscale is running.
And indeed that just works; an SSH connection to [email protected] instantly connects
to alfred and SSH key authentication just works (after accepting this new hostname).
From this point on, one can connect more devices, by repeating the above 2 steps: install Tailscale, then authenticate it to join this tailnet. It may be a good idea to add all desired devices before proceeding to additional configuration changes, such as
- Set up DNS, to more easily connect to devices.
- Share a node with users on other networks.
- Set up access controls to limit which devices can talk to each other.
Set up DNS
The first step when setting up DNS, although optional, should be to rename the tailnet to a more memorable ("fun") name. There is a limited number of 4 randomly generated names to pick from, which one can reroll many times but will never, probably by design, contain only dictionary words. Some of the "funniest" names offered were:
blenny-godzilla.ts.netchicken-fujita.ts.netocelot-betelgeuse.ts.netraptor-penny.ts.netroyal-penny.ts.netrisk-truck.ts.netxantu-lizard.ts.net
The tailnet name is not too important, so just pick the first one that isn't too long or hard to spell, then try re-rolling a few times just in a case a better one shows up.
MagicDNS being enabled by default, it should be
possible to ping or SSH directly to alfred.royal-penny.ts.net, etc.
$ ping alfred.royal-penny.ts.net
PING alfred.royal-penny.ts.net (100.113.110.3) 56(84) bytes of data.
64 bytes from alfred.royal-penny.ts.net (100.113.110.3): icmp_seq=1 ttl=64 time=5.51 ms
64 bytes from alfred.royal-penny.ts.net (100.113.110.3): icmp_seq=2 ttl=64 time=4.92 ms
64 bytes from alfred.royal-penny.ts.net (100.113.110.3): icmp_seq=3 ttl=64 time=5.37 ms
^C
--- alfred.royal-penny.ts.net ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2002ms
rtt min/avg/max/mdev = 4.921/5.264/5.505/0.249 ms
Note
MagicDNS seems to need some time to propagate, so that for several minutes (possibly a few hours) after connecting each host, its name will not resolve.
Once DNS has propagated, it is also possible to SSH directly to any host by its FQDN.
DNS alias with CNAME

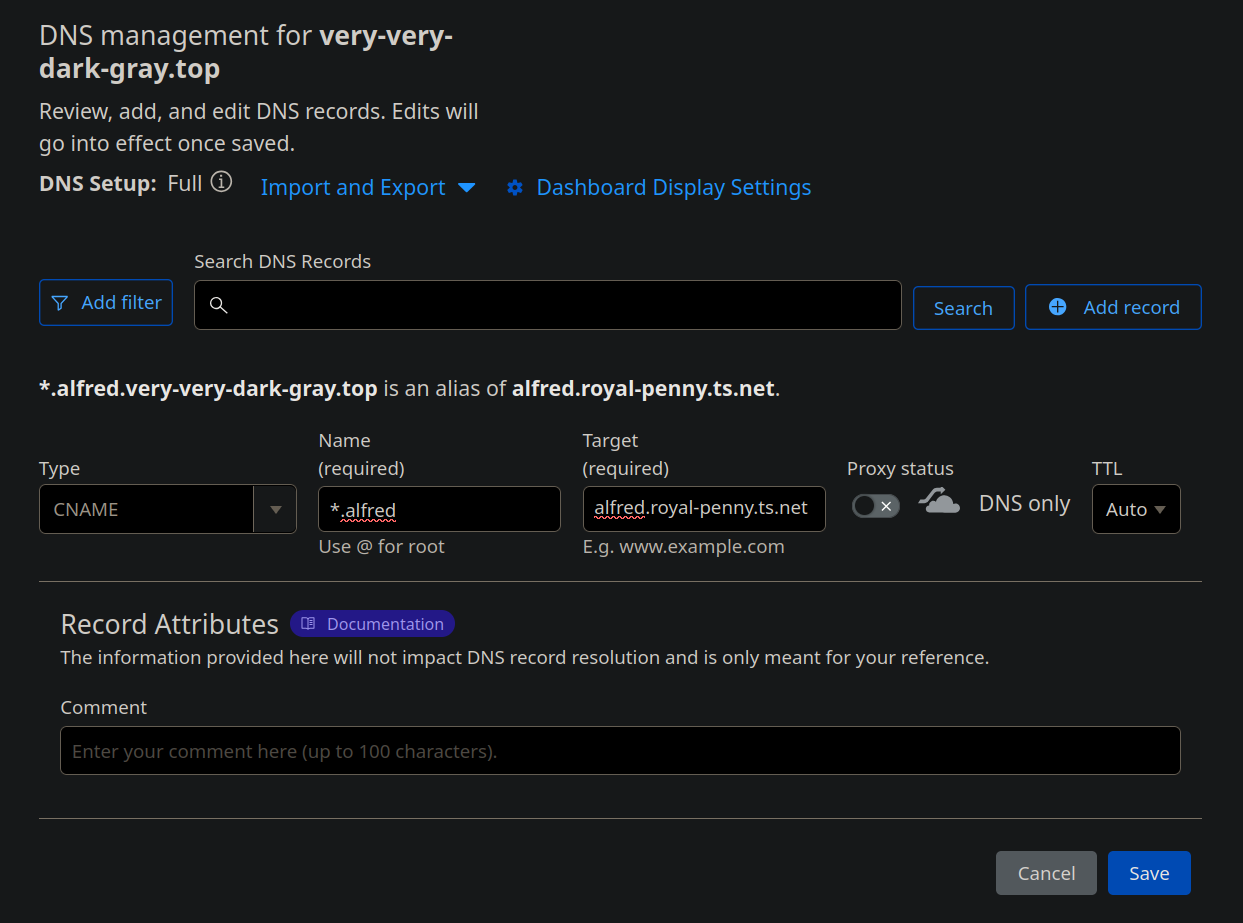

To make web services more easily available, one can add a CNAME record for a publicly
reachable domain to redirect every hostname under a subdomain to a specirfic host (node)
in the tailnet, e.g. redirect everything under .alfred.very-very-dark-gray.top to the
alfred node, disabling traffic proxying so that this is only a DNS only redirect:
Unfortunately, this does not support adding a port number, so the services would only be available when listening on standard ports, e.g. when using a LoadBalancer IP in
Kubernetes nodes. However, whether it's because a LoadBalancer IP is not the same as the
node's IP, or something else, HTTPS connections are rejected on port 443 (but not 22):
$ telnet 100.113.110.3 443
Trying 100.113.110.3...
telnet: Unable to connect to remote host: Connection refused
$ telnet 100.113.110.3 22
Trying 100.113.110.3...
Connected to 100.113.110.3.
Escape character is '^]'.
SSH-2.0-OpenSSH_9.2p1 Debian-2+deb12u5
^]
telnet>
Connection closed.
It seems services can only be accessed through NodePort ports,
$ curl -k https://kubernetes.alfred.very-very-dark-gray.top/
curl: (7) Failed to connect to kubernetes.alfred.very-very-dark-gray.top port 443 after 1 ms: Couldn't connect to server
$ curl 2>/dev/null \
-H "Host: kubernetes-alfred.very-very-dark-gray.top" \
-k https://kubernetes.alfred.very-very-dark-gray.top:32035/ \
| head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
However, exposing port 80 and redirecting it to a different NodePort, as needed for
automatically renewing Let's Encrypt certificates,
does not seem to be possible. HTTPS access should be setup differently, as follows.
Set up HTTPS access
Exposing Kubernetes services throuth Tailscale requires the use of the
Kubernetes operator, which involves
the following one-time (per node/host) setup and one additional Ingress per service.
Tailscale Kubernetes operator
Securely Exposing Applications on Kubernetes With Tailscale using the Tailscale Kubernetes operator and the Tailscale Ingress Controller enables access over HTTPS with valid (signed) SSL certificates from within your tailnet.
Create a tailscale namespace and allow privilege escalation via a namespace label:
$ kubectl create namespace tailscale
namespace/tailscale created
$ kubectl label namespace tailscale pod-security.kubernetes.io/enforce=privileged
namespace/tailscale labeled
Edit Tailscale ACL to set the following
tagOwners:
Create an Oauth Client, with a unique
name (e.g. k8s-operator or k8s-operator-alfred) and read/write access to
Devices > Core and Keys > Auth Keys, with the k8s-operator tag in both.
Copy the Client ID and secret, keep them safe because these will never be provided
again. Then install the Tailscale Kubernetes operator with Helm using these:
$ helm repo add tailscale https://pkgs.tailscale.com/helmcharts && helm repo update
"tailscale" has been added to your repositories
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "kubernetes-dashboard" chart repository
...Successfully got an update from the "ingress-nginx" chart repository
...Successfully got an update from the "jetstack" chart repository
...Successfully got an update from the "tailscale" chart repository
Update Complete. ⎈Happy Helming!⎈
$ helm upgrade \
--install \
tailscale-operator \
tailscale/tailscale-operator \
--namespace=tailscale \
--create-namespace \
--set-string oauth.clientId="_________________" \
--set-string oauth.clientSecret="tskey-client-_________________-__________________________________" \
--wait
Release "tailscale-operator" does not exist. Installing it now.
NAME: tailscale-operator
LAST DEPLOYED: Sun Apr 13 16:58:26 2025
NAMESPACE: tailscale
STATUS: deployed
REVISION: 1
TEST SUITE: None
Before proceeding further,
enabling HTTPS
is required to make Kubernetes accessible over Tailscale Ingress operator.
After enabling HTTPS in the Tailscale console, a certificate must be requested from each
server by running tailscale cert:
$ sudo tailscale cert alfred.royal-penny.ts.net
Wrote public cert to alfred.royal-penny.ts.net.crt
Wrote private key to alfred.royal-penny.ts.net.key
Using the Tailscale Ingress Controller is now possible by adding a new Ingress, e.g.
the Kubernetes dashboard in alfred
can be now exposed at https://kubernetes-alfred.royal-penny.ts.net by adding this
Ingress in nginx-ingress.yaml:
| dashboard/nginx-ingress.yaml | |
|---|---|
This new Ingress needs its own unique metadata.name.
This new Ingress needs its own unique name, hence the addition of
-tailscale to the name above.
Otherwise, while DNS takes hours about 2 days to propagate access to the Tailscale Ingress, the previously working setup to access the Ingress for
https://kubernetes-alfred.very-very-dark-gray.top/ starts
returning 404 Not Found immediately. The reason could not be determined even by
adding error-log-level: debug to nginx-baremetal.yaml, but the issue becomes apparent when listing
all Ingress before and after adding the Tailscale Ingress:
Before:
$ kubectl get ingress -A
NAMESPACE NAME CLASS HOSTS ADDRESS PORTS AGE
kubernetes-dashboard kubernetes-dashboard internal-nginx localhost 80, 443 53d
kubernetes-dashboard kubernetes-dashboard-ingress nginx kubernetes-alfred.very-very-dark-gray.top,k8s.alfred.uu.am 192.168.0.121 80, 443 26d
After:
$ kubectl get ingress -A
NAMESPACE NAME CLASS HOSTS ADDRESS PORTS AGE
kubernetes-dashboard kubernetes-dashboard internal-nginx localhost 80, 443 53d
kubernetes-dashboard kubernetes-dashboard-ingress tailscale * kubernetes-alfred.royal-penny.ts.net 80, 443 26d
The nginx (class) Ingress is replaced by the tailscale (class) Ingress
and thus https://kubernetes-alfred.very-very-dark-gray.top/ is no longer mapped.
Avoid this by using unique metadata.name values within each namespace.
Removing the Tailscale Ingress immediately restored access to the previously setup Nginx Ingress the first time, but doing the same 2 days later did not have the same effect; the Dashboard at the Cloudflare subdomain did not became available again, while the Dashboard finally available on the Tailscale subdomain also became unavailable.
To make this even worse, removing the Ingress and adding it back later will result in a different Tailscale IP address being assigned to it, so that's another 2 days of waiting until DNS records propagate.
$ kubectl apply -f dashboard/nginx-ingress.yaml
ingress.networking.k8s.io/kubernetes-dashboard-ingress unchanged
ingress.networking.k8s.io/kubernetes-dashboard-ingress configured
$ kubectl get ingress -A
NAMESPACE NAME CLASS HOSTS ADDRESS PORTS AGE
kubernetes-dashboard kubernetes-dashboard internal-nginx localhost 80, 443 53d
kubernetes-dashboard kubernetes-dashboard-ingress nginx kubernetes-alfred.very-very-dark-gray.top,k8s.alfred.uu.am 192.168.0.121 80, 443 26d
kubernetes-dashboard kubernetes-dashboard-ingress-tailscale tailscale * kubernetes-alfred.royal-penny.ts.net 80, 443 54s

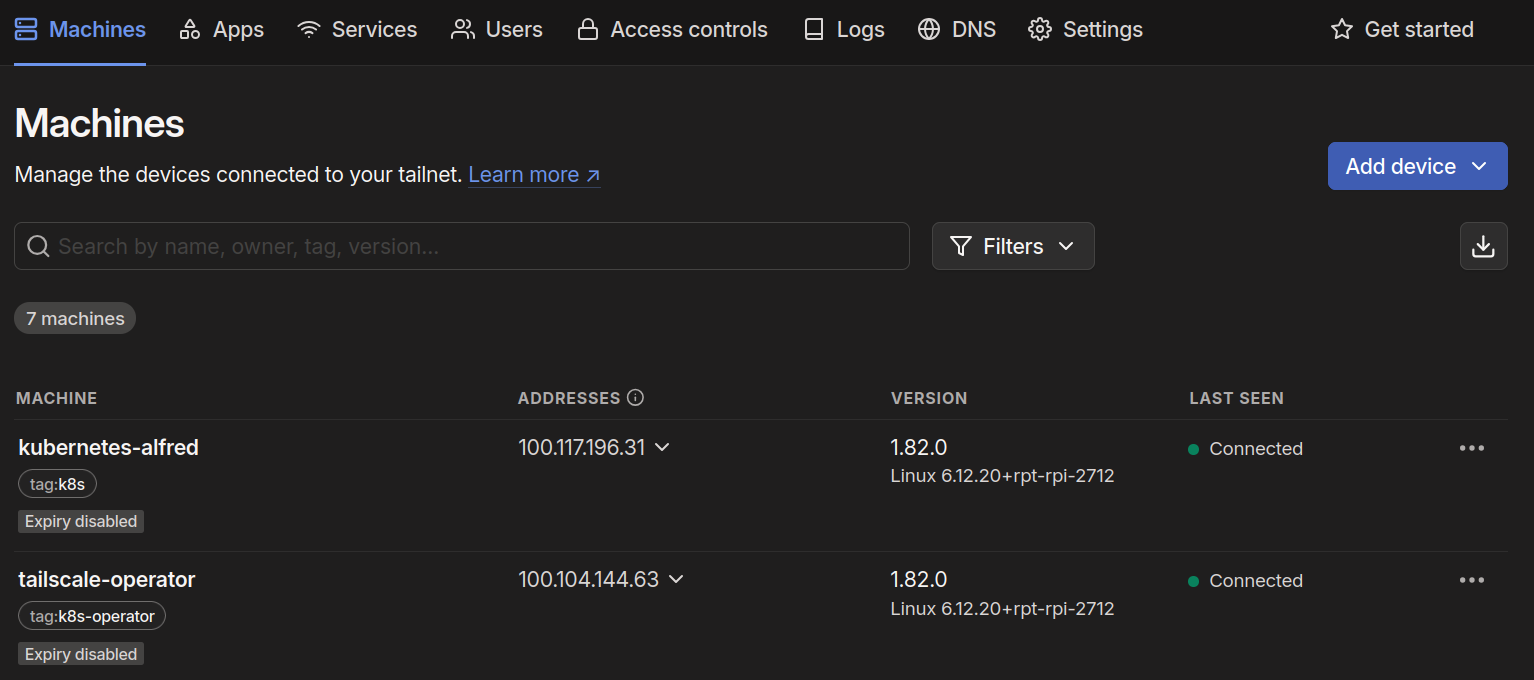

After applying this change, the new service kubernetes-alfred shows up in the list of
Machines in the Tailscale console:
Access can be tested with curl (from within the tailnet):
$ curl 2>/dev/null \
-k https://kubernetes-alfred.royal-penny.ts.net/ \
| head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
Then again, MagicDNS takes a while to propagate to public DNS.
Even from another host in the same tailnet, this test will fail for the first few hours:
$ curl -k https://kubernetes-alfred.royal-penny.ts.net/
curl: (6) Could not resolve host: kubernetes-alfred.royal-penny.ts.net
This is because, even when querying the tailnet DNS server, the new host is not yet resolved:
$ dig kubernetes-alfred.royal-penny.ts.net 100.100.100.100
; <<>> DiG 9.18.30-0ubuntu0.24.04.2-Ubuntu <<>> kubernetes-alfred.royal-penny.ts.net 100.100.100.100
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NXDOMAIN, id: 57292
;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;kubernetes-alfred.royal-penny.ts.net. IN A
In the meantime, only in the tailnet node where the Tailscale Kubernetes operator is running, the new host is already resolved:
$ dig kubernetes-alfred.royal-penny.ts.net 100.100.100.100
; <<>> DiG 9.18.33-1~deb12u2-Debian <<>> kubernetes-alfred.royal-penny.ts.net 100.100.100.100
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 41209
;; flags: qr aa rd ra ad; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0
;; QUESTION SECTION:
;kubernetes-alfred.royal-penny.ts.net. IN A
;; ANSWER SECTION:
kubernetes-alfred.royal-penny.ts.net. 600 IN A 100.74.213.20
From that host, even querying the default (system) DNS already resolves the new host:
$ dig kubernetes-alfred.royal-penny.ts.net
; <<>> DiG 9.18.33-1~deb12u2-Debian <<>> kubernetes-alfred.royal-penny.ts.net
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 22456
;; flags: qr aa rd ra ad; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 0
;; QUESTION SECTION:
;kubernetes-alfred.royal-penny.ts.net. IN A
;; ANSWER SECTION:
kubernetes-alfred.royal-penny.ts.net. 600 IN A 100.74.213.20
Eventually, after 2 days, the new host is finally resolved:
$ dig kubernetes-alfred.royal-penny.ts.net
; <<>> DiG 9.18.30-0ubuntu0.24.04.2-Ubuntu <<>> kubernetes-alfred.royal-penny.ts.net
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 10204
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;kubernetes-alfred.royal-penny.ts.net. IN A
;; ANSWER SECTION:
kubernetes-alfred.royal-penny.ts.net. 600 IN A 100.74.213.20
;; Query time: 1 msec
;; SERVER: 127.0.0.53#53(127.0.0.53) (UDP)
;; WHEN: Tue Apr 15 23:54:58 CEST 2025
;; MSG SIZE rcvd: 82
At that point the Kubernetes dashboard is finally accessible at https://kubernetes-alfred.royal-penny.ts.net/ from hosts in the same tailnet:
$ curl 2>/dev/null -k https://kubernetes-alfred.royal-penny.ts.net/ | head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
Private access through invite
Once a node is reachable by using a public FQDN, other users (e.g. friends and familiy) can be invited through Tailscale to access that one service from their computers or phones.
Public access through Funnel
Tailscale Funnel lets you route traffic from the broader internet to a local service, like a web app, for anyone to access—even if they don't use Tailscale. This can be used to expose low-bandwidth sensitive applications over HTTPS, with the caveat that traffic is not protected from abuse as with Cloudflare. Tailscale Funnel are slow by design, so this method only really works well for non-HTTP applications that are low-bandwidth, e.g. SSH or perhaps gaming servers.
Exposing a Service to the public internet using Ingress and Tailscale Funnel
enables access to local (Kubernetes) services also to clients that are not in the same
tailnet, or even in their own tailnet. This is as simple as adding the following
annotation to the Tailscale Ingress for a Kubernetes service:
Before applying this change, Edit Tailscale ACL to allow Kubernetes Operator proxy services to use Tailscale Funnel:
- Expand the Funnel section and select Add Funnel to policy.
- Edit the
nodeAttrsto allow nodes created by the Kubernetes operator to use Funnel:
Then applying the change to the Ingress manifest:
$ kubectl apply -f dashboard/nginx-ingress.yaml
ingress.networking.k8s.io/kubernetes-dashboard-ingress unchanged
ingress.networking.k8s.io/kubernetes-dashboard-ingress configured
Once DNS has propagated to resolve https://kubernetes-alfred.royal-penny.ts.net to the
machine's Tailscale IP address (100.74.213.20); enabling the funnel annotation and
applying the change results in yet another Tailscale IP address begin assigned to it, so
there we go to wait for DNS to propagate again to test access using this method.
Eventually, after another couple of days for DNS to propagate, the Kubernetes dashboard is available at https://kubernetes-alfred.royal-penny.ts.net also for computers not in the same tailnet.
