Migrating UniFi Controller to Kubernetes

The old UniFi Controller and its required Mongo DB have been a bit of a hassle to keep updated while running directly on the host OS in my little homelab server, so the time has come to migrate this to the new linuxserver.io/docker-unifi-network-application on my little Kubernetes cluster on my new Kubernetes cluster.

Warning

Beware of outdated documentation, most articles out there like Install Unifi Controller on Kubernetes, are based on the deprecated linuxserver/unifi-controller, while others like setting up the UniFi Network Controller using Docker are using jacobalberty/unifi-docker which was quite outdated until recently.

Deploy the Unifi Network Application

System requirements

The Unifi Network Application requires a Mongo DB backend and both will need writeable directories and a dedicated user:

# groupadd unifi -g 119
# useradd  unifi -u 119 -g 119 -s /usr/sbin/nologin
# mkdir -p /home/k8s/unifi/config /home/k8s/unifi/mongodb
# vi /home/k8s/unifi/init-mongo.sh
# chown -R unifi:unifi /home/k8s/unifi
# ls -lan /home/k8s/unifi
total 4
drwxr-xr-x 1 119 119  52 Dec 31 16:06 .
drwxr-xr-x 1   0   0 264 Dec 31 16:05 ..
drwxr-xr-x 1 119 119   0 Dec 31 16:05 config
-rw-r--r-- 1 119 119 425 Dec 31 16:06 init-mongo.sh
drwxr-xr-x 1 119 119   0 Dec 31 16:05 mongodb

Note the UID/GID (119) to be used later.

Create the script /home/k8s/unifi/init-mongo.sh using the exact content from the Setting Up Your External Database documentation of linuxserver/unifi-network-application:

#!/bin/bash

if which mongosh > /dev/null 2>&1; then
  mongo_init_bin='mongosh'
else
  mongo_init_bin='mongo'
fi
"${mongo_init_bin}" <<EOF
use ${MONGO_AUTHSOURCE}
db.auth("${MONGO_INITDB_ROOT_USERNAME}", "${MONGO_INITDB_ROOT_PASSWORD}")
db.createUser({
  user: "${MONGO_USER}",
  pwd: "${MONGO_PASS}",
  roles: [
    { db: "${MONGO_DBNAME}", role: "dbOwner" },
    { db: "${MONGO_DBNAME}_stat", role: "dbOwner" }
  ]
})
EOF

Kubernetes deployment

There is no ready-to-use Kubernetes deployment in the documentation of linuxserver/unifi-network-application, or anywhere else I could find. The following deployment is based on the recommended docker-compose and parts of previous Kubernetes deployments:

• Plex Media Server mounts multiple directories and exposes multiple TCP and UDP ports.
• InfluxDB and Grafana has services that depend on conneting with others over HTTP.
• Audiobookshelf has the websocket requirement.
• Kubernetes Dashboard enables HTTPS in the backend and disables TLS validation.

In addition to deploying the right set of objects, there are very specific requirements in terms of which version of MongoDB can be used depending on the version of the UniFi Network Application that is deployed. Check the correct pairs of versions under the Additional information section of the latest release of UniFi Network Application in the latest linuxserver/unifi-network-application release; e.g. 9.0.114 specifies that Version 9.0 and newer supports up to MongoDB 8.0 and those are the versions used here.

UniFi Network Application deployment.

apiVersion: v1
kind: Namespace
metadata:
  name: unifi
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mongo-pv-data
  namespace: unifi
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/unifi/mongodb
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mongo-pv-init
  namespace: unifi
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/unifi/init-mongo.sh
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mongo-pvc-data
  namespace: unifi
spec:
  storageClassName: manual
  volumeName: mongo-pv-data
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mongo-pvc-init
  namespace: unifi
spec:
  storageClassName: manual
  volumeName: mongo-pv-init
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mongo
  namespace: unifi
spec:
  selector:
    matchLabels:
      app: mongo
  replicas: 1
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
  template:
    metadata:
      labels:
        app: mongo
    spec:
      containers:
      - image: docker.io/mongo:8.0.0
        imagePullPolicy: IfNotPresent
        name: mongo
        env:
        - name: "MONGO_AUTHSOURCE"
          value: "admin"
        - name: "MONGO_DBNAME"
          value: "unifi"
        - name: "MONGO_INITDB_ROOT_USERNAME"
          value: "root"
        - name: "MONGO_INITDB_ROOT_PASSWORD"
          value: "*************************"
        - name: "MONGO_PASS"
          value: "*************************"
        - name: "MONGO_USER"
          value: "unifi"
        ports:
        - containerPort: 27017
        volumeMounts:
        - mountPath: /data/db
          name: mongo-data
        - mountPath: /docker-entrypoint-initdb.d/init-mongo.sh
          name: mongo-init
      securityContext:
        runAsUser: 119
        runAsGroup: 119
      volumes:
      - name: mongo-data
        persistentVolumeClaim:
          claimName: mongo-pvc-data
      - name: mongo-init
        persistentVolumeClaim:
          claimName: mongo-pvc-init
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: mongo
  name: mongo-svc
  namespace: unifi
spec:
  ports:
  - port: 27017
    protocol: TCP
    targetPort: 27017
    nodePort: 32717
  selector:
    app: mongo
  type: NodePort

---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: unifi-pv-config
  namespace: unifi
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/unifi/config
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: unifi-pvc-config
  namespace: unifi
spec:
  storageClassName: manual
  volumeName: unifi-pv-config
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: unifi
  namespace: unifi
spec:
  selector:
    matchLabels:
      app: unifi
  replicas: 1
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
  template:
    metadata:
      labels:
        app: unifi
    spec:
      containers:
      - image: lscr.io/linuxserver/unifi-network-application:9.0.114
        imagePullPolicy: IfNotPresent
        name: unifi
        env:
        - name: "PUID"
          value: "119"
        - name: "PGID"
          value: "119"
        - name: TZ
          value: Europe/Amsterdam
        - name: "MONGO_AUTHSOURCE"
          value: "admin"
        - name: "MONGO_DBNAME"
          value: "unifi"
        - name: "MONGO_PASS"
          value: "*************************"
        - name: "MONGO_USER"
          value: "unifi"
        - name: "MONGO_HOST"
          value: "mongo-svc"
        - name: "MONGO_PORT"
          value: "27017"
        ports:
        - containerPort: 6789
          name: mob-speedtest
          protocol: TCP
        - containerPort: 8080
          name: device-inform
          protocol: TCP
        - containerPort: 8443
          name: web-ui
          protocol: TCP
        - containerPort: 1900
          name: ssdp
          protocol: UDP
        - containerPort: 3478
          name: stun
          protocol: UDP
        - containerPort: 10001
          name: ap-discovery
          protocol: UDP
        volumeMounts:
        - mountPath: /config
          name: unifi-config
      volumes:
      - name: unifi-config
        persistentVolumeClaim:
          claimName: unifi-pvc-config
---
kind: Service
apiVersion: v1
metadata:
  name: unifi-tcp
  namespace: unifi
  annotations:
    metallb.universe.tf/allow-shared-ip: unifi
spec:
  type: LoadBalancer
  loadBalancerIP: 192.168.0.173
  ports:
  - name: mob-speedtest
    protocol: TCP
    port: 6789
    targetPort: 6789
  - name: device-inform
    protocol: TCP
    port: 8080
    targetPort: 8080
  - name: web-ui
    protocol: TCP
    port: 8443
    targetPort: 8443
  selector:
    app: unifi
---
apiVersion: v1
kind: Service
metadata:
  name: unifi-udp
  namespace: unifi
  annotations:
    metallb.universe.tf/allow-shared-ip: unifi
spec:
  type: LoadBalancer
  loadBalancerIP: 192.168.0.173
  ports:
    - name: stun
      protocol: UDP
      port: 3478
      targetPort: 3478
    - name: ap-discovery
      protocol: UDP
      port: 10001
      targetPort: 10001
    - name: ssdp
      protocol: UDP
      port: 1900
      targetPort: 1900
  selector:
    app: unifi
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: unifi-ingress
  namespace: unifi
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/websocket-services: unifi-tcp
    nginx.ingress.kubernetes.io/backend-protocol: HTTPS
    nginx.ingress.kubernetes.io/auth-tls-verify-client: "false"
    nginx.ingress.kubernetes.io/whitelist-source-range: 10.244.0.0/16
spec:
  ingressClassName: nginx
  rules:
    - host: uni.ssl.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: unifi-tcp
                port:
                  number: 8443
  tls:
    - secretName: tls-secret
      hosts:
        - uni.ssl.uu.am

Troubleshooting

Putting this deployment together was a bit of a process, so here are some notes and warnings about the troubles that had to be sorted out along the way:

Warning

Double-check that the Unifi Application data directory is mounted exactly on /config; otherwise the application will create an ephemeral directory that will be discarded when restarting the pod. Once this data is lost, the application has to be setup again, and every access point adopted since the last backup has to be factory reset to be readopted.

This Unifi image does not support running rootless.

Attempting to set securityContext (as is done for the mongodb image) will result in fatal errors and crash-loop:

s6-overlay-suexec: warning: unable to gain root privileges (is the suid bit set?)
s6-mkdir: warning: unable to mkdir /run/s6: Permission denied
s6-mkdir: warning: unable to mkdir /run/service: Permission denied
s6-overlay-suexec: fatal: child failed with exit code 111

This image does not seem to use the system.properties files.

The ~MONGO_...~ strings in the system.properties files should be replaced with the values of the environment variables set in the deployment, but they are not:

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- cat /defaults/system.properties | grep MONGO
db.mongo.uri=mongodb://~MONGO_USER~:~MONGO_PASS~@~MONGO_HOST~:~MONGO_PORT~/~MONGO_DBNAME~?tls=~MONGO_TLS~~MONGO_AUTHSOURCE~
statdb.mongo.uri=mongodb://~MONGO_USER~:~MONGO_PASS~@~MONGO_HOST~:~MONGO_PORT~/~MONGO_DBNAME~_stat?tls=~MONGO_TLS~~MONGO_AUTHSOURCE~
unifi.db.name=~MONGO_DBNAME~

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- cat /config/data/system.properties
cat: /config/data/system.properties: No such file or directory
command terminated with exit code 1

Yet the environment variables are correctly set in the running pod:

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- printenv | grep MONGO
MONGO_PORT=27017
MONGO_PASS=*************************
MONGO_USER=unifi
MONGO_HOST=mongo-svc
MONGO_AUTHSOURCE=admin
MONGO_DBNAME=unifi
MONGO_SVC_SERVICE_PORT=27017
MONGO_SVC_PORT_27017_TCP_ADDR=10.104.94.112
MONGO_SVC_PORT=tcp://10.104.94.112:27017
MONGO_SVC_PORT_27017_TCP_PROTO=tcp
MONGO_SVC_SERVICE_HOST=10.104.94.112
MONGO_SVC_PORT_27017_TCP=tcp://10.104.94.112:27017
MONGO_SVC_PORT_27017_TCP_PORT=27017

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- cat /run/s6/container_environment/MONGO_PORT
27017

Pay close attention to how the pods are connected.

Misconfiguration in either the Mongo DB service port or the MONGO_HOST value in the Unify deployment can easily lead to the Unifi application failing to start because it's not able to connect to MondoDB:

$ kubectl -n unifi logs \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') -f
[migrations] started
[migrations] no migrations found
───────────────────────────────────────

      ██╗     ███████╗██╗ ██████╗
      ██║     ██╔════╝██║██╔═══██╗
      ██║     ███████╗██║██║   ██║
      ██║     ╚════██║██║██║   ██║
      ███████╗███████║██║╚██████╔╝
      ╚══════╝╚══════╝╚═╝ ╚═════╝

  Brought to you by linuxserver.io
───────────────────────────────────────

To support LSIO projects visit:
https://www.linuxserver.io/donate/

───────────────────────────────────────
GID/UID
───────────────────────────────────────

User UID:    119
User GID:    119
───────────────────────────────────────
Linuxserver.io version: 8.6.9-ls73
Build-date: 2024-12-24T17:37:56+00:00
───────────────────────────────────────

*** Waiting for MONGO_HOST mongo-svc to be reachable. ***
*** Defined MONGO_HOST mongo-svc is not reachable, cannot proceed. ***

The environment variables are correctly set in the running pod:

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- nc -zv mongo-svc 27017
nc: connect to mongo-svc (10.104.94.112) port 27017 (tcp) failed: Connection refused
command terminated with exit code 1

The service is reachable instead of mongo-svc:27017 only when the mongo deployment has targetPort: 27017

$ kubectl -n unifi exec \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') \
  -- nc -zv mongo-svc.unifi 27017
Connection to mongo-svc.unifi (10.104.94.112) 27017 port [tcp/*] succeeded!

Clear the Mondo DB every time deployment fails.

Scripts in the /docker-entrypoint-initdb.d folder will be executed only if the database has never been initialized before. If the deployment fails at any point, delete the contents of /home/k8s/unifi/mongodb so right before reapplying the deployment.

Otherwise, if the database has been previously incorrectly intialized, the user unifi will not be found and the unifi application will be constantly re-trying and logging authentication errors:

$ kubectl -n unifi logs \
  $(kubectl get pods -n unifi | grep unifi | cut -f1 -d' ') -f
[migrations] started
[migrations] no migrations found
───────────────────────────────────────

      ██╗     ███████╗██╗ ██████╗
      ██║     ██╔════╝██║██╔═══██╗
      ██║     ███████╗██║██║   ██║
      ██║     ╚════██║██║██║   ██║
      ███████╗███████║██║╚██████╔╝
      ╚══════╝╚══════╝╚═╝ ╚═════╝

  Brought to you by linuxserver.io
───────────────────────────────────────

To support LSIO projects visit:
https://www.linuxserver.io/donate/

───────────────────────────────────────
GID/UID
───────────────────────────────────────

User UID:    119
User GID:    119
───────────────────────────────────────
Linuxserver.io version: 8.6.9-ls73
Build-date: 2024-12-24T17:37:56+00:00
───────────────────────────────────────

*** Waiting for MONGO_HOST mongo-svc.unifi to be reachable. ***
Generating 4,096 bit RSA key pair and self-signed certificate (SHA384withRSA) with a validity of 3,650 days
        for: CN=unifi
[custom-init] No custom files found, skipping...
Exception in thread "launcher" java.lang.IllegalStateException: Tomcat failed to start up
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'mongoRuntimeService' defined in com.ubnt.service.db.CoreDatabaseSpringContext: Exception authenticating MongoCredential{mechanism=SCRAM-SHA-1, userName='unifi', source='admin', password=<hidden>, mechanismProperties=<hidden>}
Caused by: com.mongodb.MongoSecurityException: Exception authenticating MongoCredential{mechanism=SCRAM-SHA-1, userName='unifi', source='admin', password=<hidden>, mechanismProperties=<hidden>}
Caused by: com.mongodb.MongoCommandException: Command failed with error 18 (AuthenticationFailed): 'Authentication failed.' on server mongo-svc.unifi:27017. The full response is {"ok": 0.0, "errmsg": "Authentication failed.", "code": 18, "codeName": "AuthenticationFailed"}

The full response is in JSON format; it doesn't tell much:

{
  "ok": 0,
  "errmsg": "Authentication failed.",
  "code": 18,
  "codeName": "AuthenticationFailed"
}

The reason behind the error is clearly stated in the Mondo DB logs, which are conveniently in JSON format so they can be piped to jq:

$ kubectl -n unifi logs \
  $(kubectl get pods -n unifi | grep mongo | cut -f1 -d' ') \
  | grep ACCESS | head -2 | jq

{
  "t": {
    "$date": "2024-12-31T20:18:09.557+00:00"
  },
  "s": "I",
  "c": "ACCESS",
  "id": 20251,
  "ctx": "conn3",
  "msg": "Supported SASL mechanisms requested for unknown user",
  "attr": {
    "user": "unifi@admin"
  }
}
{
  "t": {
    "$date": "2024-12-31T20:18:09.558+00:00"
  },
  "s": "I",
  "c": "ACCESS",
  "id": 20249,
  "ctx": "conn3",
  "msg": "Authentication failed",
  "attr": {
    "mechanism": "SCRAM-SHA-256",
    "speculative": true,
    "principalName": "unifi",
    "authenticationDatabase": "admin",
    "remote": "10.244.0.85:53330",
    "extraInfo": {},
    "error": "UserNotFound: Could not find user \"unifi\" for db \"admin\""
  }
}

The user unifi was not found because the database was not initialized correctly, because it failed to initialize in a previous iteration, because the mongo-init volume containing the script was not mounted in the mongo container.

Make sure to enable HTTPS backend protocol in Nginx.

Otherwise, Nginx will be unable to connect to unifi because it will reject plain HTTP requests on port 8443:

Bad Request
This combination of host and port requires TLS.

The (better) solution is to enable HTTPS as the backend protocol and instruct Nginx to skip TLS certification validation. This is what the Kubernetes Dashboard deployment does as well; in fact that's where I found those 3 lines.

Do not bother trying to enable plain HTTP UI on port 8880.

Since UniFi 8.2 (at least) it is no longer possible to disable the HTTP to HTTPS redirect.

Final result

Apply the deployment and wait a few minutes for services to start:

$ kubectl apply -f unifi-network-app.yaml
namespace/unifi created
persistentvolume/mongo-pv-data created
persistentvolume/mongo-pv-init created
persistentvolumeclaim/mongo-pvc-data created
persistentvolumeclaim/mongo-pvc-init created
deployment.apps/mongo created
service/mongo-svc created
persistentvolume/unifi-pv-config created
persistentvolumeclaim/unifi-pvc-config created
deployment.apps/unifi created
service/unifi-tcp created
service/unifi-udp created
ingress.networking.k8s.io/unifi-ingress created

$ kubectl get all -n unifi
NAME                            READY   STATUS    RESTARTS   AGE
pod/cm-acme-http-solver-w26rm   1/1     Running   0          36s
pod/mongo-564774d869-dfk7h      1/1     Running   0          36s
pod/unifi-584f4847c7-vpthl      1/1     Running   0          36s

NAME                TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)                                         AGE
service/mongo-svc   NodePort       10.103.150.110   <none>          27017:32717/TCP                                 37s
service/unifi-tcp   LoadBalancer   10.105.232.48    192.168.0.173   6789:31231/TCP,8080:32034/TCP,8443:30909/TCP    37s
service/unifi-udp   LoadBalancer   10.108.54.45     192.168.0.173   3478:31805/UDP,10001:32694/UDP,1900:30234/UDP   37s

NAME                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/mongo   1/1     1            1           37s
deployment.apps/unifi   1/1     1            1           37s

NAME                               DESIRED   CURRENT   READY   AGE
replicaset.apps/mongo-564774d869   1         1         1       37s
replicaset.apps/unifi-584f4847c7   1         1         1       37s

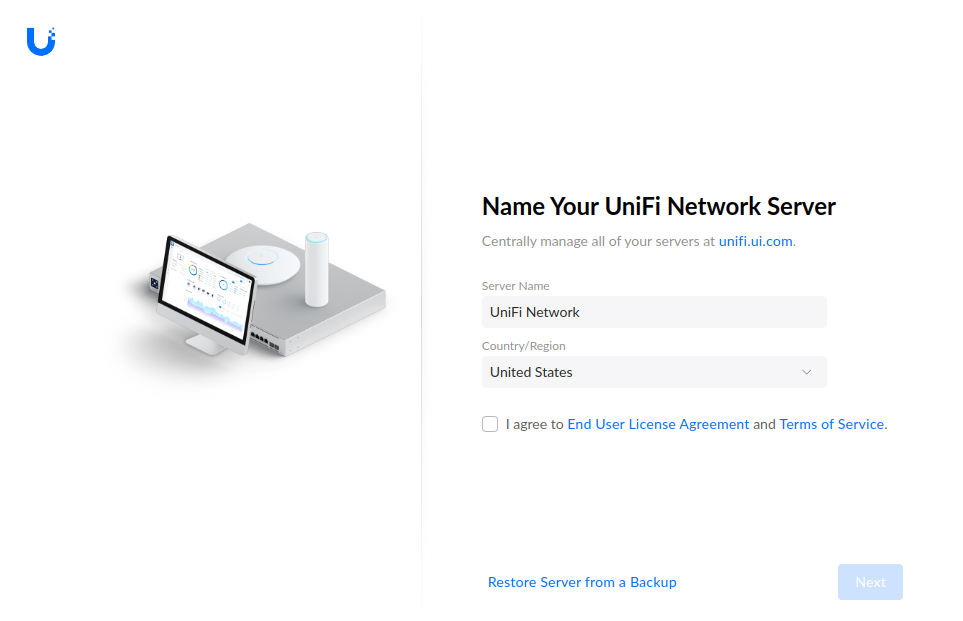

If all goes well, there will be no errors in the logs and the web UI will be available at https://uni.ssl.uu.am/

[migrations] started
[migrations] no migrations found
───────────────────────────────────────

      ██╗     ███████╗██╗ ██████╗
      ██║     ██╔════╝██║██╔═══██╗
      ██║     ███████╗██║██║   ██║
      ██║     ╚════██║██║██║   ██║
      ███████╗███████║██║╚██████╔╝
      ╚══════╝╚══════╝╚═╝ ╚═════╝

  Brought to you by linuxserver.io
───────────────────────────────────────

To support LSIO projects visit:
https://www.linuxserver.io/donate/

───────────────────────────────────────
GID/UID
───────────────────────────────────────

User UID:    119
User GID:    119
───────────────────────────────────────
Linuxserver.io version: 8.6.9-ls73
Build-date: 2024-12-24T17:37:56+00:00
───────────────────────────────────────

*** Waiting for MONGO_HOST mongo-svc to be reachable. ***
Generating 4,096 bit RSA key pair and self-signed certificate (SHA384withRSA) with a validity of 3,650 days
        for: CN=unifi
[custom-init] No custom files found, skipping...
[ls.io-init] done.

From this point on, follow the documentation for UniFi - Backups and Migration to migrate the current site from the old controller to the new UniFi Network Application.
