Monitoring with InfluxDB and Grafana on Kubernetes

Four years later, I still have not gotten the hang of telegraf, I'm still running my own home-made detailed system and process monitoring reporting to InfluxDB running container-lessly in lexicon and I feel the time is up for moving these services into the Kubernetes cluster. Besides keeping them updated, what I'm most looking forward is leveraging the cluster's infrastructure to expose these services (only) over HTTPS with automatically renewed SSL certs.

Current Setup

Continuous Monitoring describes the current, complete setup with the OSS versions of InfluxDB and Grafana.

Kubernetes Deployment

There quite a few articles out there explaining how to run all 3 components (Telegraf, InfluxDB, Grafana) on Docker, on some of which the following monitoring.yaml deployment is (very loosly) based:

Kubernetes deployment: monitoring.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: monitoring
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: influxdb-pv
  labels:
    type: local
  namespace: monitoring
spec:
  storageClassName: manual
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /home/k8s/influxdb
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: influxdb-pv-claim
  namespace: monitoring
spec:
  storageClassName: manual
  volumeName: influxdb-pv
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 30Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: monitoring
  labels:
    app: influxdb
  name: influxdb
spec:
  replicas: 1
  selector:
    matchLabels:
      app: influxdb
  template:
    metadata:
      labels:
        app: influxdb
    spec:
      hostname: influxdb
      containers:
      - image: docker.io/influxdb:1.8
        name: influxdb
        volumeMounts:
        - mountPath: /var/lib/influxdb
          name: influxdb-data
      securityContext:
        runAsUser: 114
        runAsGroup: 114
      volumes:
      - name: influxdb-data
        persistentVolumeClaim:
          claimName: influxdb-pv-claim
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: influxdb
  name: influxdb-svc
  namespace: monitoring
spec:
  ports:
  - port: 18086
    protocol: TCP
    targetPort: 8086
    nodePort: 30086
  selector:
    app: influxdb
  type: NodePort
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: telegraf
  namespace: monitoring
  labels:
    app: telegraf
data:
  telegraf.conf: |+
    [agent]
      hostname = "influxdb"
    [[outputs.influxdb]]
      urls = ["http://influxdb-svc:18086/"]
      database = "telegraf"
      timeout = "5s"
    [[inputs.cpu]]
      percpu = true
      totalcpu = true
      collect_cpu_time = false
      report_active = false
    [[inputs.disk]]
      ignore_fs = ["tmpfs", "devtmpfs", "devfs"]
    [[inputs.diskio]]
    [[inputs.kernel]]
    [[inputs.mem]]
    [[inputs.processes]]
    [[inputs.swap]]
    [[inputs.system]]
    [[inputs.docker]]
      endpoint = "unix:///var/run/docker.sock"
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: telegraf
  namespace: monitoring
  labels:
    app: telegraf
spec:
  selector:
    matchLabels:
      name: telegraf
  template:
    metadata:
      labels:
        name: telegraf
    spec:
      containers:
      - name: telegraf
        image: docker.io/telegraf:1.30.1
        env:
        - name: HOSTNAME
          value: "influxdb"
        - name: "HOST_PROC"
          value: "/rootfs/proc"
        - name: "HOST_SYS"
          value: "/rootfs/sys"
        - name: INFLUXDB_DB
          value: "telegraf"
        volumeMounts:
        - name: sys
          mountPath: /rootfs/sys
          readOnly: true
        - name: proc
          mountPath: /rootfs/proc
          readOnly: true
        - name: docker-socket
          mountPath: /var/run/docker.sock
        - name: utmp
          mountPath: /var/run/utmp
          readOnly: true
        - name: config
          mountPath: /etc/telegraf
      terminationGracePeriodSeconds: 30
      volumes:
      - name: sys
        hostPath:
          path: /sys
      - name: docker-socket
        hostPath:
          path: /var/run/docker.sock
      - name: proc
        hostPath:
          path: /proc
      - name: utmp
        hostPath:
          path: /var/run/utmp
      - name: config
        configMap:
          name: telegraf
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: grafana-pv
  labels:
    type: local
  namespace: monitoring
spec:
  storageClassName: manual
  capacity:
    storage: 3Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /home/k8s/grafana
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-pv-claim
  namespace: monitoring
spec:
  storageClassName: manual
  volumeName: grafana-pv
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 3Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: monitoring
  labels:
    app: grafana
  name: grafana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      containers:
      - image: docker.io/grafana/grafana:10.4.2
        env:
        - name: HOSTNAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        - name: "GF_AUTH_ANONYMOUS_ENABLED"
          value: "true"
        - name: "GF_SECURITY_ADMIN_USER"
          value: "admin"
        - name: "GF_SECURITY_ADMIN_PASSWORD"
          value: "PLEASE_CHOOSE_A_SENSIBLE_PASSWORD"
        name: grafana
        volumeMounts:
          - name: grafana-data
            mountPath: /var/lib/grafana
      securityContext:
        runAsUser: 115
        runAsGroup: 115
        fsGroup: 115
      volumes:
      - name: grafana-data
        persistentVolumeClaim:
          claimName: grafana-pv-claim
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: grafana
  name: grafana-svc
  namespace: monitoring
spec:
  ports:
  - port: 13000
    protocol: TCP
    targetPort: 3000
    nodePort: 30300
  selector:
    app: grafana
  type: NodePort

This setup reuses the existing dedicated users influxdb (114) and grafana (115) and requires new directories owned by these users:

$ ls -ld /home/k8s/influxdb/ /home/k8s/grafana/
drwxr-xr-x 1 grafana  grafana  0 Mar 28 23:25 /home/k8s/grafana/
drwxr-xr-x 1 influxdb influxdb 0 Mar 28 21:54 /home/k8s/influxdb/

$ kubectl apply -f monitoring.yaml
namespace/monitoring created
persistentvolume/influxdb-pv created
persistentvolumeclaim/influxdb-pv-claim created
deployment.apps/influxdb created
service/influxdb-svc created
configmap/telegraf created
daemonset.apps/telegraf created
persistentvolume/grafana-pv created
persistentvolumeclaim/grafana-pv-claim created
deployment.apps/grafana created
service/grafana-svc created

$ kubectl -n monitoring get all
NAME                            READY   STATUS    RESTARTS   AGE
pod/grafana-6c49f96c47-hx7kd    1/1     Running   0          73s
pod/influxdb-6c86444bb7-kt4sx   1/1     Running   0          73s
pod/telegraf-pwtkh              1/1     Running   0          73s

NAME               TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
service/grafana    NodePort   10.111.217.211   <none>        3000:30300/TCP   73s
service/influxdb   NodePort   10.109.61.156    <none>        8086:30086/TCP   73s

NAME                      DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/telegraf   1         1         1       1            1           <none>          73s

NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/grafana    1/1     1            1           73s
deployment.apps/influxdb   1/1     1            1           73s

NAME                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/grafana-6c49f96c47    1         1         1       73s
replicaset.apps/influxdb-6c86444bb7   1         1         1       73s

Grafana is able to query InfluxDB at http://influxdb:8086/ and the following steps will be to enable accessing both Grafana and InfluxDB over HTTPS externally.

Grafana Setup

Once InfluxDB is ready and Telegraf is feeding data into it, setup Grafana by creating a Data source:

• Type: InfluxDB
• Name: telegraf
• Query language: InfluxQL
• URL: http://influxdb-svc:18086 (see Pod Hostname DNS)
• Database: telegraf

Secure InfluxDB

The next step is to add authentication to InfluxDB. This will require updating Telegraf and Grafana.

InfluxDB Authentication

Authentication and authorization in InfluxDB starts by enabling authentication.

Create at least one admin user:

$ influx -host localhost -port 30086
Connected to http://localhost:30086 version 1.8.10
InfluxDB shell version: 1.6.7~rc0

> USE telegraf
Using database telegraf

> CREATE USER admin WITH PASSWORD '**********' WITH ALL PRIVILEGES

Warning

The password must be enclosed in single quotes (').

Enable authentication in the deployment by setting the INFLUXDB_HTTP_AUTH_ENABLED variable:

    spec:
      containers:
      - image: docker.io/influxdb:1.8
        env:
        - name: "INFLUXDB_HTTP_AUTH_ENABLED"
          value: "true"
        name: influxdb

Restart InfluxDB:

$ kubectl apply -f monitoring.yaml
...
deployment.apps/influxdb configured
...

The result is not that connections are rejected, but access to the database is denied:

$ kubectl  -n monitoring logs telegraf-2k8hb | tail -1
2024-04-20T18:24:16Z E! [outputs.influxdb] E! [outputs.influxdb] Failed to write metric (will be dropped: 401 Unauthorized): unable to parse authentication credentials

$ influx -host localhost -port 30086
Connected to http://localhost:30086 version 1.8.10
InfluxDB shell version: 1.6.7~rc0
> USE telegraf
ERR: unable to parse authentication credentials
DB does not exist!

Update Grafana

Updating the InfluxDB connection under Data soures in Grafana, by adding the username (admin) and password, is enough to get the connextion restored.

Update Telegraf

To restore access to Telegraf, add the credentials to the ConfigMap as follows:

data:
  telegraf.conf: |+
    [[outputs.influxdb]]
      urls = ["http://influxdb-svc:18086/"]
      database = "telegraf"
      username = "admin"
      password = "*********************"

And restart telegraf:

$ kubectl delete -n monitoring daemonset telegraf
$ kubectl apply -f monitoring.yaml

HTTPS Access

To do this, add an Ingress pointing to each service:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grafana-ingress
  namespace: monitoring
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: nginx
  rules:
    - host: gra.ssl.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: grafana-svc
                port:
                  number: 3000
  tls:
    - secretName: grafana-tls-secret
      hosts:
        - gra.ssl.uu.am
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: influxdb-ingress
  namespace: monitoring
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: nginx
  rules:
    - host: inf.ssl.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: influxdb-svc
                port:
                  number: 8086
  tls:
    - secretName: influxdb-tls-secret
      hosts:
        - inf.ssl.uu.am

$ kubectl apply -f monitoring.yaml
...
ingress.networking.k8s.io/grafana-ingress created
ingress.networking.k8s.io/influxdb-ingress created

Each Ingress will need to obtain its own certificate, which requires patching each ACME solver to listen on port 32080 (set up in router), leveraging the script for Monthly renewal of certificates (automated):

# /root/bin/cert-renewal-port-fwd.sh
service/cm-acme-http-solver-rnrs5 patched

This script runs every 30 minutes via crontab but can also be run manually to speed things up.

If the external port 80 seems to be timing out, it may be necessary to remove the port forwarding rule in the router and add it again.

Once DNS records are updated, Grafana should be available at https://gra.ssl.uu.am and InfluxDB should be available at https://inf.ssl.uu.am

Troubleshooting

Persistent Volumes

Because there are multiple PersistentVolume and PersistentVolumeClaim, it is necessary to link them explicitly by adding volumeName to each PersistentVolumeClaim, otherwise volatile volumes are used which are then discarded each time the deployment is deleted.

Ingress Multiple SSL Certificates

When multiple Ingress are created in the same namespace, it is also necessary to give each a different tls.secretName for each tls.hosts value; otherwise only one SSL certificate will be created (and signed) and it won't be valid for all subdomains in tls.hosts.

Pod Hostname DNS

For this setup to work, telegraf and grafana need to send HTTP requests to influxdb. At first, it was enough to set the hostname value in the influxdb deployment, so that other services can connect to it via the internal port and DNS: http://influxdb:8086

However, after the deployment was deleted and applied a few times, telegraf and grafana were no longer able to connect; the internal DNS would no longer return an IP address for the influxdb hostname:

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 kube-dns.kube-system.svc.cluster.local
PING kube-dns.kube-system.svc.cluster.local (10.96.0.10) 56(84) bytes of data.

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 influxdb.monitoring.svc.cluster.local
ping: influxdb.monitoring.svc.cluster.local: Name or service not known
command terminated with exit code 2

Telegraf cannot write to InfluxDB:

$ kubectl -n monitoring logs telegraf-5rv6z | tail -2
2024-04-20T16:05:50Z E! [outputs.influxdb] When writing to [http://influxdb:8086/]: failed doing req: Post "http://influxdb:8086/write?db=telegraf": dial tcp: lookup influxdb on 10.96.0.10:53: no such host
2024-04-20T16:05:50Z E! [agent] Error writing to outputs.influxdb: could not write any address

Grafana cannot query InfluxDB:

Get "http://influxdb:8086/query?db=telegraf&epoch=ms&q=SELECT++FROM+%22%22+WHERE+time+%3E%3D+1713606668691ms+and+time+%3C%3D+1713628268691ms": dial tcp: lookup influxdb on 10.96.0.10:53: no such host

After getting tired of not finding relevant information to troubleshoot this, updated the deployment and Grafana to query InfluxDB via its NodePort at 10.0.0.6:30086

After updating dhe deployement, restart telegraf:

$ kubectl delete -n monitoring daemonset telegraf
$ kubectl apply -f monitoring.yaml

Still went to to check whether DNS queries are being received/processed? and after adding logging of queries and trying again:

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 kube-dns.kube-system.svc.cluster.local
PING kube-dns.kube-system.svc.cluster.local (10.96.0.10) 56(84) bytes of data.

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 kube-dns.kube-system
PING kube-dns.kube-system.svc.cluster.local (10.96.0.10) 56(84) bytes of data.

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 influxdb.monitoring
ping: influxdb.monitoring: Name or service not known
command terminated with exit code 2

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 influxdb.monitoring.svc.cluster.local
ping: influxdb.monitoring.svc.cluster.local: Name or service not known
command terminated with exit code 2

$ kubectl logs --namespace=kube-system -l k8s-app=kube-dns
[INFO] 10.244.0.216:34419 - 28080 "AAAA IN kube-dns.kube-system.monitoring.svc.cluster.local. udp 67 false 512" NXDOMAIN qr,aa,rd 160 0.00013723s
[INFO] 10.244.0.216:34419 - 8637 "A IN kube-dns.kube-system.monitoring.svc.cluster.local. udp 67 false 512" NXDOMAIN qr,aa,rd 160 0.000129401s
[INFO] 10.244.0.216:43649 - 36293 "A IN kube-dns.kube-system.svc.cluster.local. udp 56 false 512" NOERROR qr,aa,rd 110 0.000073868s
[INFO] 10.244.0.216:43649 - 62915 "AAAA IN kube-dns.kube-system.svc.cluster.local. udp 56 false 512" NOERROR qr,aa,rd 149 0.000107266s
[INFO] 10.244.0.216:42170 - 53476 "A IN influxdb.monitoring.svc.cluster.local. udp 55 false 512" NXDOMAIN qr,aa,rd 148 0.000116052s
[INFO] 10.244.0.216:42170 - 27874 "AAAA IN influxdb.monitoring.svc.cluster.local. udp 55 false 512" NXDOMAIN qr,aa,rd 148 0.000141714s
[INFO] 10.244.0.216:51203 - 31196 "A IN influxdb.monitoring.cluster.local. udp 51 false 512" NXDOMAIN qr,aa,rd 144 0.000056868s
[INFO] 10.244.0.216:51203 - 64478 "AAAA IN influxdb.monitoring.cluster.local. udp 51 false 512" NXDOMAIN qr,aa,rd 144 0.000128173s
[INFO] 10.244.0.216:51687 - 28937 "A IN influxdb.monitoring.v.cablecom.net. udp 52 false 512" NXDOMAIN qr,rd,ra 139 0.020606519s
[INFO] 10.244.0.216:51687 - 65290 "AAAA IN influxdb.monitoring.v.cablecom.net. udp 52 false 512" NXDOMAIN qr,rd,ra 139 0.021962102s

NXDOMAIN means that the domain is non-existent, providing a DNS error message that is received by the client (Recursive DNS server). This happens when the domain has been requested but cannot be resolved to a valid IP address. All in all, NXDOMAIN error messages simply mean that the domain does not exist.

This only happens with the pod's hostname, but we can resolve its Service:

$ kubectl -n monitoring exec -i -t telegraf-zzs52 -- ping -c 1 grafana-svc.monitoring
PING grafana-svc.monitoring.svc.cluster.local (10.109.127.41) 56(84) bytes of data.

All this is because there's no A record for a Pod born of a Deployment so the DNS service will not resolve pods, but instead services, and the port exposed is that of the service (port) instead of that of the pod (targetPort), so the correct URL to reach InfluxDB is http://influxdb-svc:18086

The change of service name and port happened while creating the Ingress for HTTP access:

$ kubectl -n monitoring get all
NAME                            READY   STATUS    RESTARTS   AGE
pod/grafana-7647f97d64-k8h5m    1/1     Running   0          19h
pod/influxdb-84dd8bc664-5m9fx   1/1     Running   0          17h
pod/telegraf-c59gg              1/1     Running   0          17h

NAME                   TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)           AGE
service/grafana-svc    NodePort   10.109.127.41    <none>        13000:30300/TCP   19h
service/influxdb-svc   NodePort   10.109.191.140   <none>        18086:30086/TCP   19h

NAME                      DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
daemonset.apps/telegraf   1         1         1       1            1           <none>          17h

NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/grafana    1/1     1            1           19h
deployment.apps/influxdb   1/1     1            1           19h

NAME                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/grafana-7647f97d64    1         1         1       19h
replicaset.apps/influxdb-6c86444bb7   0         0         0       19h
replicaset.apps/influxdb-84dd8bc664   1         1         1       17h
replicaset.apps/influxdb-87c66ff6     0         0         0       17h

Further reading: Connecting the Dots: Understanding How Pods Talk in Kubernetes Networks.

Conmon Migration

Continuous Monitoring can now be migrated to report metrics to a (new) database in the new InfluxDB and serve dashboards securely over HTTPS from the new Grafana.

Create a monitoring database (separate from the telegraf database) and set its retencion period to 30 days:

$ influx -host localhost -port 30086
Connected to http://localhost:30086 version 1.8.10
InfluxDB shell version: 1.6.7~rc0

> auth
username: admin
password:

> CREATE DATABASE monitoring
> USE monitoring
Using database monitoring

> CREATE RETENTION POLICY "30_days" ON "monitoring" DURATION 30d REPLICATION 1
> ALTER RETENTION POLICY "30_days" on "monitoring" DURATION 30d REPLICATION 1 DEFAULT

In Grafana, create a new InfluxDB connection under Data sources pointing to this database.

In the conmon scripts, update the curl domain to use HTTP Basic authentication, and update the TARGET to point at the new InfluxDB service; the value can be any of the following:

• http://localhost:30086 only on the server itself
• http://lexicon:30086 when running in the same LAN
• https://inf.ssl.uu.am when running out of LAN

To accommodate for a transition period, scripts can report to both InfluxDB instances until the migration is over.

First, store the InfluxDB credentials in /etc/conmon/influxdb-auth and make the file readable only to the root user:

# echo 'admin:*************' > /etc/conmon/influxdb-auth
# chmod 400 /etc/conmon/influxdb-auth

DBNAME=monitoring
TARGET='http://lexicon:8086'
TARGET2='http://lexicon:30086'
...
      curl >/dev/null 2>/dev/null \
        -i -XPOST "${TARGET}/write?db=${DBNAME}" \
        --data-binary @"${DATA}.POST"
      curl >/dev/null 2>/dev/null \
        -u $(cat /etc/conmon/influxdb-auth) \
        -i -XPOST "${TARGET2}/write?db=${DBNAME}" \
        --data-binary @"${DATA}.POST"

The conmon scripts will need to be updated later to optionally send authentication (user and password) only when necessary, and store the password somewhere safe (definitely outside of the running script).

For each host reporting metrics, migrating the dashboard/s from the old Grafana to the old new should be as easy as:

1. In (each one of) the old dashboards, go to Dashboard settings > JSON Model and copy the JSON model into a local file.
2. In (any of) the new old dashboards, go to Dashboard settings > JSON Model and copy the uid of (any) datasource object.
3. In the local file, replace the uid of the influxdb datasource objects (one per panel) with the value copied from the old dashboard.
4. In the new Grafana, go to Home > Dashboards then New > Import and upload the local file.

Finally, once all the dashboards are working, one can go to Administration > General > Default preferences and set a specific dashboard as Home Dashboard.

Clean Up

After some time dual-reporting with no regressions observed, reporting to the old InfluxDB was removed and a few days later the service could be disabled:

# systemctl stop grafana-server.service
# systemctl stop influxdb.service
# systemctl disable grafana-server.service
Synchronizing state of grafana-server.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install disable grafana-server
Removed /etc/systemd/system/multi-user.target.wants/grafana-server.service.
# systemctl disable influxdb.service
Synchronizing state of influxdb.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install disable influxdb
Removed /etc/systemd/system/multi-user.target.wants/influxdb.service.
Removed /etc/systemd/system/influxd.service.

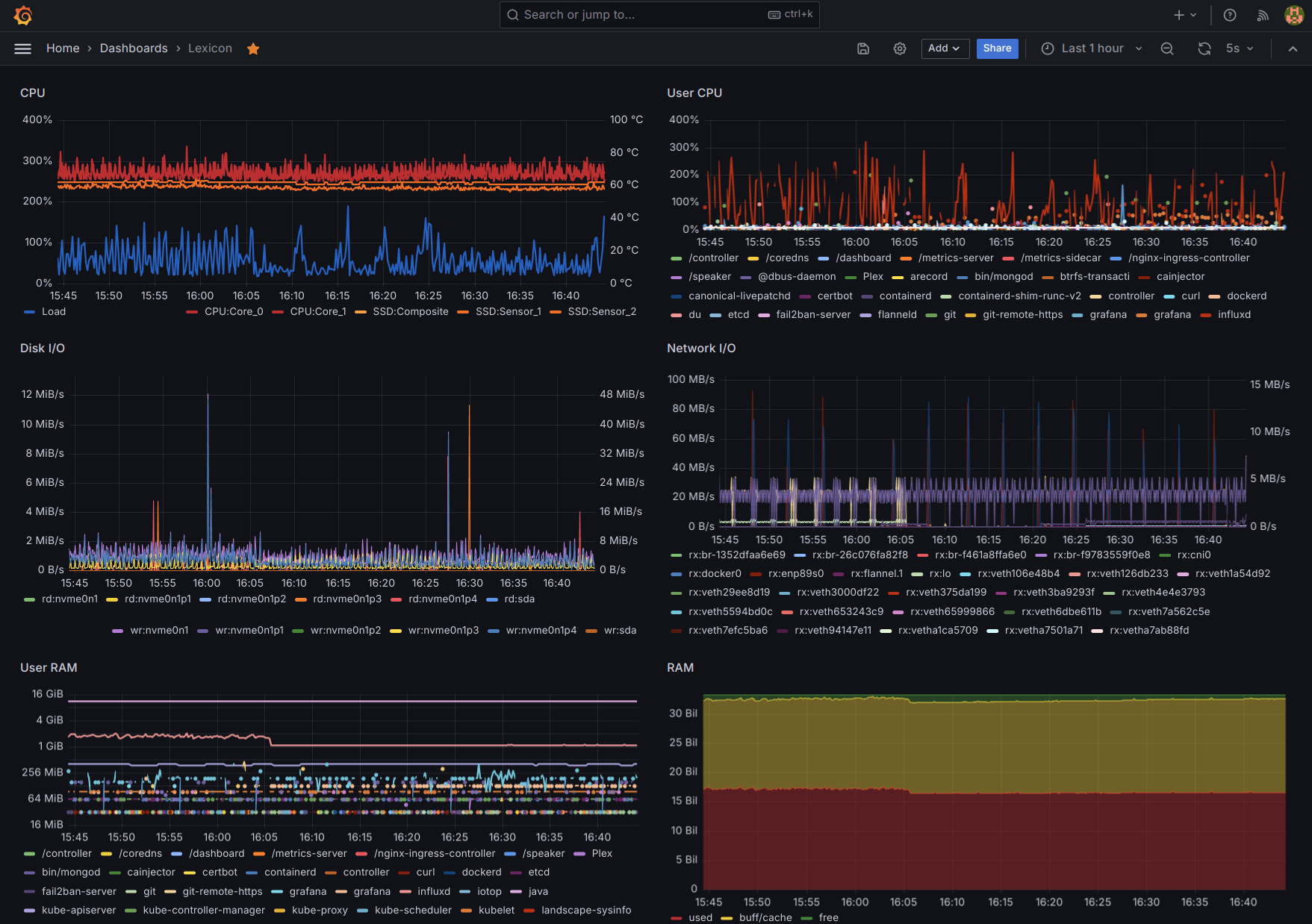

This was rather necessary to keep the server cooler and quieter, if not completely cool and quiet:
