Audiobookshelf on Kubernetes

Migrating a Plex Media Server to Kubernetes, was a significant improvement for the maintenance of the Plex Media Server I use to listen to podcasts and audiobooks, to keep me company while I play games, but after all these years Plex remains a very insufficient and deficient application for audiobooks.

Enter audiobookshelf (because Emby and Jellyfin are also not great)

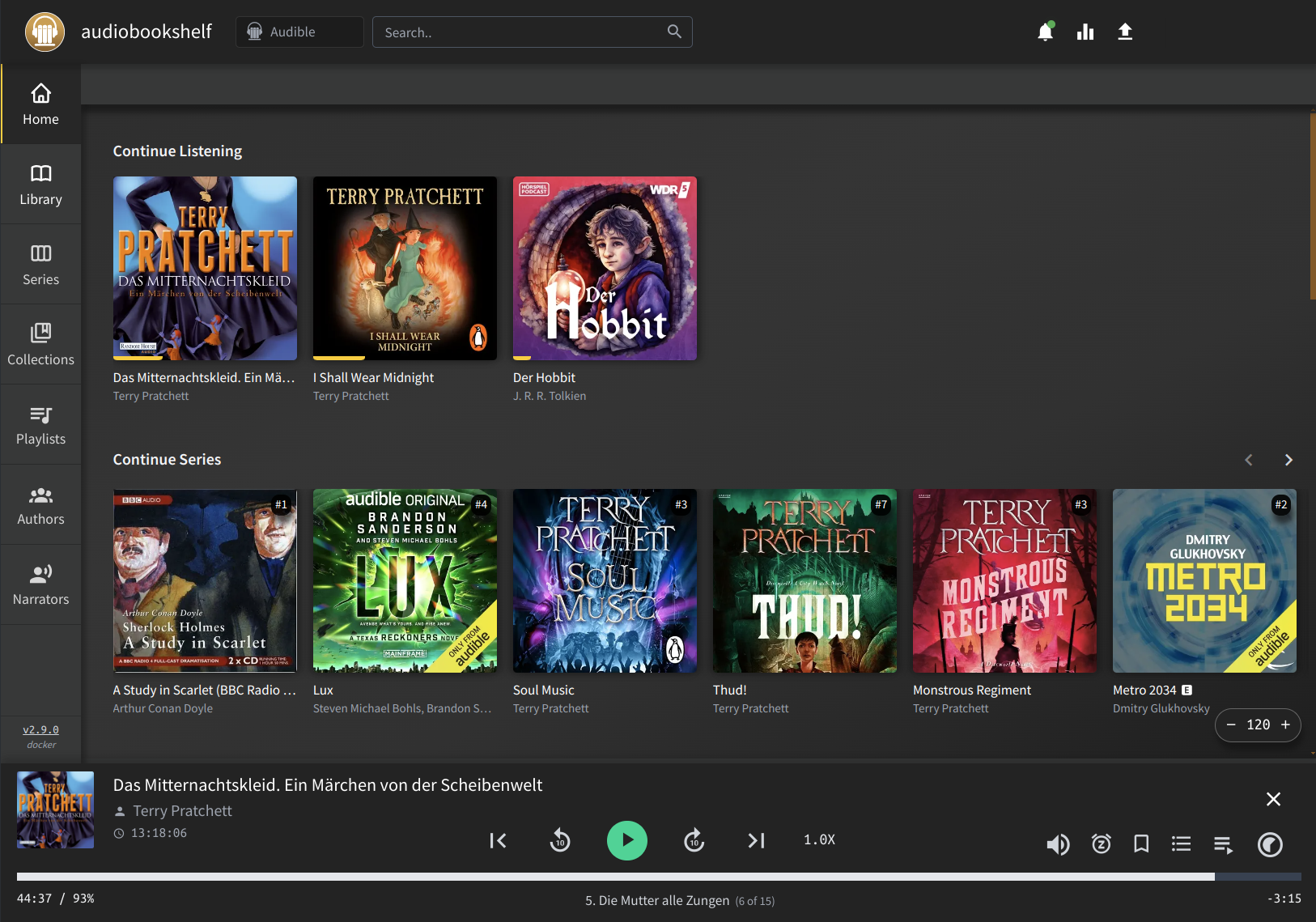

Audiobookshelf home page

Installation on Kubernetes

Audiobookshelf configuration requires writeable directories mounted at /config and /metadata for database, cache, etc.

# useradd -d /home/k8s/audiobookshelf -s /usr/sbin/nologin audiobookshelf
# mkdir /home/k8s/audiobookshelf/config /home/k8s/audiobookshelf/metadata
# chown -R audiobookshelf.audiobookshelf /home/k8s/audiobookshelf
# ls -dln /home/k8s/audiobookshelf/
drwxr-xr-x 1 1006 1006 28 Feb 27 22:47 /home/k8s/audiobookshelf/

Note the UID/GID (1006) to be used in the Kubernetes deployment securityContext later.

Docker Compose suggests mounting audiobooks and podcasts as separate volumes, so the following Kubernetes deployment will do so, even though it would also work to have it all under a single volume.

Create the following audiobookshelf.yaml and deploy it:

$ kubectl apply -f audiobookshelf.yaml
namespace/audiobookshelf created
persistentvolume/audiobookshelf-pv-config created
persistentvolume/audiobookshelf-pv-metadata created
persistentvolume/audiobookshelf-pv-audiobooks created
persistentvolume/audiobookshelf-pv-podcasts created
persistentvolumeclaim/audiobookshelf-pvc-config created
persistentvolumeclaim/audiobookshelf-pvc-metadata created
persistentvolumeclaim/audiobookshelf-pvc-audiobooks created
persistentvolumeclaim/audiobookshelf-pvc-podcasts created
deployment.apps/audiobookshelf created
service/audiobookshelf created
ingress.networking.k8s.io/audiobookshelf-ingress created

$ kubectl -n audiobookshelf get service
NAME             TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)           AGE
audiobookshelf   NodePort   10.102.115.191   <none>        13378:31378/TCP   20s
cm-acme-http-solver-jh67q   NodePort   10.106.142.67   <none>        8089:30126/TCP    2m39s

$ kubectl -n audiobookshelf describe ingress audiobookshelf-ingress
Name:             audiobookshelf-ingress
Labels:           <none>
Namespace:        audiobookshelf
Address:
Ingress Class:    nginx
Default backend:  <default>
TLS:
  tls-secret terminates aus.ssl.uu.am
Rules:
  Host                Path  Backends
  ----                ----  --------
  aus.ssl.uu.am
                      /   audiobookshelf:31378 (10.244.0.202:13378)
Annotations:          acme.cert-manager.io/http01-edit-in-place: true
                      cert-manager.io/cluster-issuer: letsencrypt-prod
                      cert-manager.io/issue-temporary-certificate: true
Events:
  Type    Reason             Age   From                       Message
  ----    ------             ----  ----                       -------
  Normal  Sync               26s   nginx-ingress-controller   Scheduled for sync
  Normal  CreateCertificate  26s   cert-manager-ingress-shim  Successfully created Certificate "tls-secret"

The server is now available at http://192.168.0.6:31378

NGinx should also make it available at https://aus.ssl.uu.am

Deployment

Kubernetes deployment: audiobookshelf.yaml
audiobookshelf.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
apiVersion: v1
kind: Namespace
metadata:
  name: audiobookshelf
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: audiobookshelf-pv-config
  namespace: audiobookshelf
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/audiobookshelf/config
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: audiobookshelf-pv-metadata
  namespace: audiobookshelf
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/audiobookshelf/metadata
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: audiobookshelf-pv-audiobooks
  namespace: audiobookshelf
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/depot/audio/Audiobooks
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: audiobookshelf-pv-podcasts
  namespace: audiobookshelf
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/depot/audio/Podcasts
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: audiobookshelf-pvc-config
  namespace: audiobookshelf
spec:
  storageClassName: manual
  volumeName: audiobookshelf-pv-config
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: audiobookshelf-pvc-metadata
  namespace: audiobookshelf
spec:
  storageClassName: manual
  volumeName: audiobookshelf-pv-metadata
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: audiobookshelf-pvc-audiobooks
  namespace: audiobookshelf
spec:
  storageClassName: manual
  volumeName: audiobookshelf-pv-audiobooks
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: audiobookshelf-pvc-podcasts
  namespace: audiobookshelf
spec:
  storageClassName: manual
  volumeName: audiobookshelf-pv-podcasts
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: audiobookshelf
  name: audiobookshelf
  namespace: audiobookshelf
spec:
  replicas: 1
  revisionHistoryLimit: 0
  selector:
    matchLabels:
      app: audiobookshelf
  strategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: audiobookshelf
    spec:
      containers:
        - image: ghcr.io/advplyr/audiobookshelf:latest
          imagePullPolicy: Always
          name: audiobookshelf
          env:
          - name: PORT
            value: "13378"
          ports:
          - containerPort: 13378
          resources: {}
          stdin: true
          tty: true
          volumeMounts:
          - mountPath: /config
            name: audiobookshelf-config
          - mountPath: /metadata
            name: audiobookshelf-metadata
          - mountPath: /audiobooks
            name: audiobookshelf-audiobooks
          - mountPath: /podcasts
            name: audiobookshelf-podcasts
          securityContext:
            allowPrivilegeEscalation: false
            runAsUser: 1006
            runAsGroup: 1006
      restartPolicy: Always
      volumes:
      - name: audiobookshelf-config
        persistentVolumeClaim:
          claimName: audiobookshelf-pvc-config
      - name: audiobookshelf-metadata
        persistentVolumeClaim:
          claimName: audiobookshelf-pvc-metadata
      - name: audiobookshelf-audiobooks
        persistentVolumeClaim:
          claimName: audiobookshelf-pvc-audiobooks
      - name: audiobookshelf-podcasts
        persistentVolumeClaim:
          claimName: audiobookshelf-pvc-podcasts
---
kind: Service
apiVersion: v1
metadata:
  name: audiobookshelf-svc
  namespace: audiobookshelf
spec:
  type: NodePort
  ports:
  - port: 13388
    nodePort: 31378
    targetPort: 13378
  selector:
    app: audiobookshelf
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: audiobookshelf-ingress
  namespace: audiobookshelf
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/websocket-services: audiobookshelf-svc
spec:
  ingressClassName: nginx
  rules:
    - host: abs.ssl.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: audiobookshelf-svc
                port:
                  number: 13378
  tls:
    - secretName: tls-secret
      hosts:
        - abs.ssl.uu.am

The above deployment is based on audiobookshelf Docker documentation and Audiobookshelf Helm Chart By TrueCharts.

Troubleshooting

Contrary to what Configuration would suggest, the server will by default try to listen on port 80. To override this the env variable PORT must be set:

audiobookshelf.yaml
153
154
155
          env:
          - name: PORT
            value: "13378"

Otherwise, when running as a non-privileged user, this will cause it to crash-loop:

$ kubectl get all -n audiobookshelf
NAME                                  READY   STATUS             RESTARTS      AGE
pod/audiobookshelf-754d55cd68-z4br6   0/1     CrashLoopBackOff   4 (59s ago)   3m9s

NAME                         TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)           AGE
service/audiobookshelf-tcp   NodePort   10.97.42.11   <none>        13378:32164/TCP   10m

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/audiobookshelf   0/1     1            0           3m9s

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/audiobookshelf-754d55cd68   1         1         0       3m9s

$ kubectl -n audiobookshelf describe pod audiobookshelf-754d55cd68-z4br6
Events:
  Type     Reason     Age                    From               Message
  ----     ------     ----                   ----               -------
  Normal   Scheduled  5m56s                  default-scheduler  Successfully assigned audiobookshelf/audiobookshelf-754d55cd68-z4br6 to lexicon
  Normal   Pulled     5m29s                  kubelet            Successfully pulled image "ghcr.io/advplyr/audiobookshelf:latest" in 25.769s (25.769s including waiting)
  Normal   Pulled     5m26s                  kubelet            Successfully pulled image "ghcr.io/advplyr/audiobookshelf:latest" in 661ms (661ms including waiting)
  Normal   Pulled     5m9s                   kubelet            Successfully pulled image "ghcr.io/advplyr/audiobookshelf:latest" in 659ms (659ms including waiting)
  Normal   Created    4m39s (x4 over 5m29s)  kubelet            Created container audiobookshelf
  Normal   Started    4m39s (x4 over 5m29s)  kubelet            Started container audiobookshelf
  Normal   Pulled     4m39s                  kubelet            Successfully pulled image "ghcr.io/advplyr/audiobookshelf:latest" in 752ms (752ms including waiting)
  Normal   Pulling    3m48s (x5 over 5m55s)  kubelet            Pulling image "ghcr.io/advplyr/audiobookshelf:latest"
  Normal   Pulled     3m47s                  kubelet            Successfully pulled image "ghcr.io/advplyr/audiobookshelf:latest" in 634ms (634ms including waiting)
  Warning  BackOff    47s (x22 over 5m25s)   kubelet            Back-off restarting failed container audiobookshelf in pod audiobookshelf-754d55cd68-z4br6_audiobookshelf(147c22bc-5f0b-4ed8-a881-478748234776)

$ kubectl -n audiobookshelf logs audiobookshelf-754d55cd68-z4br6
Config /config /metadata
[2024-02-27 22:29:14.925] INFO: === Starting Server ===
[2024-02-27 22:29:14.939] INFO: [Server] Init v2.8.0
[2024-02-27 22:29:14.967] INFO: [Database] Initializing db at "/config/absdatabase.sqlite"
[2024-02-27 22:29:14.998] INFO: [Database] Db connection was successful
[2024-02-27 22:29:15.065] INFO: [Database] Db initialized with models: user, library, libraryFolder, book, podcast, podcastEpisode, libraryItem, mediaProgress, series, bookSeries, author, bookAuthor, collection, collectionBook, playlist, playlistMediaItem, device, playbackSession, feed, feedEpisode, setting, customMetadataProvider
[2024-02-27 22:29:15.080] INFO: [LogManager] Init current daily log filename: 2024-02-27.txt
[2024-02-27 22:29:15.084] INFO: [BackupManager] 0 Backups Found
[2024-02-27 22:29:15.085] INFO: [BackupManager] Auto Backups are disabled
Warning: connect.session() MemoryStore is not
designed for a production environment, as it will leak
memory, and will not scale past a single process.
[2024-02-27 22:29:15.095] FATAL: [Server] Uncaught exception origin: uncaughtException, error: Error: listen EACCES: permission denied 0.0.0.0:80
    at Server.setupListenHandle [as _listen2] (node:net:1855:21)
    at listenInCluster (node:net:1920:12)
    at Server.listen (node:net:2008:7)
    at Server.start (/server/Server.js:319:17) {
  code: 'EACCES',
  errno: -13,
  syscall: 'listen',
  address: '0.0.0.0',
  port: 80
} (Server.js:160)
node:events:496
      throw er; // Unhandled 'error' event
      ^

Error: listen EACCES: permission denied 0.0.0.0:80
    at Server.setupListenHandle [as _listen2] (node:net:1855:21)
    at listenInCluster (node:net:1920:12)
    at Server.listen (node:net:2008:7)
    at Server.start (/server/Server.js:319:17)
Emitted 'error' event on Server instance at:
    at emitErrorNT (node:net:1899:8)
    at process.processTicksAndRejections (node:internal/process/task_queues:82:21) {
  code: 'EACCES',
  errno: -13,
  syscall: 'listen',
  address: '0.0.0.0',
  port: 80
}

Node.js v20.11.1

Configuration

Once the service is running, accessing the web interface allows creating the first (root) user. Additional users can (and should) be created, so they can each have their own progress saved throughout books and podcatss. Users can also have access to different sets of libraries, although by default they will have access to all libraries.

Mobile app

To complete the self-hosted audiobook service, there is also the mobile app advplyr/audiobookshelf-app.

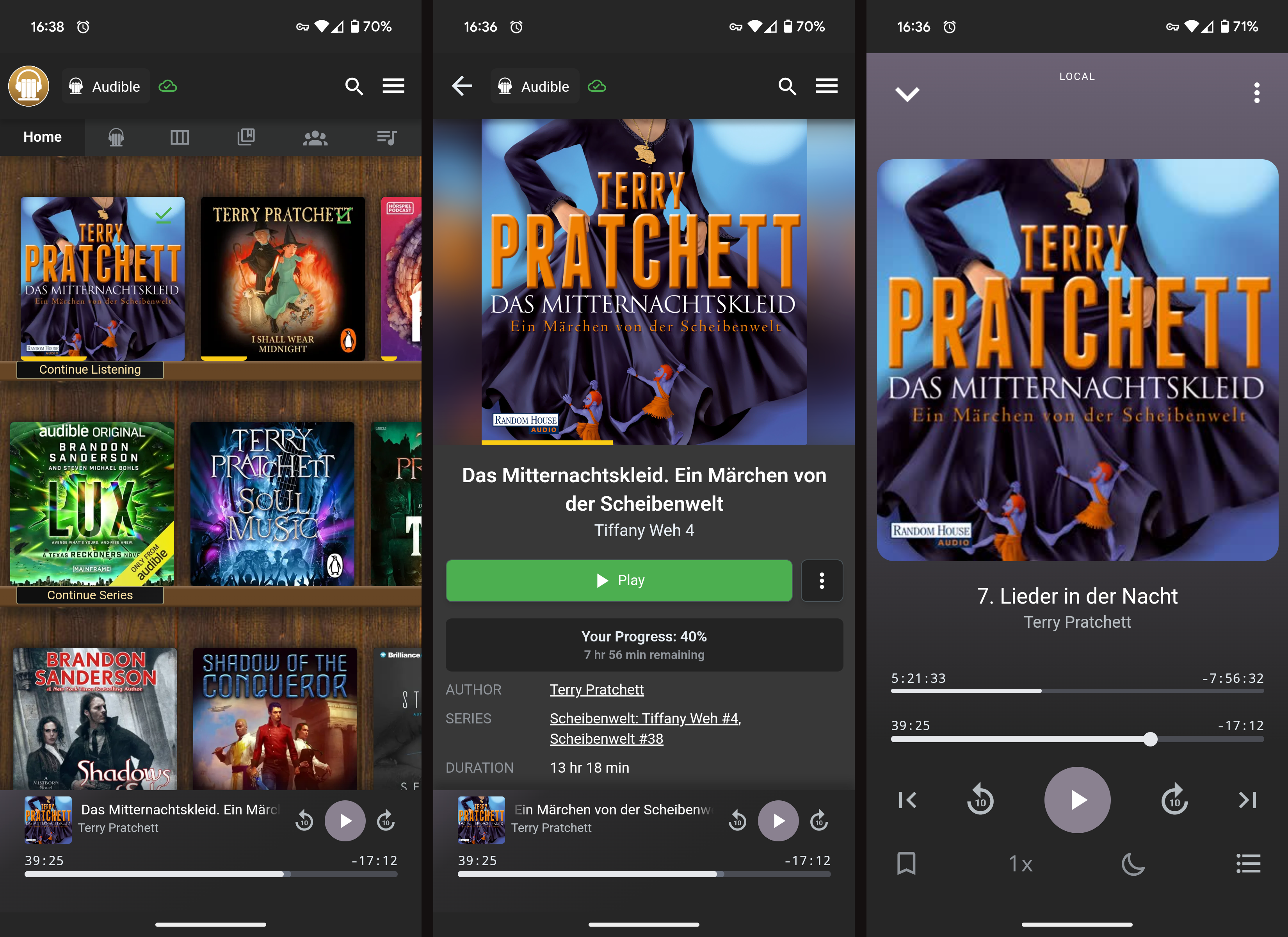

Audiobookshelf Android app

Audiobookshelf Android app can easily be installed from Google Play directly. The iOS app cannot simply be installed, because Apple has a hard limit of 10k beta testers. Alternatively, plappa can be used to stream audiobooks and podcasts from AudioBookShelf, Emby and Jellyfin. Downloading content and listening offline requires an in-app purchase.

Better Features

There is a lot in Audiobookshelf that is better, or much better, than in Plex:

  • Saving the progress through books and podcats, per user.
  • Podcats with a separate feed for pre/after show are somehow corrected merged together.
  • REST API that may allow implementing some of the missing features below.

Matching Metadata

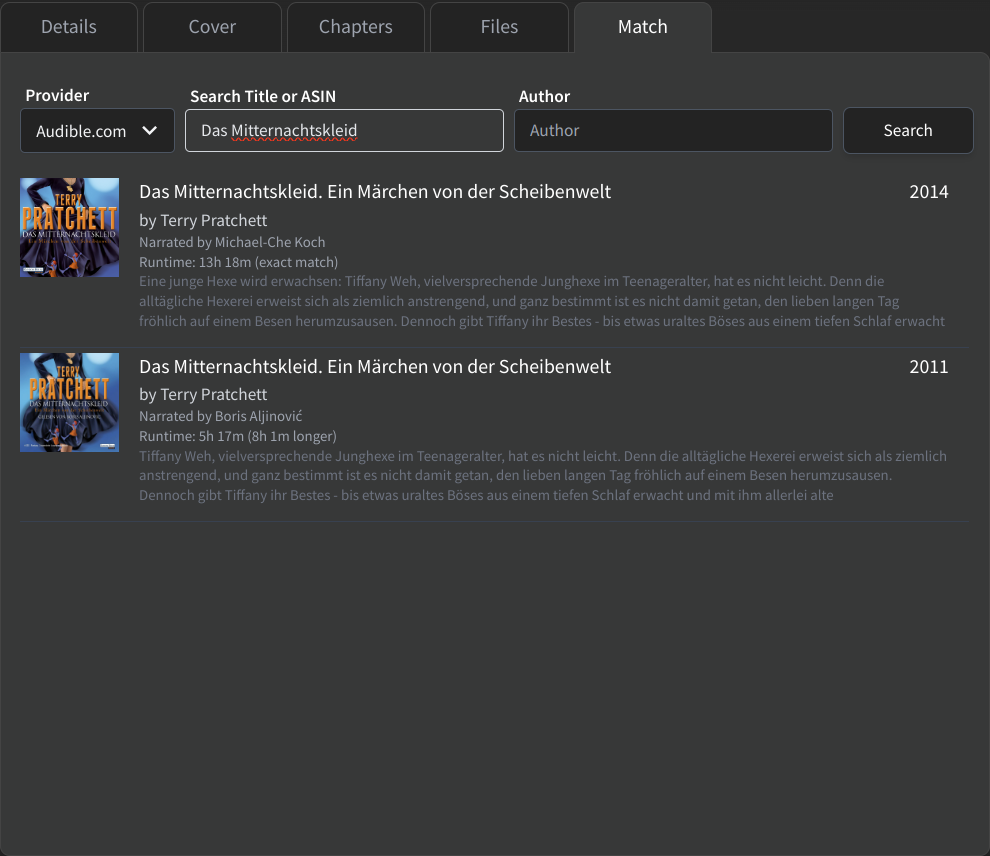

One of my favorite features of audiobookshelf is the ability to fetch book metadata and thus more clearly tell different versions of a book a part, e.g. abridged vs unabridged:

Audiobookshelf Match

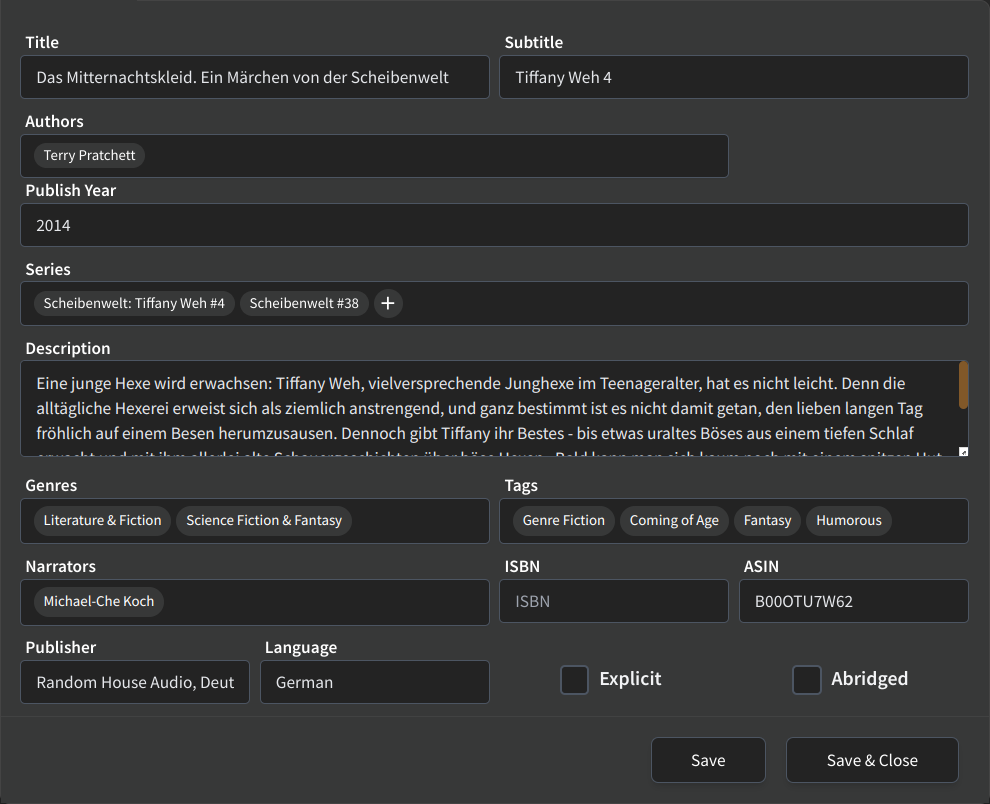

After selecting one matching book, metadata can be edited or even left out. This is very useful when an exact match cannot be found, but a close enough match can be used to fetch the matching parts of its metadata while at the same time manually editing or adding as needed. After importing metadata, there are further options to add or edit book metadata in the Details tab:

Audiobookshelf Details

I find it particularly useful to add or edit:

  • Explict, because this is seem to never be provided by matching metadata and in any case it can be a matter of opinion.
  • Language, if not correctly matched (usually it is).
  • Series. A book can have a different places in different series or subseries, and you can create your own series too.

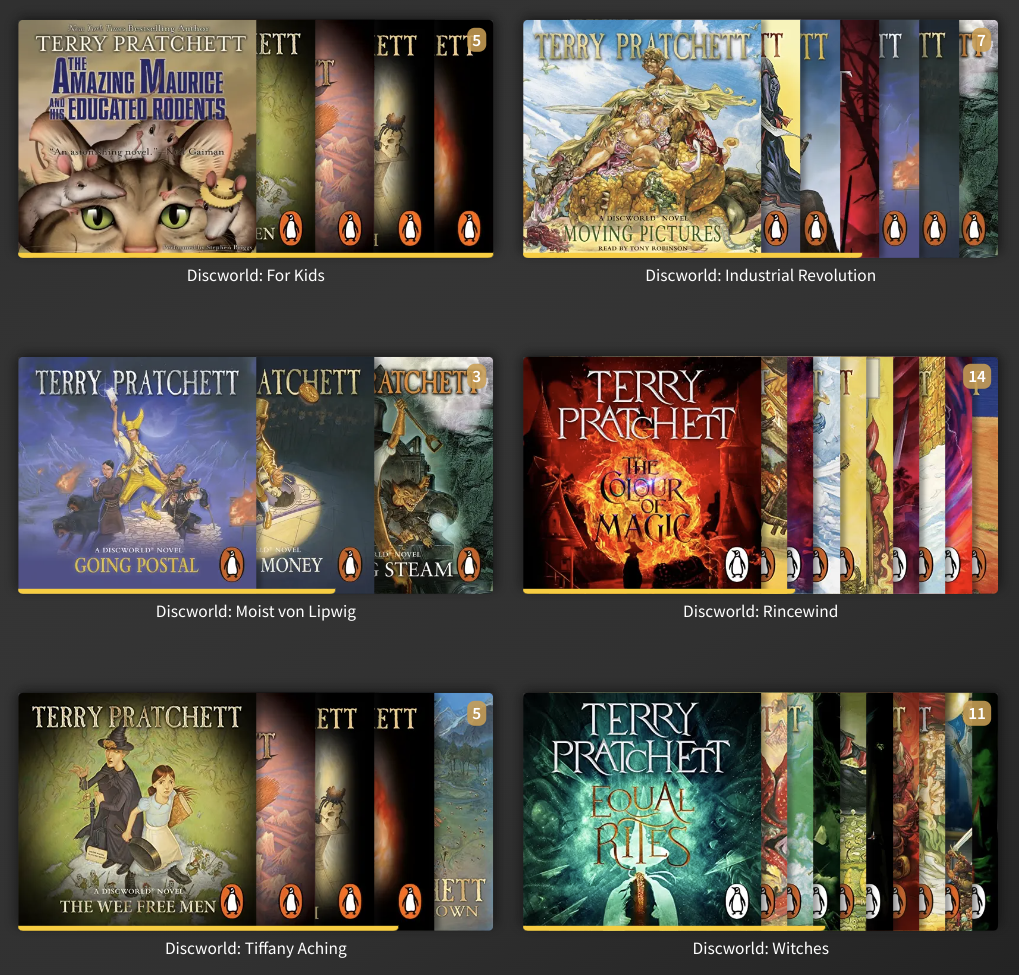

The Series field is interesting to then navigate books by series:

Audiobookshelf Series

PDF Reader

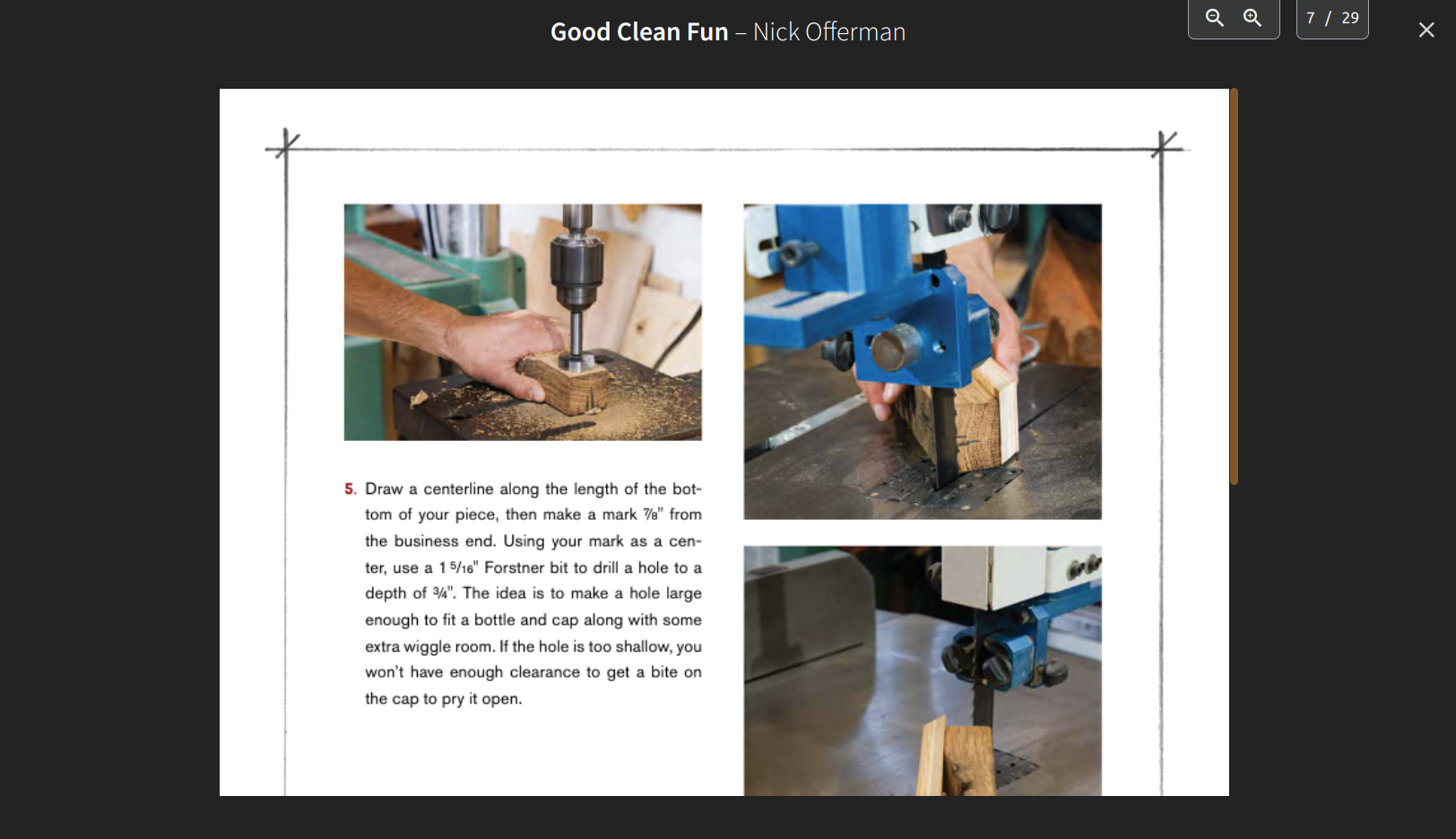

When there is a PDF file along with audio files, this can be read from the browser by clicking the corresponding icon e.g. this is (half) a page of Nick Offerman's Good Clean Fun:

Audiobookshelf eBook

Podcast Publication Dates

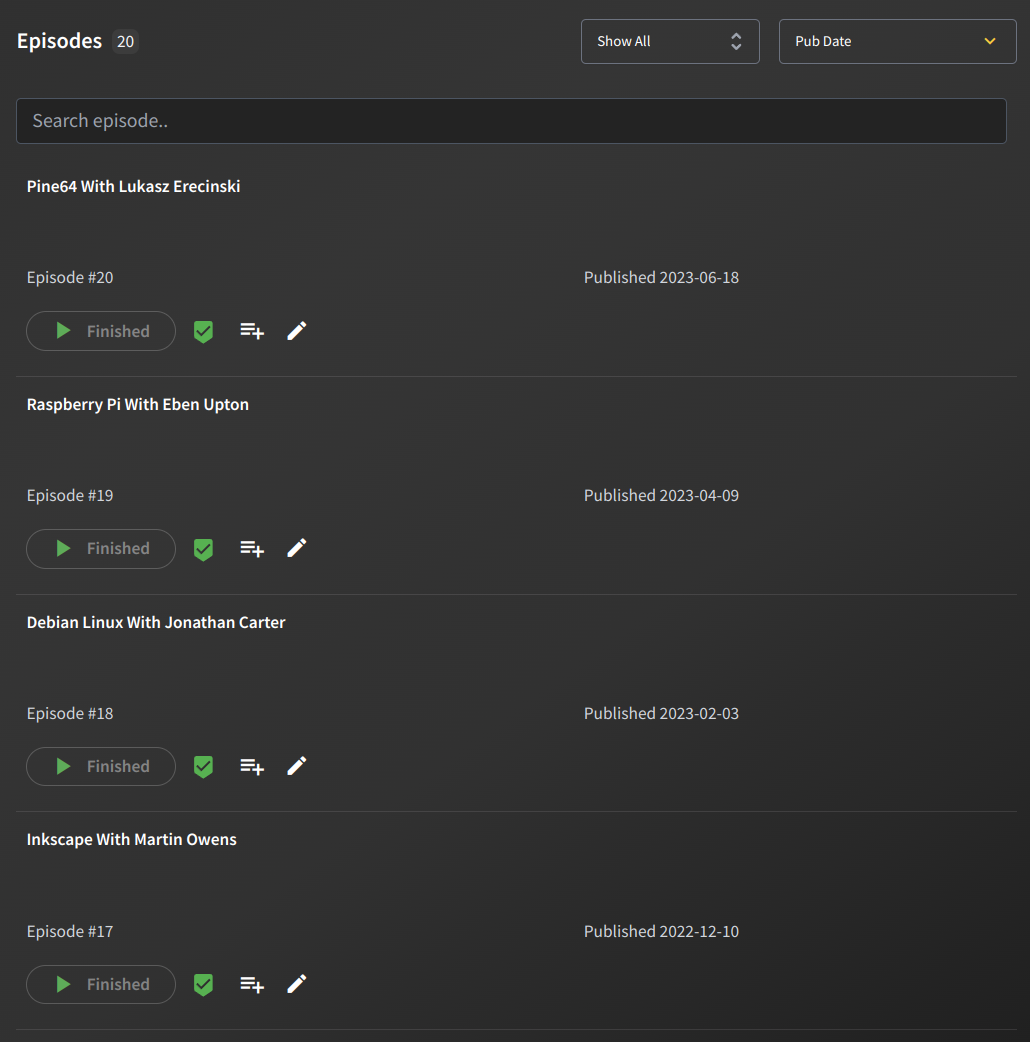

At least when using a separate tool for downloading podcast episodes, they have have only a year of publication, from the TYER ID3 frame, so they show up with their release date being as YYYY-01-01 and they cannot be properly sorted by release date. This could be fixed by allowing Audiobookshelf to download RSS feeds directly (have not tried), but also by updating the separate tool to set the TDAT and TIME frames. Once these are set in the MP3 files, audiobookshell will correctly parse and display them:

Audiobookshelf podcast episodes by publication date

Podcast Progress

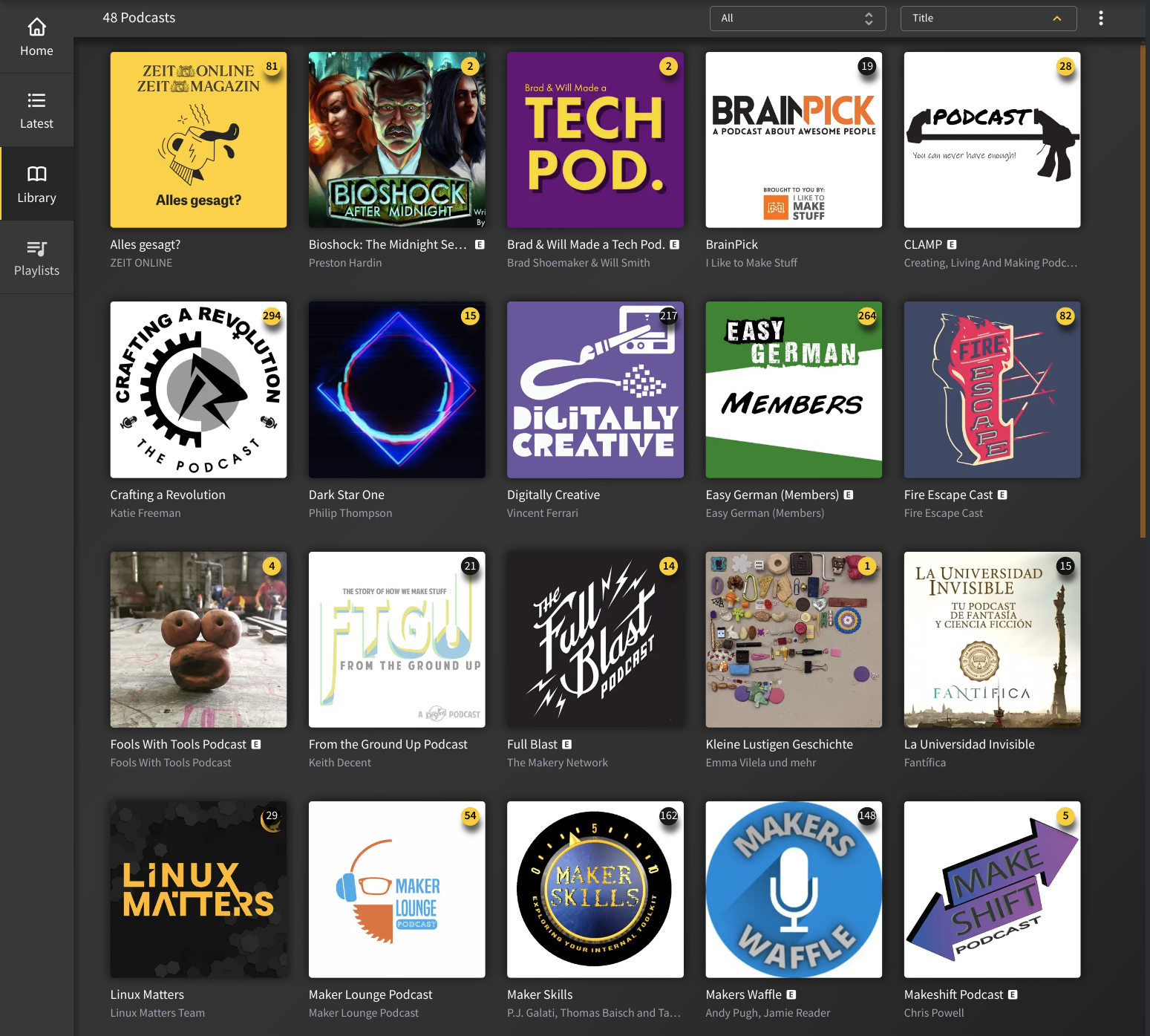

Just like with Audiobooks, keep track of which podcasts episodes each user has listed to is a central feature. One little detail I really like about how this is done, is the yellow or black circle on the podcast cover indicating whether all episodes have been listed to already (black circle) or otherwise how many are yet to be listened to (yellow circle):

Audiobookshelf podcasts by title

Missing Features

After a few days listening to books and podcasts, a few features turn out to be missing or not working as expected. Most of these are already in the issue tracker:

audiobookshelf

audiobookshelf-app

Batch Updates

Not only is progress saved automatically while listening, podcasts can also be updated to mark episodes are finished. What is missing here is the ability to select multiple episodes easily and quickly, for instance with Shift+click the last episode of a range when the first one is already selected. It would help to even just be able to mark all episodes as finished, even if only to then mark a few as unfinished.

Collections

The option to remove books to collections seems to be missing and there doesn't seem to be any way to remove collections at all.

Playlists

Playlists have the same problematic limitations as Collections: no way option to delete them, or remove episodes from them.

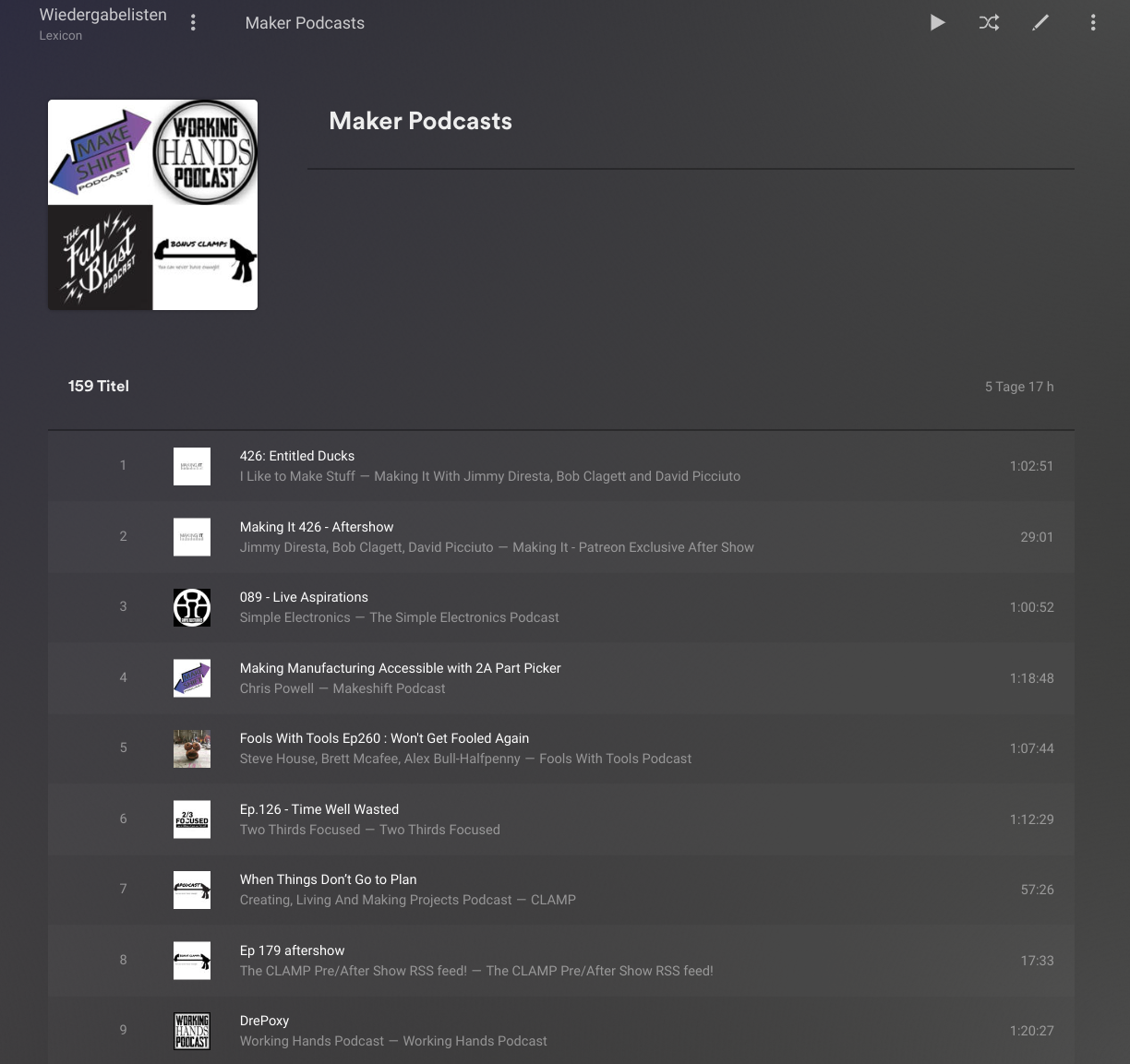

This is the one and only thing I still use Plex for. I like to listen to podcasts in by their publication date, especially because I listen to several podcasts that cross-reference and even invite on each other. I have not found a good way to do this with Audiobookshelf, given the no-remove-option limitations, so I'm still using Plex.

Plex podcast playlist
