Migrating a Plex Media Server to Kubernetes

Running Plex Media Server on Linux is easy. Updating it is easy too. Re-using the library from an old server on a new one is also quite easy.

That said, running anything in Kubernetes is only slightly harder once, and after that updates are entirely automatic and moving from one cluster to another would be even easier.

Prologue

I’ve been using Plex Media Server for a few years, primarily to catch up with a bunch of podcasts I started listening from their beginning in the spring of 2020, and occasionally to share my Audible library with the family. The family doesn’t really use any of this, specially since they got Spotify, but this library of Podcasts has been a faithful companion of mine for the last few years, at home and abroad.

The Kubernetes cluster running on Lexicon has proven stable and convenient enough that I finally felt motivated to migrate the Plex Media Server, from the stand-alone setup into the Kubernetes cluster.

Kubernetes

Plex offers their official Docker image (plexinc/pms-docker) but somehow the better documentation, in Reddit and blog posts, seems to converge on the linuxserver/plex image from the LinuxServer.io team. For the most part, I followed Kubernetes Part 14: Deploy Plexserver from debontonline.com, except instead of NFS shares I used local paths where the data is already present. For that, I took inspiration from Greg Jeanmarts’ article (K3S – 5/8) Self-host your Media Center On Kubernetes with Plex, Sonarr, Radarr, Transmission and Jackett.

I like to keep my Kubernetes deployments each in a single file, so this one is a bit long. The sections are in the order introduced by Kubernetes Part 14: Deploy Plexserver:

1. Two PersistentVolumes for the data (media) and config (library).
2. Two PersistentVolumeClaims for these.
3. A Deployment to run the Plex image using the above storage volumes.
4. Two Services to expose TCP and UDP on the same ports.
5. No Ingress because I had no long-term need to access this Plex server directly. Having already configured similar Plex servers (e.g. on a Raspberry Pi), once the new server is claimed it will show up along with others at app.plex.tv.

Notes about highlighted lines:

• 14,64: 1Gi may seem excessive for the /config directory, but with a large collection comes a large database under this directory.
• 19: Local storage for Kubernetes pods goes under /home/k8s (root partition is small, no separate /var partition).
• 34: Local storage for audio files goes under /home/depot (including symlinks for a few folder in a SSD).
• 49: Local storage for video files goes under /home/ssd.
• 29,44,79,94: 500Gi may seem even more excessive, but this is not much more than the storage space taken by my collections already:
  • 124 GB are taken by my Audible library (about 350 books).

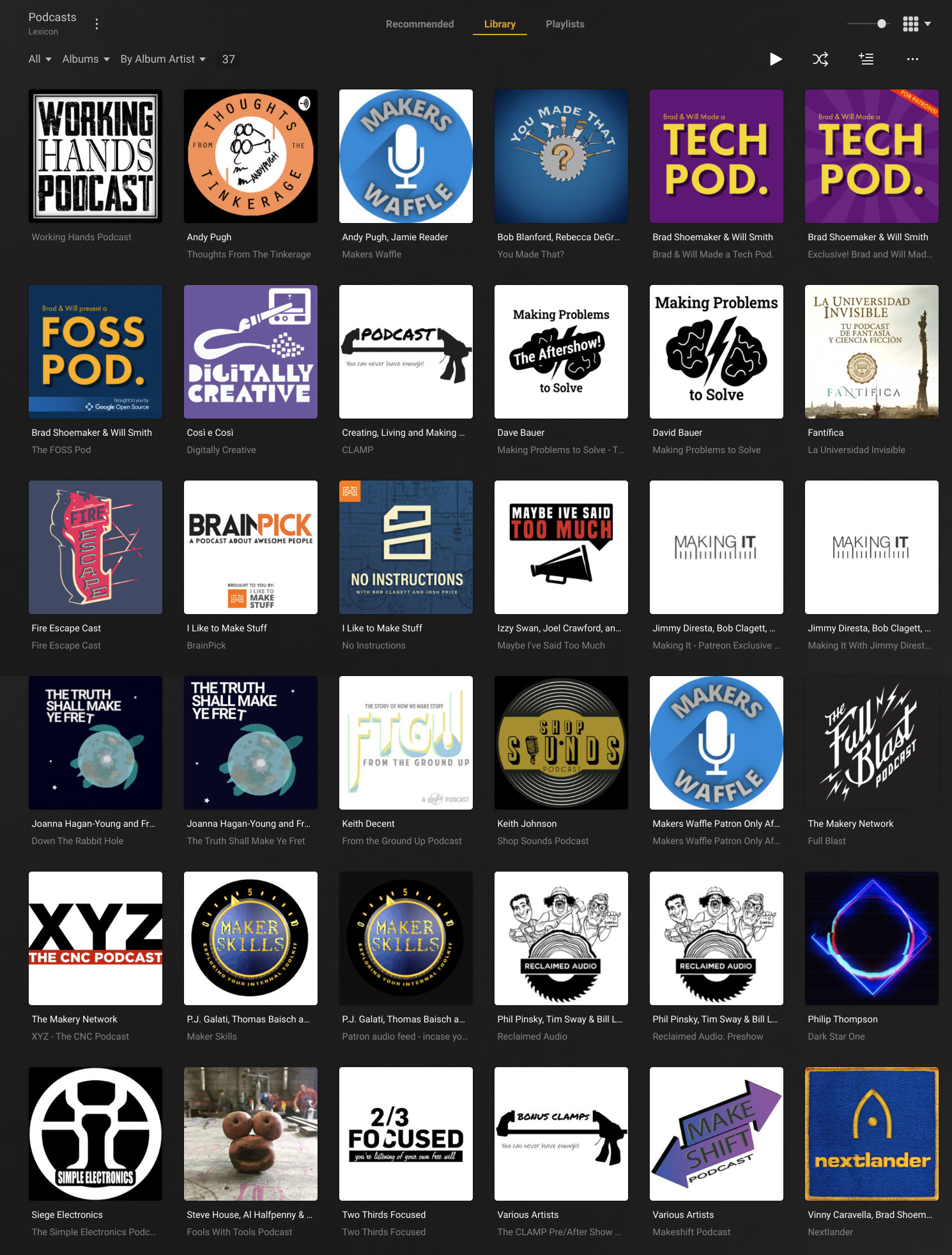

  • 320 GB are taken by the Podcasts I’ve downloaded, most of which I treasure.
• 132: the token obtained from plex.tv/claim ─ expires in just 4 minutes.
• 134,136: the old Plex server was running as user plex and 998 was the UID and GID assigned to it.
• 223,252: this IP address comes from the range of reserved when installing MetallLB and should be the same on both services (TCP and UDP).

Kubernetes deployment: plex-media-server.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: plexserver
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: plexserver-pv-config
  namespace: plexserver
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/plexmediaserver
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: plexserver-pv-data-depot
  namespace: plexserver
spec:
  storageClassName: manual
  capacity:
    storage: 500Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/depot
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: plexserver-pv-data-video
  namespace: plexserver
spec:
  storageClassName: manual
  capacity:
    storage: 500Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/ssd/video
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: plexserver-pvc-config
  namespace: plexserver
spec:
  storageClassName: manual
  volumeName: plexserver-pv-config
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: plexserver-pvc-data-depot
  namespace: plexserver
spec:
  storageClassName: manual
  volumeName: plexserver-pv-data-depot
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 500Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: plexserver-pvc-data-video
  namespace: plexserver
spec:
  storageClassName: manual
  volumeName: plexserver-pv-data-video
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 500Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: plexserver
  name: plexserver
  namespace: plexserver
spec:
  replicas: 1
  revisionHistoryLimit: 0
  selector:
    matchLabels:
      app: plexserver
  strategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: plexserver
    spec:
      volumes:
      - name: plex-config
        persistentVolumeClaim:
          claimName: plexserver-pvc-config
      - name: data-depot
        persistentVolumeClaim:
          claimName: plexserver-pvc-data-depot
      - name: data-video
        persistentVolumeClaim:
          claimName: plexserver-pvc-data-video
      containers:
      - env:
        - name: PLEX_CLAIM
          value: claim-deDSmtULWyYbvwt_2xAu
        - name: PGID
          value: "998"
        - name: PUID
          value: "998"
        - name: VERSION
          value: latest
        - name: TZ
          value: Europe/Amsterdam
        image: ghcr.io/linuxserver/plex
        imagePullPolicy: Always
        name: plexserver
        ports:
        - containerPort: 32400
          name: pms-web
          protocol: TCP
        - containerPort: 32469
          name: dlna-tcp
          protocol: TCP
        - containerPort: 1900
          name: dlna-udp
          protocol: UDP
        - containerPort: 3005
          name: plex-companion
          protocol: TCP
        - containerPort: 5353
          name: discovery-udp
          protocol: UDP
        - containerPort: 8324
          name: plex-roku
          protocol: TCP
        - containerPort: 32410
          name: gdm-32410
          protocol: UDP
        - containerPort: 32412
          name: gdm-32412
          protocol: UDP
        - containerPort: 32413
          name: gdm-32413
          protocol: UDP
        - containerPort: 32414
          name: gdm-32414
          protocol: UDP
        resources: {}
        stdin: true
        tty: true
        volumeMounts:
        - mountPath: /config
          name: plex-config
        - mountPath: /home/depot
          name: data-depot
        - mountPath: /home/ssd/video
          name: data-video
      restartPolicy: Always
---
kind: Service
apiVersion: v1
metadata:
  name: plex-udp
  namespace: plexserver
  annotations:
    metallb.universe.tf/allow-shared-ip: plexserver
spec:
  selector:
    app: plexserver
  ports:
  - port: 1900
    targetPort: 1900
    name: dlna-udp
    protocol: UDP
  - port: 5353
    targetPort: 5353
    name: discovery-udp
    protocol: UDP
  - port: 32410
    targetPort: 32410
    name: gdm-32410
    protocol: UDP
  - port: 32412
    targetPort: 32412
    name: gdm-32412
    protocol: UDP
  - port: 32413
    targetPort: 32413
    name: gdm-32413
    protocol: UDP
  - port: 32414
    targetPort: 32414
    name: gdm-32414
    protocol: UDP
  type: LoadBalancer
  loadBalancerIP: 192.168.0.128  # Should be one from the MetalLB range and the same as the TCP service.
---
kind: Service
apiVersion: v1
metadata:
  name: plex-tcp
  namespace: plexserver
  annotations:
    metallb.universe.tf/allow-shared-ip: plexserver
spec:
  selector:
    app: plexserver
  ports:
  - port: 32400
    targetPort: 32400
    name: pms-web
    protocol: TCP
  - port: 3005
    targetPort: 3005
    name: plex-companion
  - port: 8324
    name: plex-roku
    targetPort: 8324
    protocol: TCP
  - port: 32469
    targetPort: 32469
    name: dlna-tcp
    protocol: TCP
  type: LoadBalancer
  loadBalancerIP: 192.168.0.128  # Should be one from the MetalLB range and the same as the UDP service.

Having saved the above as plex-media-server.yaml all is left to do now is apply it:

$ kubectl apply -f plex-media-server.yaml
namespace/plexserver created
persistentvolume/plexserver-pv-config created
persistentvolume/plexserver-pv-data-depot created
persistentvolume/plexserver-pv-data-video created
persistentvolumeclaim/plexserver-pvc-config created
persistentvolumeclaim/plexserver-pvc-data-depot created
persistentvolumeclaim/plexserver-pvc-data-video created
deployment.apps/plexserver created
service/plex-udp created
service/plex-tcp created

After about a minute the pod finds the PersistentVolumeClaim and Plex is ready at 192.168.0.128:32400/web (LAN only, no SSL).

When accessing the new server’s web interface for the first time, log in and create a test library with a small body of media, just to confirm that Plex is able to scan the files. If there is no previous Plex server, this is already a good time to let it scan the entire media collection.

Addition (that didn’t work)

GPU in this server isn’t big and video transcoding is not actually necessary, since this server is used almost exclusively for audio, but I tried following Plex on Kubernetes with intel iGPU passthrough – Small how to anyway to see how it’d go. It didn’t.

First, I didn’t even try tagging the server (single node) with the label intel.feature.node.kubernetes.io/gpu=true ─ this may have prevented pods from finding the GPU but I suspect something else did. Installing a certificate manager should not be necessary, because it’s already installed.

intel/intel-device-plugins-for-kubernetes requires NFD (Node Feature Discovery) for the Device Plugin operator, then the operator and GPU can be installed with their respective helm charts:

• intel/helm-charts/charts/device-plugin-operator
• intel/helm-charts/charts/gpu-device-plugin

Installing all these through the Helm charts should be quite easy:

$ helm repo add nfd https://kubernetes-sigs.github.io/node-feature-discovery/charts
$ helm repo add intel https://intel.github.io/helm-charts/
$ helm repo update

$ helm install nfd nfd/node-feature-discovery \
  --namespace node-feature-discovery --create-namespace --version 0.12.1 \
  --set 'master.extraLabelNs={gpu.intel.com,sgx.intel.com}' \
  --set 'master.resourceLabels={gpu.intel.com/millicores,gpu.intel.com/memory.max,gpu.intel.com/tiles,sgx.intel.com/epc}'
NAME: nfd
LAST DEPLOYED: Fri Sep 15 05:30:14 2023
NAMESPACE: node-feature-discovery
STATUS: deployed
REVISION: 1
TEST SUITE: None

$ helm install device-plugin-operator intel/intel-device-plugins-operator
NAME: device-plugin-operator
LAST DEPLOYED: Fri Sep 15 05:31:28 2023
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Thank you for installing intel-device-plugins-operator.

The next step would be to install the device (plugin) specific chart.

$ helm install gpu-device-plugin intel/intel-device-plugins-gpu
NAME: gpu-device-plugin
LAST DEPLOYED: Fri Sep 15 05:32:11 2023
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None

$ helm show values intel/intel-device-plugins-operator
manager:
  image:
    hub: intel
    tag: ""
    pullPolicy: IfNotPresent

kubeRbacProxy:
  image:
    hub: gcr.io
    hubRepo: kubebuilder
    tag: v0.14.1
    pullPolicy: IfNotPresent

privateRegistry:
  registryUrl: ""
  registryUser: ""
  registrySecret: ""

$ helm show values intel/intel-device-plugins-gpu
name: gpudeviceplugin-sample

image:
  hub: intel
  tag: ""

initImage:
  hub: intel
  tag: ""

sharedDevNum: 1
logLevel: 2
resourceManager: false
enableMonitoring: true
allocationPolicy: "none"

nodeSelector:
  intel.feature.node.kubernetes.io/gpu: 'true'

nodeFeatureRule: false

I’m not sure what is missing. Attempting to assign the GPU to Plex by adding the following lines to plex-media-server.yaml did not work:

        resources:
            requests:
                gpu.intel.com/i915: "1"
            limits:
                gpu.intel.com/i915: "1"

Made the deployment fail with because the GPU was not available:

0/1 nodes are available: 1
Insufficient gpu.intel.com/i915.
preemption: 0/1 nodes are available: 1
No preemption victims found for incoming pod.

Alternative (that didn’t work)

There are also Helm charts, at least 2:

• munnerz/kube-plex which seems to be simpler
• ressu/kube-plex which is a fork of munnerz/kube-plex

I tried munnerz/kube-plex only; it didn’t work.

In all honestly, I didn’t really try hard, and didn’t quite see the motivation to use Helm charts instead a regular deployment (as seen above).

Installing the chart was supposed to be this easy:

$ helm install plex ./charts/kube-plex \
    --create-namespace \
    --namespace plex \
    --set claimToken=claim-VqczS1yENc_F8J7zitZo
NAME: plex
LAST DEPLOYED: Wed Sep 13 22:40:48 2023
NAMESPACE: plex
STATUS: deployed
REVISION: 3
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  export POD_NAME=$(kubectl get pods --namespace plex -l "app=kube-plex,release=plex" -o jsonpath="{.items[0].metadata.name}")
  echo "Visit http://127.0.0.1:8080 to use your application"
  kubectl port-forward $POD_NAME 8080:

However, this is resulted in the pod being

stuck waiting for a volume to be created,
either by external provisioner “rancher.io/local-path”
or manually created by system administrator.

With no great motivation to get this to work, I decided to uninstall the chart and study the deployment options more closely to get one to work (as seen above).

$ helm uninstall -n plex plex
$ kubectl delete namespace plex

Migration

With both Plex servers working, albeit with only a small test library in the new one, the next goal is to migrate the whole database from the old stand-alone Plex server to the new one running in Kubernetes. The path to each server’s database is

• /home/depot/plexmediaserver/Library for the old stand-alone server.
• /home/k8s/plexmediaserver/Library for the new server in Kubernetes.

The plan is simple: stop both servers, move the new database away, copy the old one as the new one, start the new server only.

$ kubectl delete -f plex/plex-media-server.yaml
# systemctl stop plexmediaserver.service
# cd /home/k8s/plexmediaserver
# mv Library Library.backup
# cp -a /home/depot/plexmediaserver/Library .

Most Plex deployments mount the media a generic path (/data). If that had been the case above, the new server would not recognize the files as already scanned, since the library would only refer to files under the old path (/home/depot). If this was the case, it would be enough to update the mountPath value in line 181 in plex-media-server.yaml

        volumeMounts:
        - mountPath: /config
          name: plex-config
        - mountPath: /home/depot
          name: data

In addition to that, my deployment creates 2 separate PhysicalVolumes (and claims) because video files are in a separate disk:

        - mountPath: /home/depot
          name: data-depot
        - mountPath: /home/ssd/video
          name: data-video

Port forwarding

Normally Plex is able to establish the necessary port forwarding via UPnP, but in this case that doesn't seem to work. This may be because it's not the only Plex server in the nework, so because it's running in a Kubernetes cluster. Either way, the port forwarding rule can be added manually to the router and then Manually specify public port in the Plex settings under Settings > Remote Access.

Note

This step may require connecting directly to the web interface from the local network: 192.168.0.128:32400/web

Scheduled Tasks

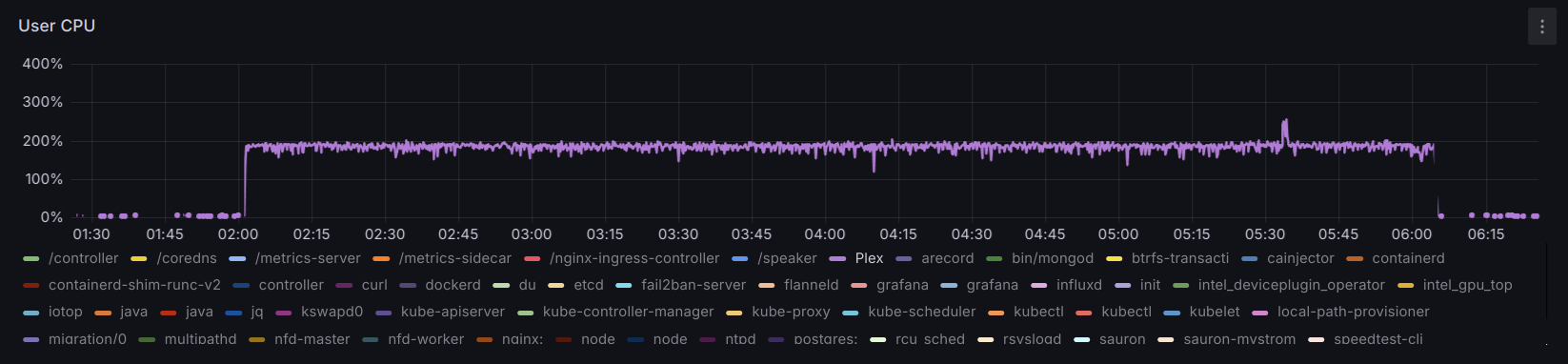

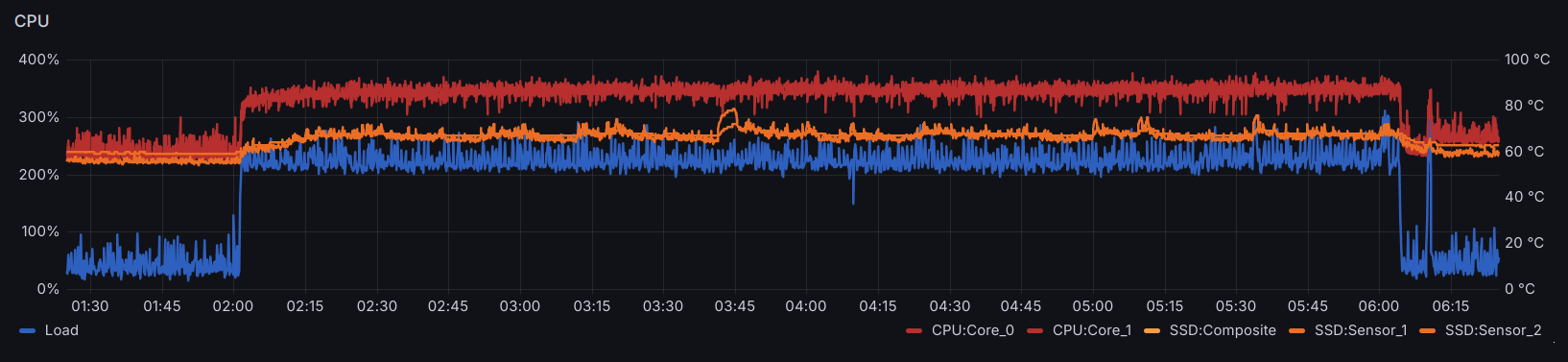

Normally Plex runs daily maintenance during the night, which is a good time. However, given the limited CPU in this server, even letting it run for 4 hours every day results in the CPU running quite hot for all that time:

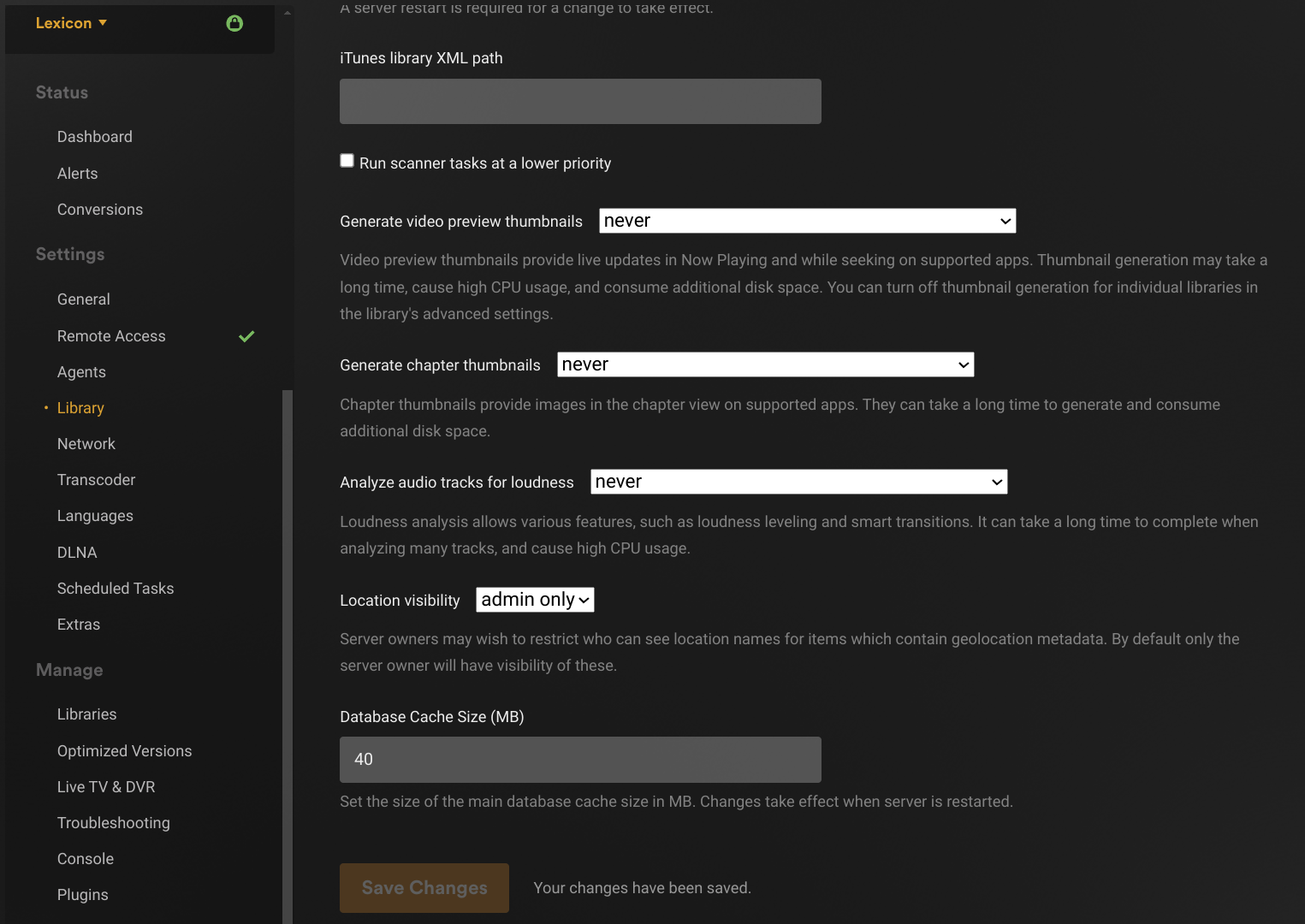

To get rid of this, I went to Settings > Server > Library to update Plex Library Settings and disable these which I don't really need, by setting their frequency to never:

• Generate chapter thumbnails seems relevant only for TV series, which I don't use (or care about).
• Analyze audio tracks for loudness is clearly called out as potentially CPU-intensive, and I don't think is useful for podcasts, where each episode is a single track, and most of the times one listens to a single one per "album". Even if this could be useful for audiobooks, it shouldn't be necessary given the rather high quality of their audio.

Epilogue

The migration had two critical requirements:

1. Not re-scanning the library again. Although I take care to make sure podcasts episodes have good ID3 v2 tags, adjusting them if necessary, Plex does not seem to understand them all that well all the time, often leading to a single podcast being split in 2 or 3 albums, authors showing as “Various Artists” despite correct ID3 tags, and a few other oddities. I spent time adjusting metadata in Plex and would hate to lose that work.
2. Preserve playlists. Catching up with over a dozen podcasts’ back catalogue is no small feat, specially since podcast apps (that I know of) do not make this particularly easy; they probably assume this is not what most users want. Here is where Plex comes in handy: it was not too hard to create a playlist, open a browser tab for each episode an add episodes in the right (release) order. Again, although easy, this was quite a bit of work I would hate to lose.

Note

I did consider creating the playlist programmatically, and may yet do it. One option would be to create an M3U playlist and import it into Plex using DocDocDocDocDoc/PlexPlaylistImporter; the as-of-yet open question is how to create that playlist.

The migration went smoothly and, I am happy to report, both goals where achieved. Here is my beloved Podcast collection:
